11.8.9

Reset

The reset button causes the system to perform a power cycle as if the unit had the
power removed and reapplied. The factory restore button causes the system to erase
all settings and restore factory defaults. It also erases the hot start data so that the
system is forced to perform a cold start.
11.8.10

Reference Position Offsets

The reference point offsets dialogue allows the user to adjust the point of
measurement away from its default position at the centre of the Spatial Dual unit. The
primary reference point offset applies to data from all ANPP packets as well as all
peripheral output such as NMEA and heave point 1. The heave points 2 to 4 allow the
user to offset reference points for the heave values 2 to 4 in the Heave Packet.

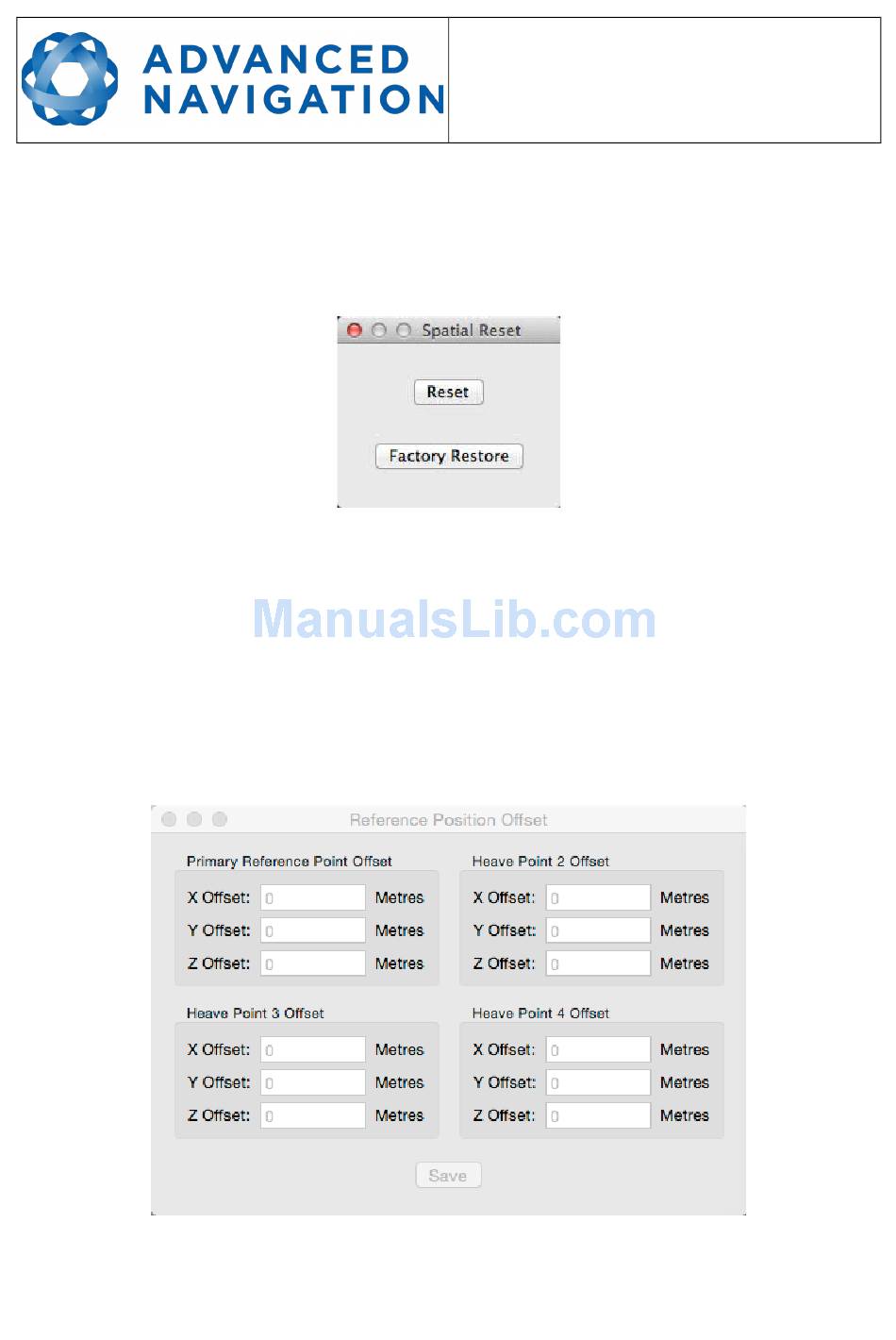

Illustration 51: Screenshot of Spatial Dual Manager reference
position offsets dialogue
Spatial Dual Reference Manual
Illustration 50:
Screenshot of Spatial
Dual Manager reset
dialogue
