8.8

Power Consumption

1000
900
800
700
600
500
400
300
200
100
0
5

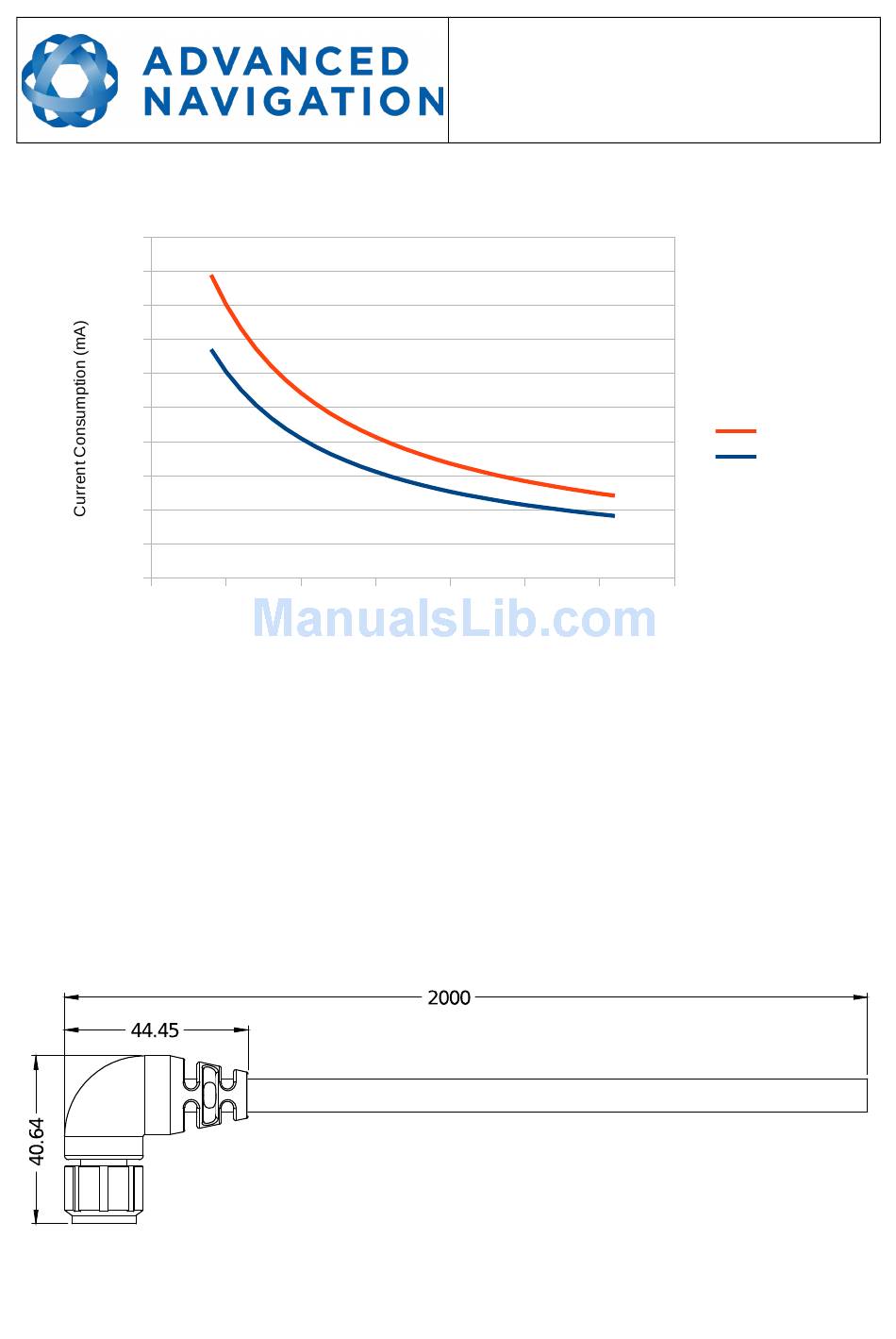

Illustration 11: Maximum and typical current consumption across operating voltage
8.9

Connector Pin-out

Power supply and signal connections are made through a 13 pin Glenair mighty mouse
series 801 connector. The Glenair part number is 801-007-16M8-13SA. The connector
provides a reliable and rugged connection to Spatial FOG under demanding conditions
and is rated to IP68 in the mated condition. Connection to Spatial FOG may be made
with the Spatial FOG evaluation cable harness, which provides a pre-terminated 2
metre cable assembly with all signals broken out to industry standard connectors, see
section 8.10. Advanced Navigation also supplies connectors with 2 metres of
unterminated cable, see Illustration 12. Custom lengths are available on request.
Illustration 12: Spatial FOG connector with 2 metres of unterminated cable
10 15 20
Voltage (V)
Spatial FOG Reference Manual
Page 30 of 144
Version 2.3
03/05/2018
25 30 35
Maximum
Typical
40
