6. Click the connect button in Spatial FOG Manager.
7. The various windows in Spatial FOG Manager can be used to view the real time
data.
8. If north seeking is being used for heading the unit must first obtain a GNSS fix,
it should then be left stationary for 5 minutes, then rotated approximately 90
degrees around the Z axis and left stationary for a further 5 minutes. The
rotations and dwell times should be repeated two more times. At this point the
heading will lock and the status view in Spatial FOG Manager will show that
heading has initialised. The North Seeking Status dialogue in Spatial FOG
Manager can be used to view the progress of the north seeking.
9. To view the data logs, click disconnect in Spatial FOG Manager. In the tools
menu, select log converter and press convert. The *.anpp binary log file will be
converted to CSV files that can be opened with popular data processing
programs such as Matlab or Microsoft Excel. The log files can be found in the
same folder as the Spatial FOG Manager software.
6.3

Antenna Survey Mount Assembly

The Antcom G5Ant-53A4T1 antenna included in the evaluation kit can either be
mounted to a panel or mounted to a standard 5/8"-11 survey mount thread with the
optional survey mount kit included in the evaluation kit. Please see Illustration 9 below
for assembly of antenna with the survey mount kit.

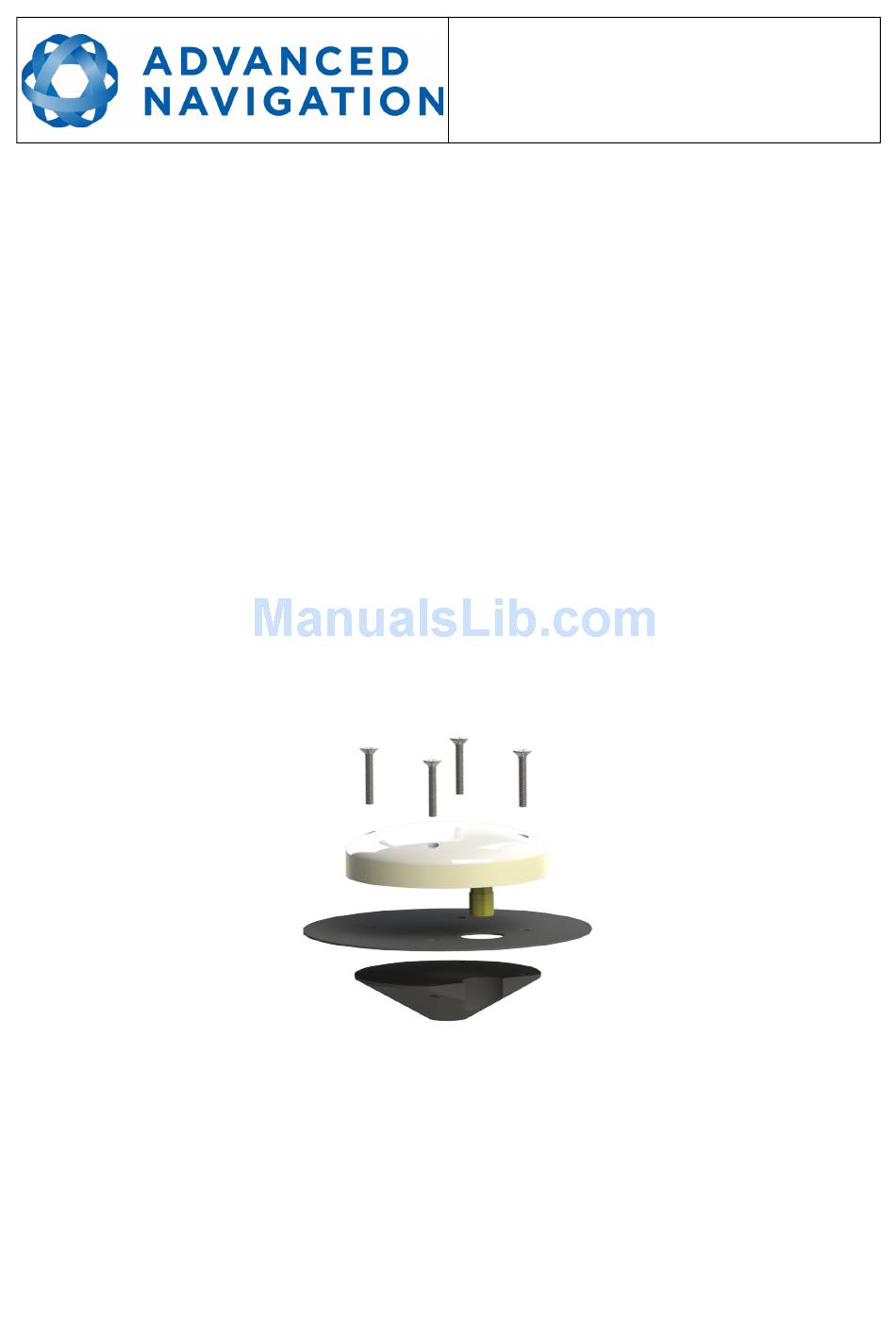

Illustration 9: Antenna survey
mount exploded view
