Port Configuration

Port Configuration is applied to change the setting of each port. In this confi-
guration function, you can set/reset the following functions. All of them are
described in detail below.

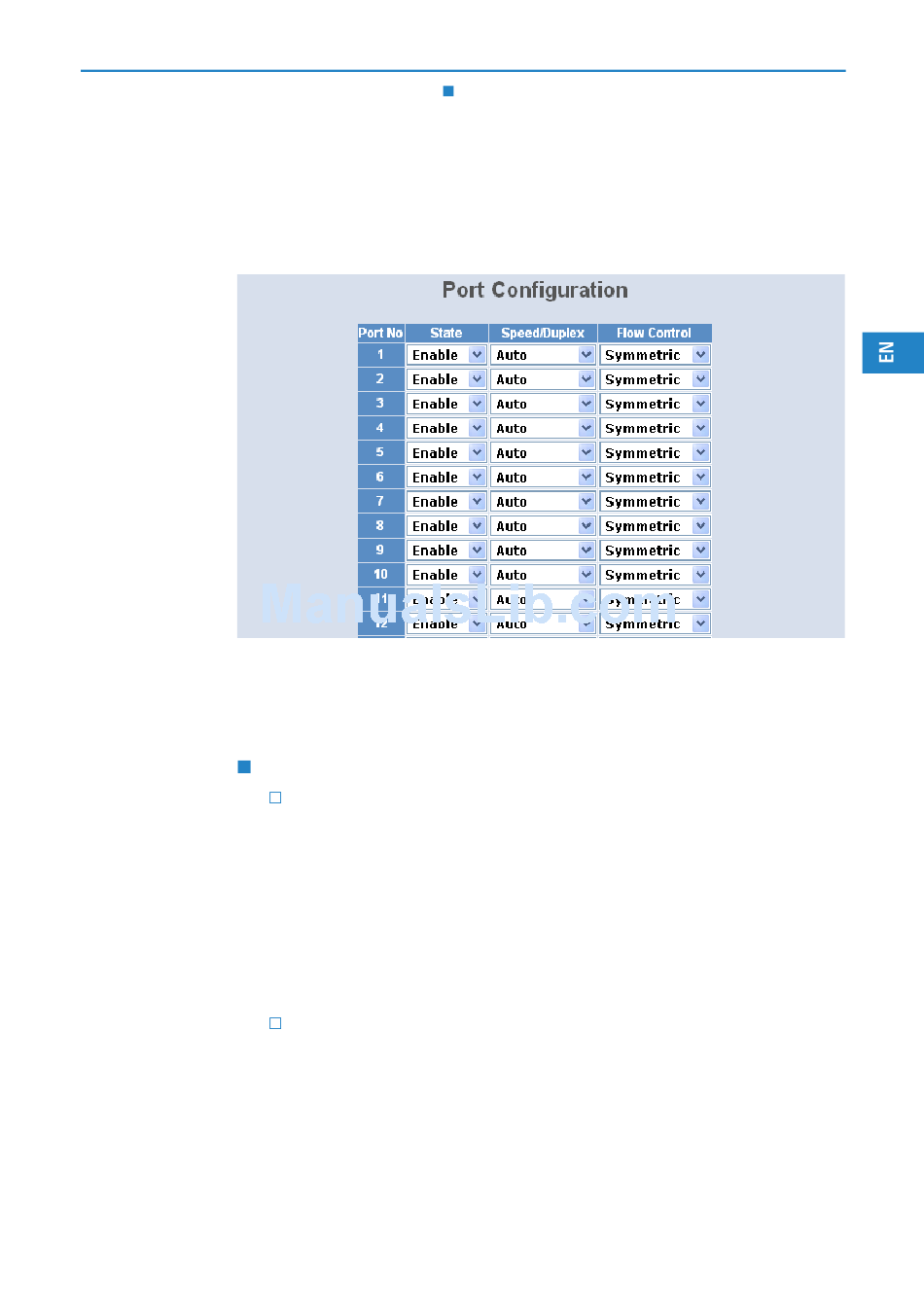

Port Configuration
It is used to set each port's operation mode. The switch supports 3 para-
meters for each port. They are State, Speed/Duplex and Flow Control.
Parameter:
State: Set the communication capability of the port is Enabled or
Disabled. When enabled, traffic can be transmitted and received via
this port. When disabled, the port is blocked and no traffic can be
transferred through this port. Port State is configurable by the user.
There are only two states "Enable" and "Disable" able to choose. If
you set a port's state "Disable", then that port is prohibited to pass
any traffic, even it looks Link up.
Default: Enable.
Speed/Duplex: Set the speed and duplex of the port. In speed, 10/
100Mbps baud rate is available for Fast Ethernet, Gigabit module in
port 25, 26. If the media is 1Gbps fiber, it is always 1000Mbps and
the duplex is full only. If the media is TP, the Speed/Duplex is compri-
sed of the combination of speed mode, 10/100/1000Mbps, and dup-
lex mode, full duplex and half duplex. The following table summarized
the function the media supports.
