LANCOM ES-2126+ and LANCOM ES-2126P+
Chapter 4: Operation of Web- based Management
In this device, there are clicking functions on the panel provided for the infor-
mation of the ports. These are very convenient functions for browsing the
information of a single port. When clicking the port on the front panel, an
information window for the port will be pop out.

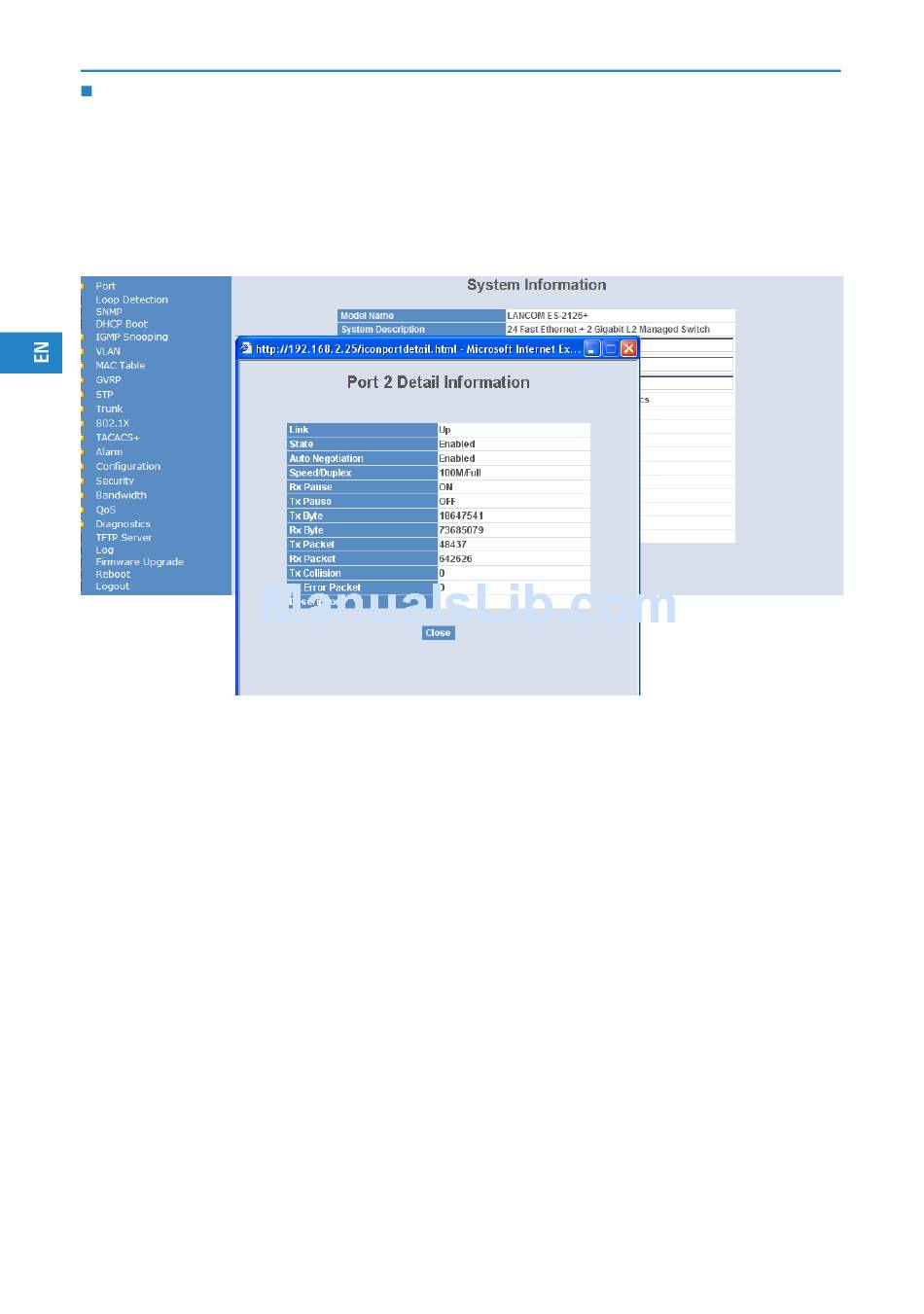

The figure shows the basic information of the clicked port. With this, you'll see
the information about the port status, traffic status and bandwidth rating for
egress and ingress respectively.
On the left-top corner, there is a pull-down list for Auto Logout. For the sake
of security, we provide auto-logout function to protect you from illegal user as
you are leaving. If you do not choose any selection in Auto Logout list, it
means you turn on the Auto Logout function and the system will be logged
out automatically when no action on the device 3 minutes later. If OFF is cho-
sen, the screen will keep as it is. Default is ON.
On the left side, the main menu tree for web is listed in the page. They are
hierarchical menu. Open the function folder, a sub-menu will be shown. The
functions of each folder are described in its corresponded section respectively.
When clicking it, the function is performed. The following list is the full func-
tion tree for web user interface.
32
