Chapter 3: Configuring and monitoring the LANCOM switch
Apart from the status, LANmonitor displays the VLAN ID for each port and the
detected data rate at active ports connected to active network devices.
3.3.2

Port PoE status

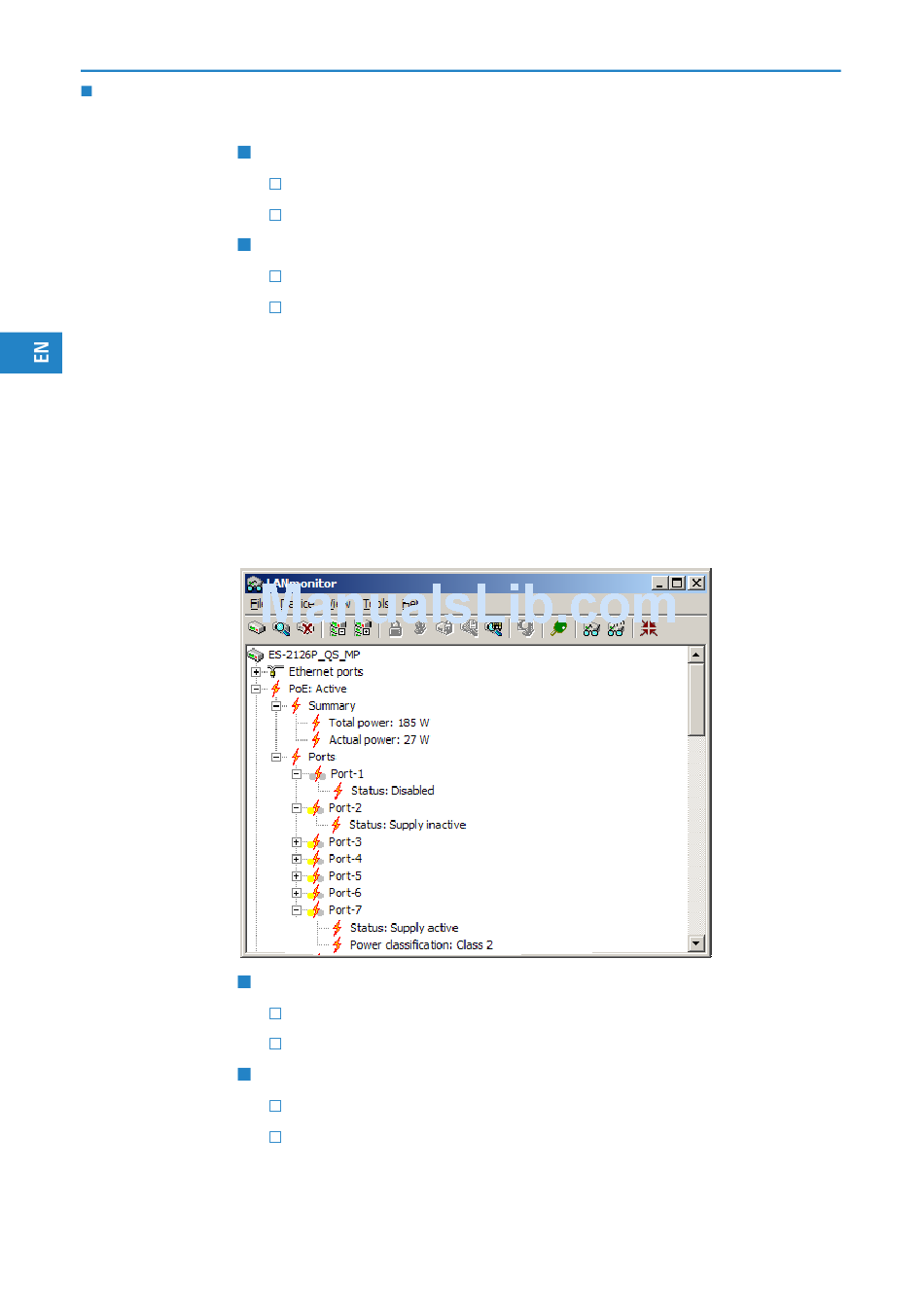

LANmonitor displays the current PoE status of all of the device's ports. This
includes the state configured by the admin (PoE enabled or disabled) and the
current power feed to connected devices. Each port is displayed with two
colored symbols in LANmonitor:
28
The left icon shows the config state:
Gray: The port is deactivated in the configuration
Yellow: The port is activated in the configuration
The right-hand icon shows the link state:
Gray: No active network device is connected to the port
Green: A network device is connected to the port and active
The left icon shows the PoE configuration:
Gray: PoE feed for the port is deactivated in the configuration
Yellow: PoE feed for the port is activated in the configuration
The right-hand icon shows the current power feed.
Gray: No PoE-powered device is connected to this port
Green: A PoE-powered device is connected to this port and is being
fed with power
