LANCOM ES-2126+ and LANCOM ES-2126P+
Chapter 2: Installation
¶
FDX Constant green when the LED mode is set to "Full-Duplex".
º
SPD Constant green when the LED mode is set to "Speed".
¾
Button to switch the LEDmode between -"Active", "Full-Duplex" and "Speed".
LEDSET
µ
Reset Button to re-start the system.
¸
FX Constant green when the optical port is active. Off when the TP port is active.
Port 25 and 26
2.3.3

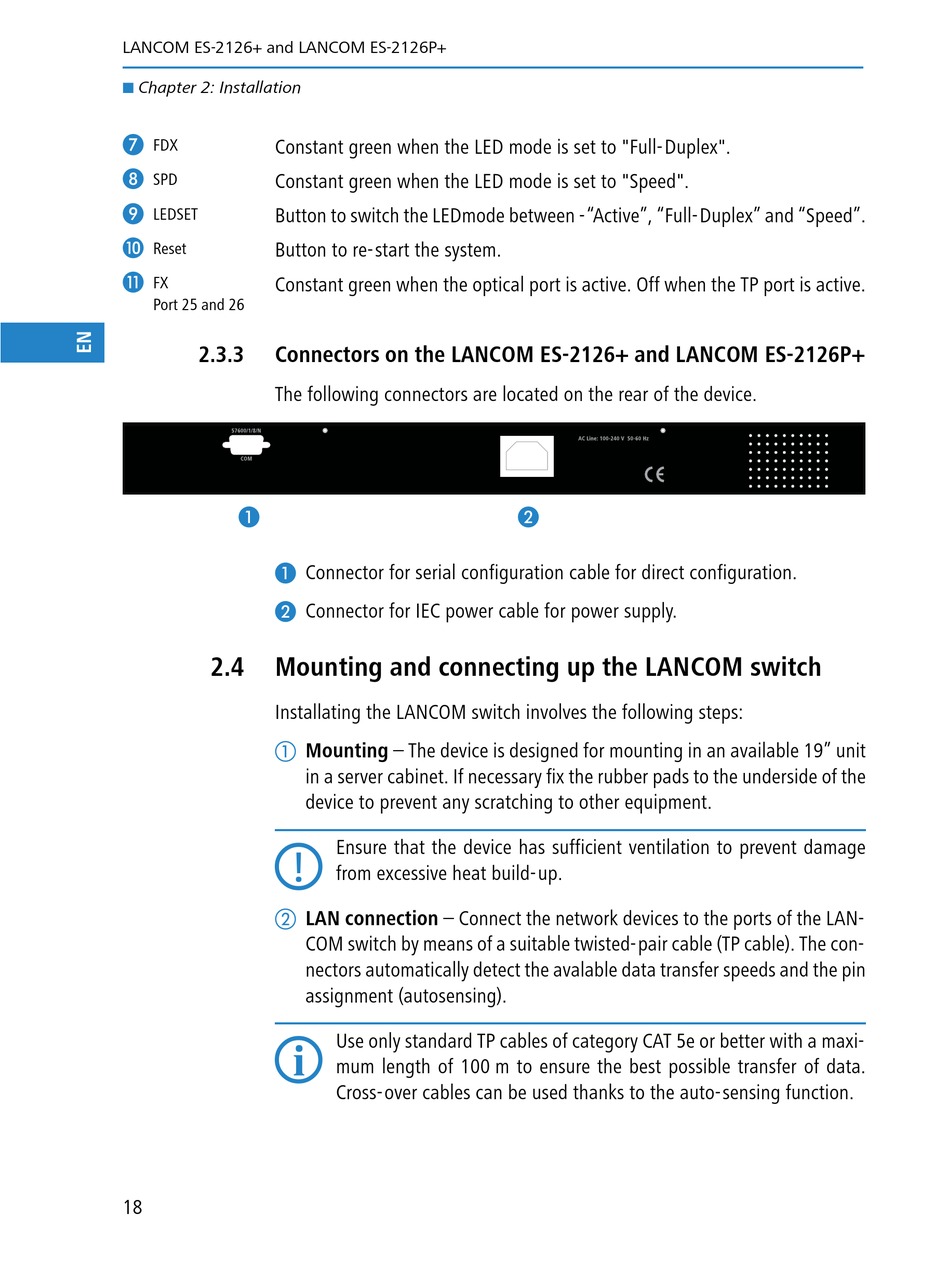

Connectors on the LANCOM ES-2126+ and LANCOM ES-2126P+

The following connectors are located on the rear of the device.
³
³
·
2.4

Mounting and connecting up the LANCOM switch

Installating the LANCOM switch involves the following steps:


18
Connector for serial configuration cable for direct configuration.
Connector for IEC power cable for power supply.
Mounting – The device is designed for mounting in an available 19" unit
in a server cabinet. If necessary fix the rubber pads to the underside of the
device to prevent any scratching to other equipment.
Ensure that the device has sufficient ventilation to prevent damage
from excessive heat build-up.
LAN connection – Connect the network devices to the ports of the LAN-
COM switch by means of a suitable twisted-pair cable (TP cable). The con-
nectors automatically detect the avalable data transfer speeds and the pin
assignment (autosensing).
Use only standard TP cables of category CAT 5e or better with a maxi-
mum length of 100 m to ensure the best possible transfer of data.
Cross-over cables can be used thanks to the auto-sensing function.
·
