4.17

Bandwidth Management

4.17.1

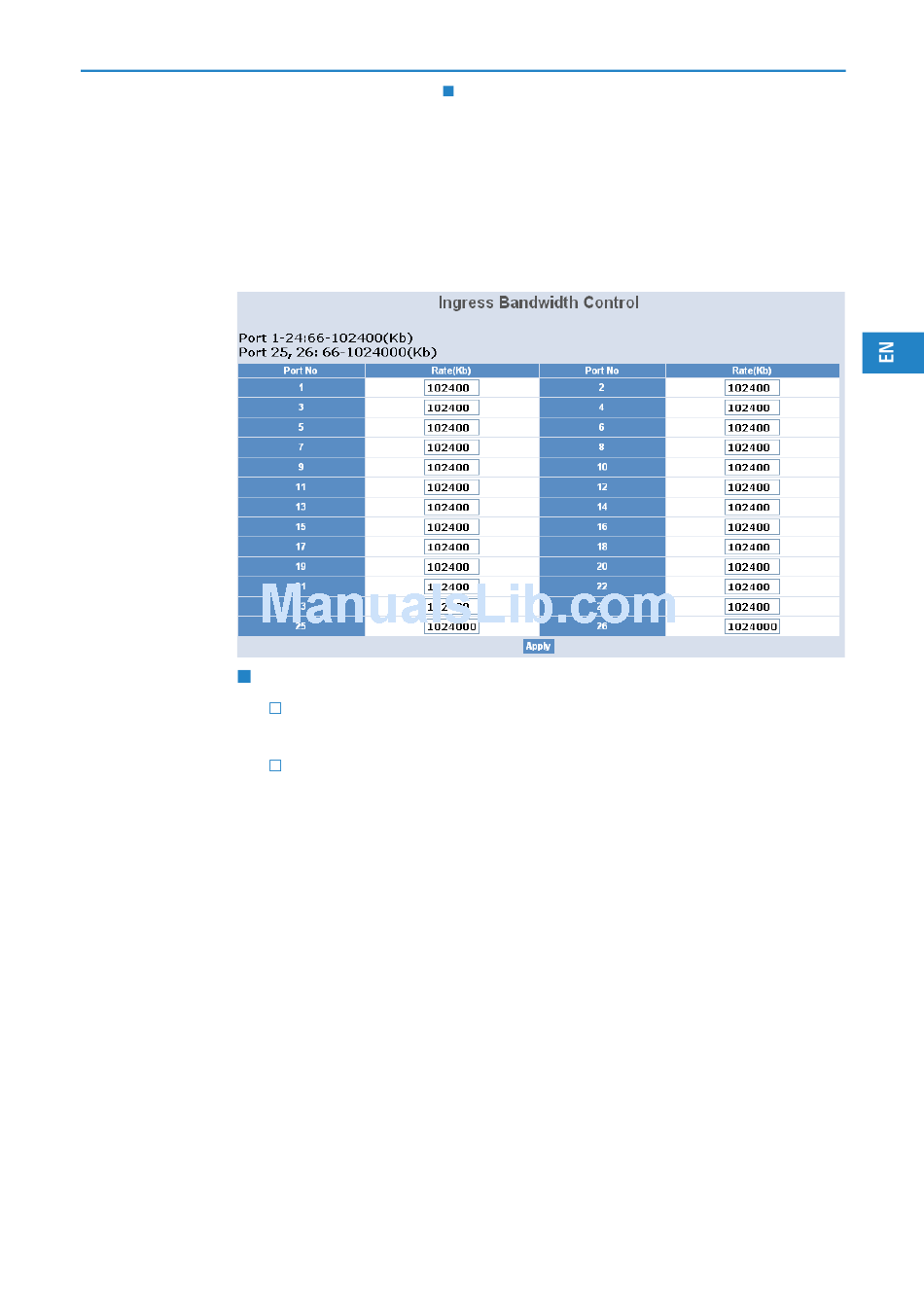

Ingress Bandwidth Setting

Ingress Bandwidth Setting function is used to set up the limit of Ingress band-
width for each port.
Parameter Description:
Port No.: Choose the port that you would like this function to work on
it. Valid range of the port is 1~26.
Rate: Set up the limit of Ingress bandwidth for the port you choose.
Incoming traffic will be discarded if the rate exceeds the value you set
up in Data Rate field. Pause frames are also generated if flow control
is enabled. The format of the packet limits to unicast, broadcast and
multicast. Valid value of Port 1~24 ranges from 66~102400, and Port
25~26 ranges from 66~1024000 with the minimum unit of 1. Default
value of Port 1~24 is 102400 and Port 25~26 is 1024000.
