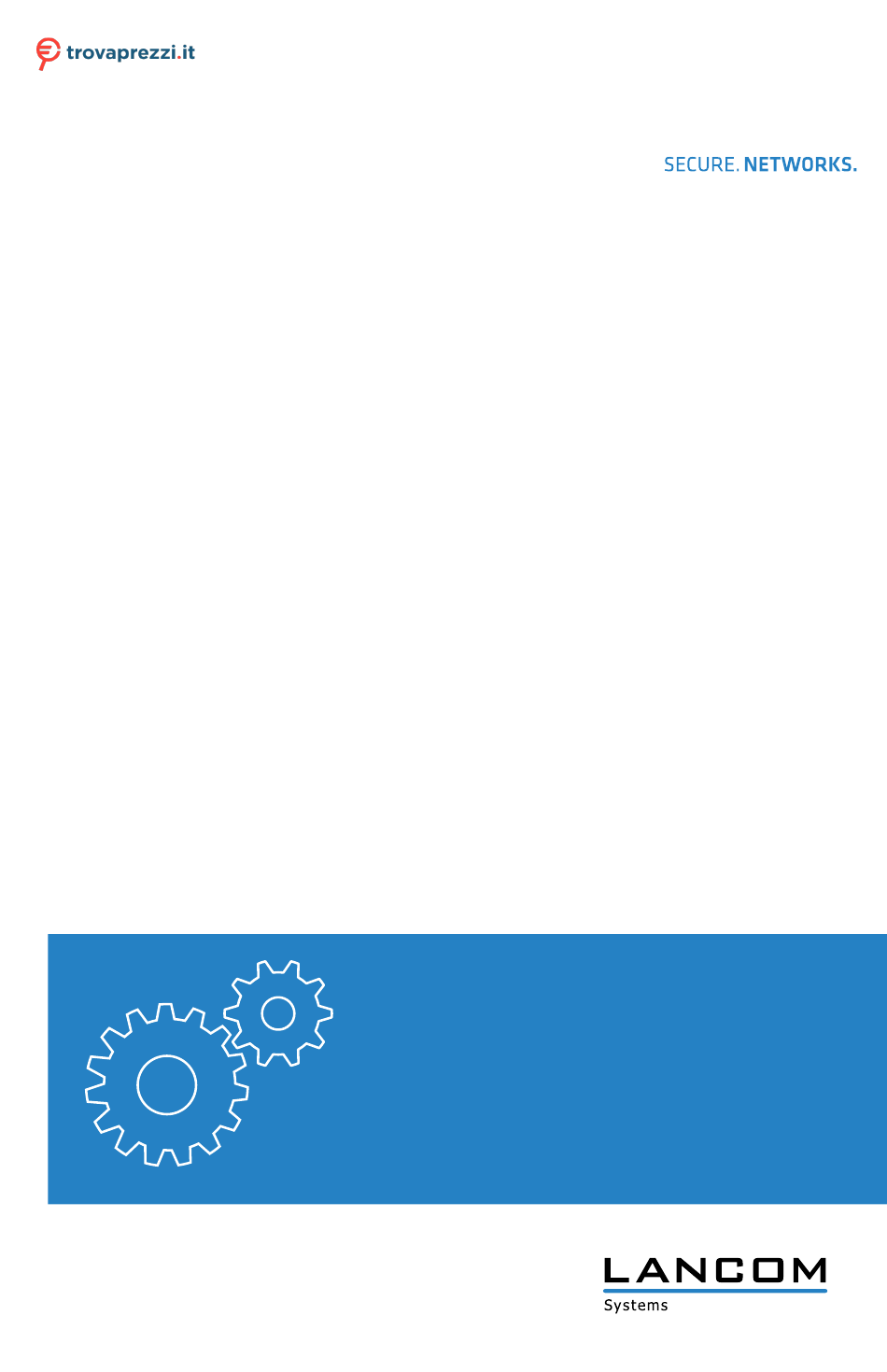

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Lancom GS-3528X cerca il tuo prodotto tra le migliori offerte di Switch LANCOM Switches Installation Guide...
- Page 2 The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from LANCOM Systems. We reserve the right to make any alterations that arise as the result of technical development.
-
Page 3: Switch Architecture
LANCOM Installation Guide – Introduction Introduction Overview LANCOM switches are the foundation for a reliable infrastructure. These switches deliver multiple intelligent features for improving the availability of your critical business applications, protecting your data, and optimizing your network bandwidth to deliver information and applications more effectively. -
Page 4: Network Management
This port can be used for connecting a null-modem cable to a PC for configuration and monitoring purposes. A LANCOM switch automatically contacts the LMC for 24 hours after startup (boot / reset) to successfully terminate the coupling. - Page 5 Before commissioning the device, be sure to study the Quick Reference Guide supplied with the hardware. These can also be downloaded from the LANCOM website (www.lancom-systems.com). Any warranty and liability claims against LANCOM Systems are excluded following any usage other than the intended use described below. Environment...
-
Page 6: Power Supply
LANCOM Installation Guide – Safety instructions and intended use Power supply Please observe the following before installation, as improper use can lead to personal injury and damage to property, as well as voiding the warranty: A Use only the power adapter / IEC power cable mentioned in the Quick Reference Guide. -
Page 7: General Safety
LANCOM Installation Guide – Safety instructions and intended use A The devices with their respective software are not designed, intended or certified for use in: the operation of weapons, weapons systems, nuclear facilities, mass transportation, autonomous vehicles, aircraft, life support computers or equipment (including resuscitators and... -
Page 8: Installation
LANCOM Installation Guide – Installation Installation For safe and secure installation of your LANCOM device, please observe the safety instructions and intended use. Selecting a site The switch can be mounted in a standard 19-inch equipment rack or on a flat surface. Be sure to follow the guidelines below when choosing a location. -
Page 9: Ethernet Cabling
A Safe connections with no damaged cables, connectors or shields Package content and accessories Before beginning with the installation, please check that nothing is missing from your package. Along with the LANCOM switch the box should contain the following accessories: A Power cord A 19’’... - Page 10 A LAN connection – Connect the network devices to the ports of the LANCOM switch by means of a suitable twisted-pair cable (TP cable). The connectors automatically detect the available data transfer speeds and the pin assignment (autosensing).
- Page 11 LANCOM Installation Guide – Installation A Supply power – Supply power to the device by means of the IEC power cable and/or an external power supply unit (model dependent). A Ready for operation? – After a brief self-test, the power or system LED lights up continuously.
- Page 12 This configuraton option (for websmart- and managed switches) is only available if you have network access to the device’s IP address from your computer. A Via a graphical user interface in a browser (LANCOM Management Cloud – LMC): This configuration option (only for managed switches) is only available if you have network access and both your device for configuration and the switch have a connection to the LANCOM Management Cloud.
- Page 13 (e. g. LANconfig) or via DHCP server. If the DHCP server is a LANCOM device, the IP address of the LANCOM switch can be read out from the DHCP table. If this is the case, the LANCOM switch can be accessed from any network computer that receives its IP address from the same DHCP server.
- Page 14 If you have purchased a LANCOM switch that was shipped with LCOS SX (formerly LANCOM Switch OS) 3.30 or later – i.e. it is already “Cloud-ready” – all you have to do is simply add the device to a project in the LANCOM Management Cloud (Public).
- Page 15 A Cloud PIN for integration into the LANCOM Management Cloud (Public) is available for all switches delivered with LCOS SX (formerly LANCOM Switch OS) 3.30 or later. If you have a device without a Cloud PIN, you can also use an activation code to register the de-...
- Page 16 LANCOM Installation Guide – Configuration Integration into the LMC by LMC Rollout Assistant The Rollout Assistant is a web application. It uses a device equipped with a camera and Internet access, such as a smartphone, tablet or notebook, to read the serial number and PIN. It offers an extremely easy way to connect the device to the LMC.
- Page 17 LANCOM Installation Guide – Configuration this. You scan the serial number either on the underside of the device or alternatively from the barcode on the packaging box. Otherwise, you can enter the serial number manually. Next, scan the cloud PIN from the information sheet enclosed with the device.
- Page 18 This method uses LANconfig and just a few steps to integrate one or more LANCOM devices simultaneously into the LANCOM Management Cloud. Create an activation code In the LANCOM Management Cloud, open the Devices view and click Add new device. In the following window, click the link No serial number and PIN available?.
- Page 19 OK. If you copied an activation code to the Clipboard, it is automatically entered into the field. Once the device is paired with the LANCOM Management Cloud, it is available in the project for further configuration.
- Page 20 If you do not know the IP address of the managed switch, you can use the command line interface via a serial connection. A Use the serial configuration cable to connect the LANCOM switch to the configuration computer (see “Mounting and connecting the LANCOM switch”).
- Page 21 If you have further questions please send us your query via our portal: www.lancom-systems.com/service-support/ Online support is free of charge at LANCOM. Our experts will respond as quickly as possible. Firmware The latest firmwares and documentation for all Switch products can be downloaded free of charge from the download section on our website: www.lancom-systems.com/downloads/...
- Page 22 Within the EU all LANCOM Systems products come with a voluntary manufacturer warranty. The warranty period depends on the device type: A 2 years for all LANCOM unmanaged and websmart switches as well as accessories A 3 years for all LANCOM routers, gateways, WLAN controllers, access points, and R&S...
- Page 23 LANCOM Installation Guide – LANCOM Service & Support Options for your individual requirements LANCOM offers individually tailored value-added services according to your needs. Little money provides best protection for your investment. Warranty extensions for additional safeguarding for your devices: www.lancom-systems.com/warranty-options/...
