Chapter 4: Operation of Web- based Management
port and link partner in "Auto Speed" mode or 2) user setting in
"Force" mode. The local port has to be preset its capability.
In port 1 – 24, they are supported Fast Ethernet with TP media only,
so the result will show 100M/Full or 100M/Half, 10M/Full and 10M/
Half duplex.
In port 25 and port 26, if the media is 1000Mbps with TP media, it
will show the combinations of 10/100M and Full/Half duplex,
1000Mbps and Full duplex only. If the media is 1000Mbps with fiber
media, it will show only 1000M/Full duplex.
Default: None, depends on the result of the negotiation.
Rx Pause: The way that the port adopts to process the PAUSE frame.
If it shows "on", the port will care the PAUSE frame; otherwise, the
port will ignore the PAUSE frame.
Default: None
Tx Pause: It decides that whether the port transmits the PAUSE frame
or not. If it shows "on", the port will send PAUSE frame; otherwise,
the port will not send the PAUSE frame.
Default: None.

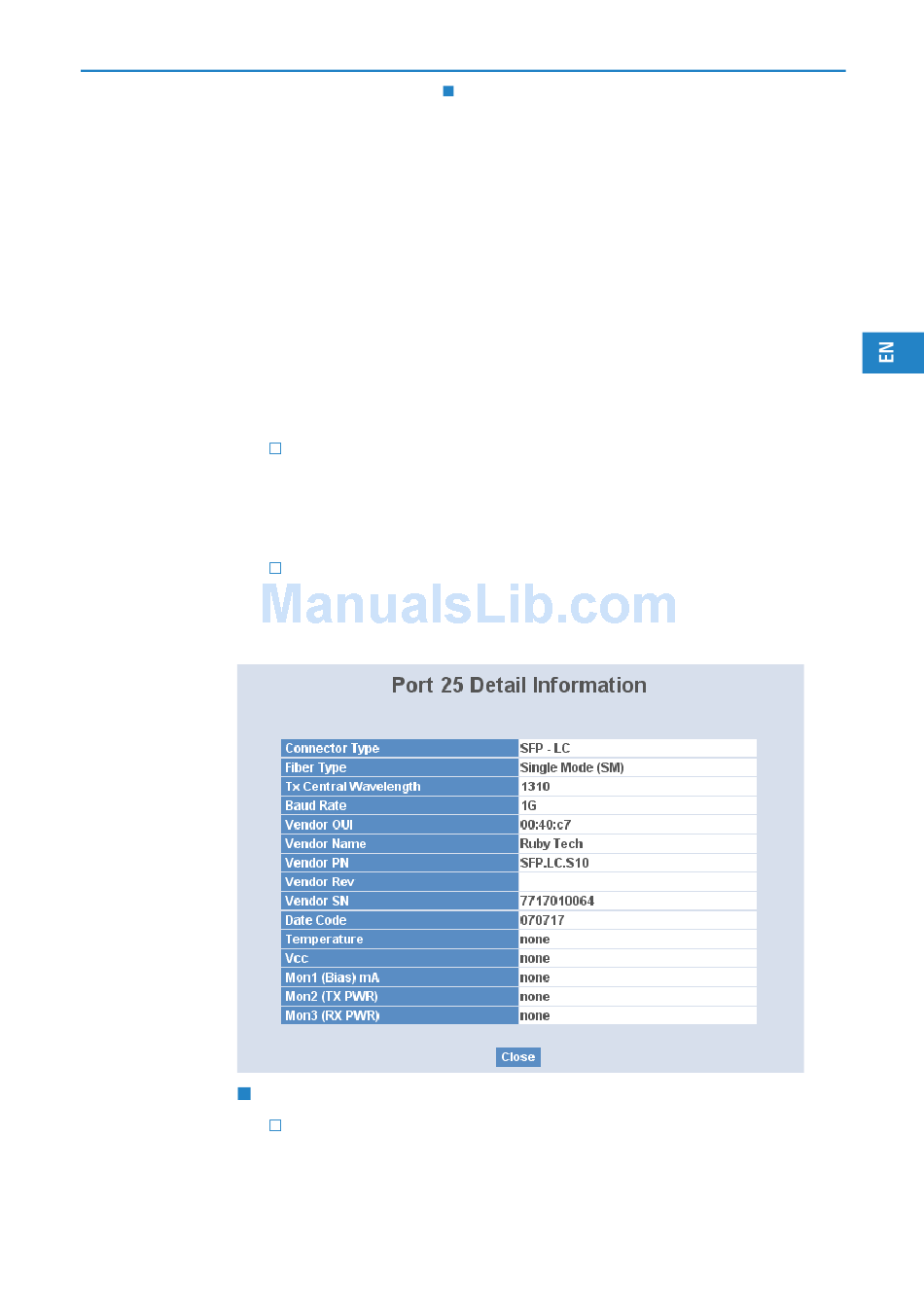

Details about SFP ports:
Connector Type:
Displays the connector type, for instance, UTP, SC, ST, LC and so on.
47
