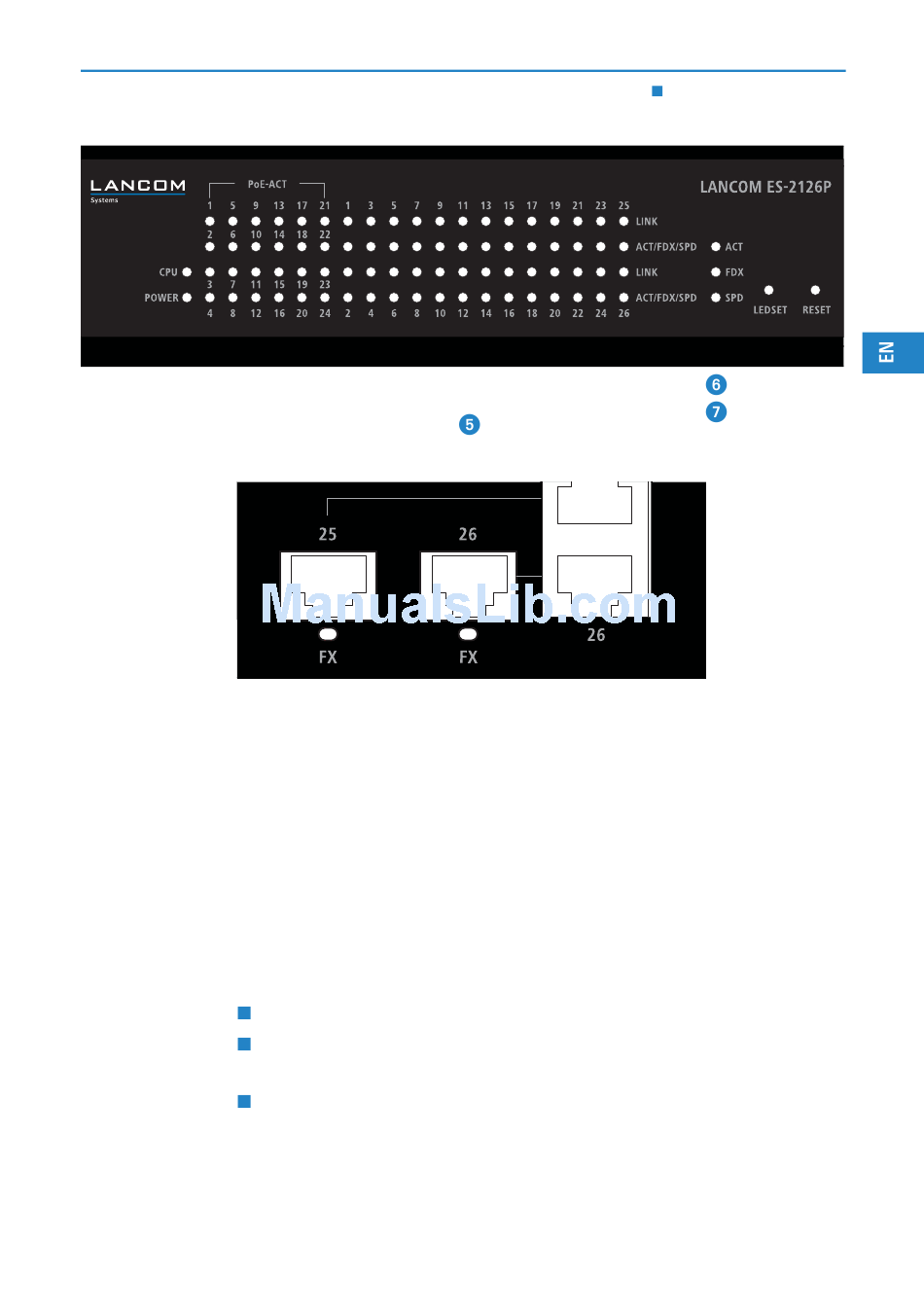

CPU RUN Blinks green if the CPU is running without problem.
·
PWR Power LED: Constant green when power is supplied to the device.
»
PoE-ACT Constant green when the device connected to this port is powered via PoE.
¿
LINK Constant green when the network connection is established to the connected
Port 1 to 24
device. Off if no network connection can be established to the connected
device.
´
ACT/FDX/SPD This LED displays the following information depending on the selected LED
Port 1 to 24
status:
²
ACT Constant green when the LED mode is set to "Active".
¸
LED mode "Active": Blinks yellow during data transfer.
LED mode "Full-Duplex": Constant green when full-duplex mode is active
for this port; blinks yellow in case of collisions.
LED mode "Speed": Constant yellow when the 100 Mbps mode is active.
Off when the 10 Mbps mode is active.
