General Troubleshooting

Sensor Tests

Exit Sensor
4-20
Warning
Allow the Fuser to cool down before starting the procedure.
1. Enter Service Mode (page 4-5).
2. Open the Front Cover.
3. Perform the Exit Sensor test:

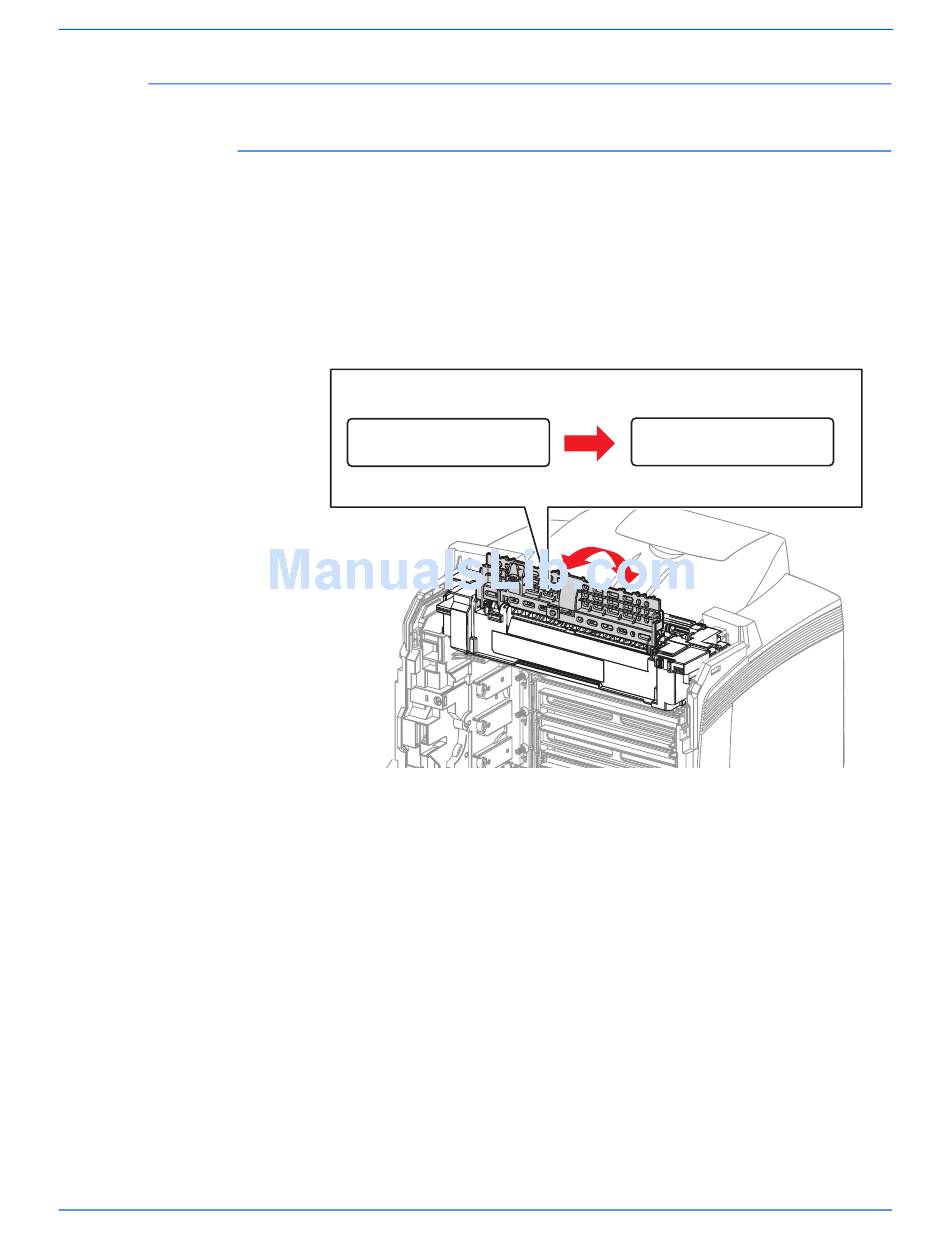

4. Move the Sensor up and down and check the information on the Control
Panel display. The Low and High values change from 0 up 99.
Control Panel
Exit Sensor
L-0
5. Press the Cancel button to stop the Exit Sensor test.
Engine Diag > Sensor Test
Normal
Exit Sensor
H-0
Phaser 6130 Color Laser Printer Service Manual
> Exit Sensor.
