3 Accessing the Camera Browser Interface

Once the device's proper IP address has been identified, type the IP into a web browser URL bar (Microsoft
Internet Explorer/Edge required for ActiveX control) to view the camera's browser interface and video
stream images, configure image settings, configure VCA rules, etc...

3.1 Logging In to the Camera

Upon entering the device IP address into your browser URL bar, a login prompt similar to the example
below will deploy (appearance will vary depending on PC operating system, browser version, etc...). The
default username and password is admin/12345.
After successfully clearing the first login attempt, a connection will be made between your system and
the camera. A second login sequence will be required to access the camera's VIGIL web interface. If this
is the first time initializing access to the camera on your current PC system, an ActiveX control installation
pop up may deploy. ActiveX is required for viewing video in the browser.

ACTIVEX INSTALLATION

Steps:
1). When the browser asks to install the
AxUMF software, click Install to proceed.
2). When the setup installation pop-up
window appears, click Install to proceed
with rest of installation.
NOTE:
Depending on system OS and Internet Explorer version, installation experience may differ from one
another. Figures described above are from Windows 7, Internet Explorer 9 environment.
Upon completion, the camera's web/browser interface will be fully accessible for video viewing and
settings configuration.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
VIGIL Software v8.8 User Manual | VISIX V-Series All-in-One Cameras

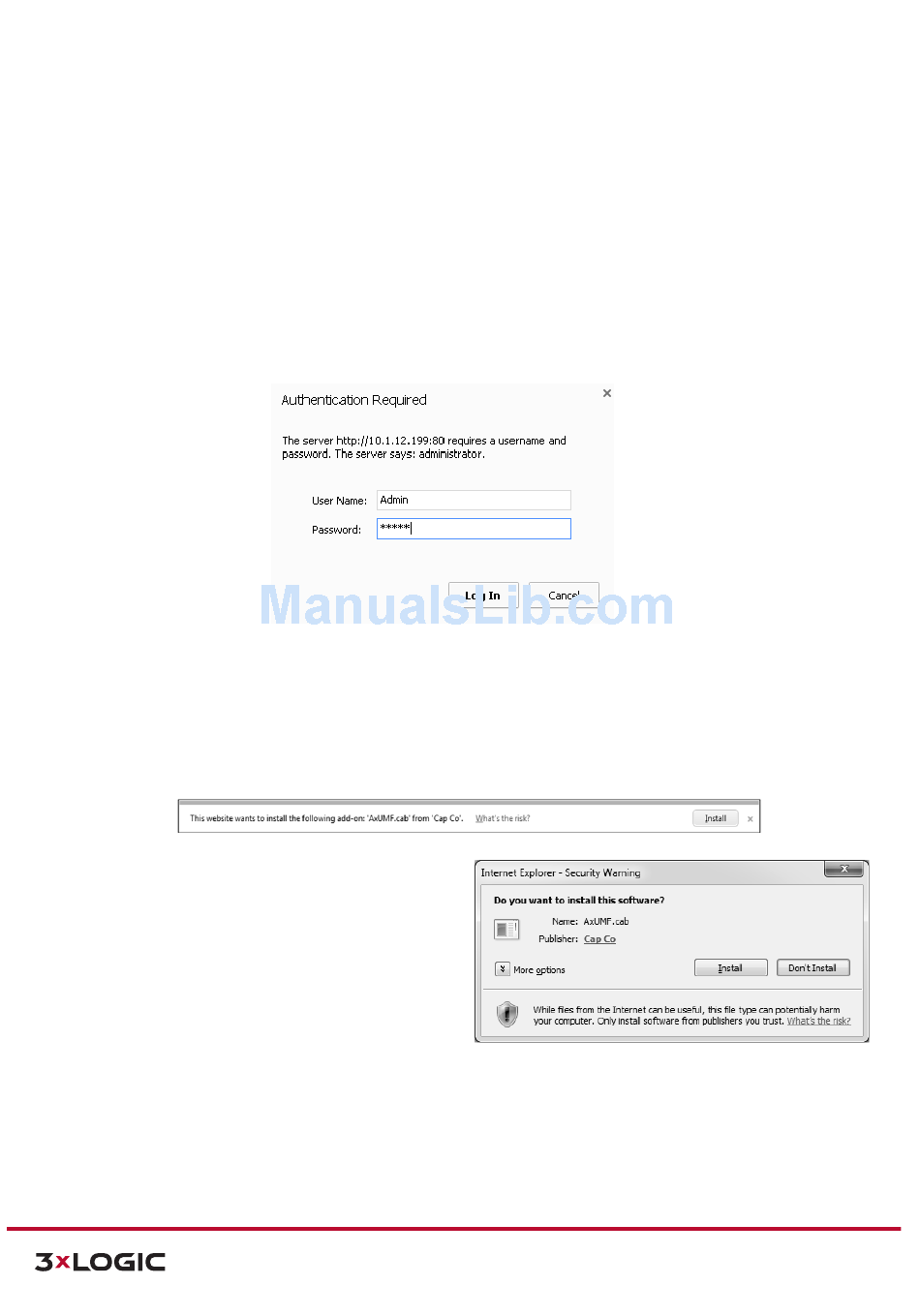

Figure 3-1: Camera Login
Figure 3-2: ActiveX (AxUMF.cab) Installation
