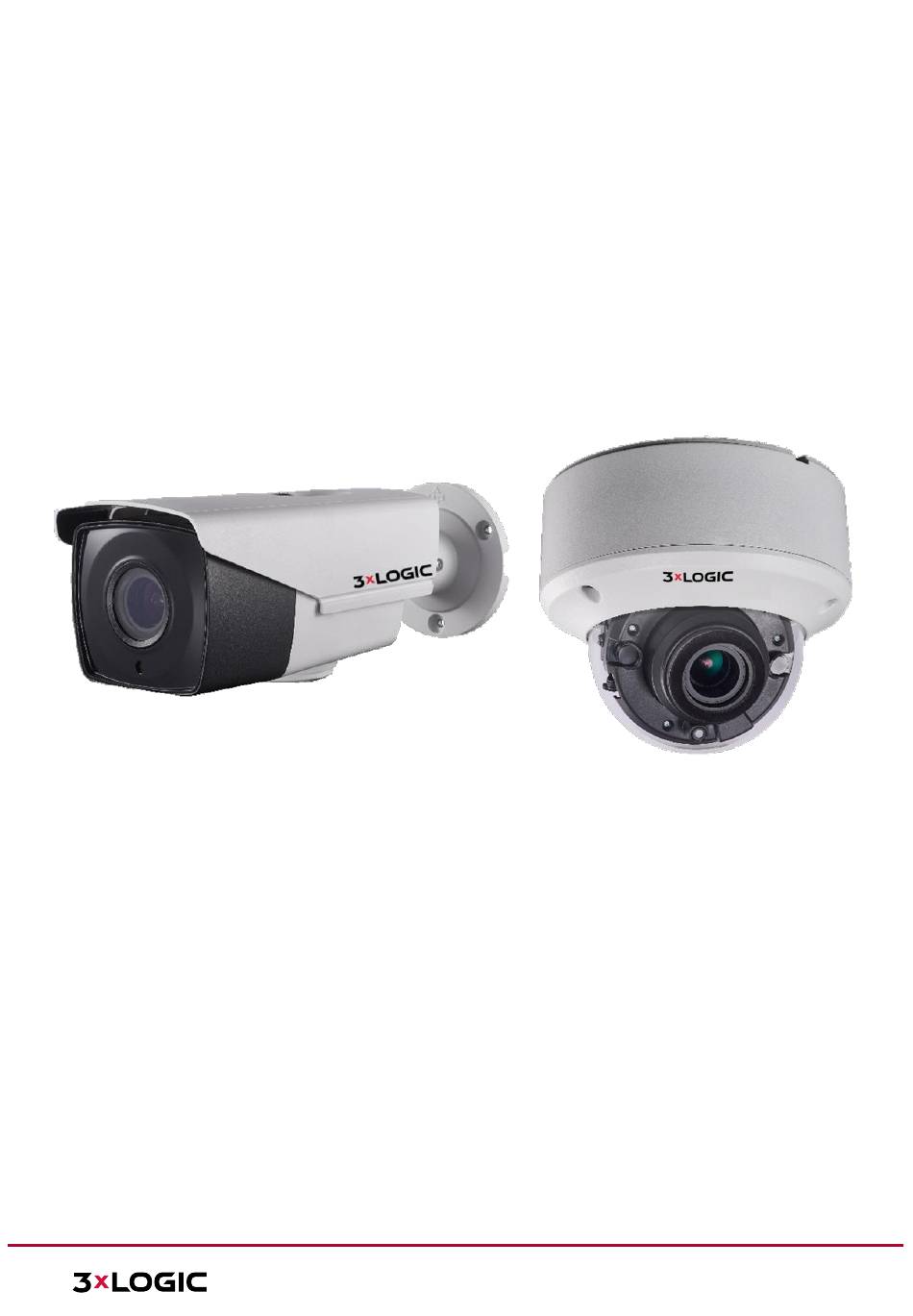

- Page 1 VISIX Solutions | VX-2MD-OD-RIWH / VX-2MD-OD-RIWH 2MP HD Analog Cameras - User Manual V1.2 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
- Page 2 UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.” 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
- Page 3 (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information, see: www.recyclethis.info 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
- Page 4 If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.) 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
- Page 5 The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS. Fasten the dome cover to camera body so that the foam ring and the dome cover are attached seamlessly. 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 6: Table Of Contents
WB (White Balance) ......................15 3.4.3 DAY-NIGHT .......................... 16 3.4.4 VIDEO SETTING ........................16 3.4.5 RESET ........................... 17 3.4.6 SAVE &EXIT .......................... 17 4 IR REFLECTION PREVENTION ......................18 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 7: Introduction
Video Cable Cables Lens Model I Cables Auxiliary Video Output Photoconductive DC 12V Resistance Menu Button Power Cord Video Cable Model II Cables Overview of VA-2MB-OD-RIWH Bullet Camera 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 8: Overview Of Va 2Md-Od-Riwh Dome Camera
Base Plate Video Cable Lock Screw Overview of VA-2MD-OD-RIWH Dome Camera 1.3.2 VA-2MD-OD-RIWH – MOUNTS - VX-PM-140 PENDANT MOUNT 83.5 6-M4深8 Unit ： mm VX-PM-140 – Pendant Mount 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 9: Va-2Md-Od-Riwh - Mounts - Vx-Wm-140 Wall Mount
VISIX SOLUTIONS | VISIX 2MP HD ANALOG CAMERAS - USER MANUAL 1.3.3 VA-2MD-OD-RIWH – MOUNTS – VX-WM-140 WALL MOUNT 83.5 6-M4深8 85.7 Unit ： mm VX-WM-140 WALL MOUNT 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 10: Installation
Drill Template 2. Route the cables through the cable hole. 3. Secure the camera to the ceiling with the supplied screws. 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... - Page 11 Tighten the screw after completing the adjustment. Pan Position Range [0°-360°] P Screw T Screw Tilt Position Range [0°-90°] R Screw Rotation Position Range [0°-360°] 3-axis Adjustment 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 12: Installation Of Vx-2Md-Od-Riwh Dome Camera
Fix the mounting base to the ceiling/wall with screws. Route the cables through the cable hole and connect the corresponding cables. Install the main body to the mounting plate and insert the clip plate. 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... - Page 13 Adjust the camera according to Figure 2-7 to get obtain the optimum angle. Pan Position Range [0°-360°] Tilt Position Range [0°-75°] Rotation Position Range [0°-360°] 3-axis Adjustment 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 14: Menu Description
3.4.1 AE (AUTO EXPOSURE) AE settings pertain to brightness-related parameters. You can adjust the image brightness by adjusting the BRIGHTNESS, EXPOSURE MODE, and GAIN settings depending on environmental light conditions. 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 15: Wb (White Balance)
MWB: You can set the R GAIN/B GAIN value from 0 to 255 to adjust the shades of red/blue color inthe image. M W B MODE R GAIN B GAIN RETURN MWB Mode 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 16: Day-Night
This helps to deliver more accurate and sharper image quality. You can set the DNR value from 1 to 10. 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 17: Reset
3.4.5 RESET Reset all settings to factory default. 3.4.6 SAVE &EXIT Move the cursor to SAVE &EXIT and press OK to save the settings and exit the menu. 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 18: Ir Reflection Prevention
IR LEDS. Fasten the dome cover to camera body so that the foam ring and the dome cover are attached seamlessly. 12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
