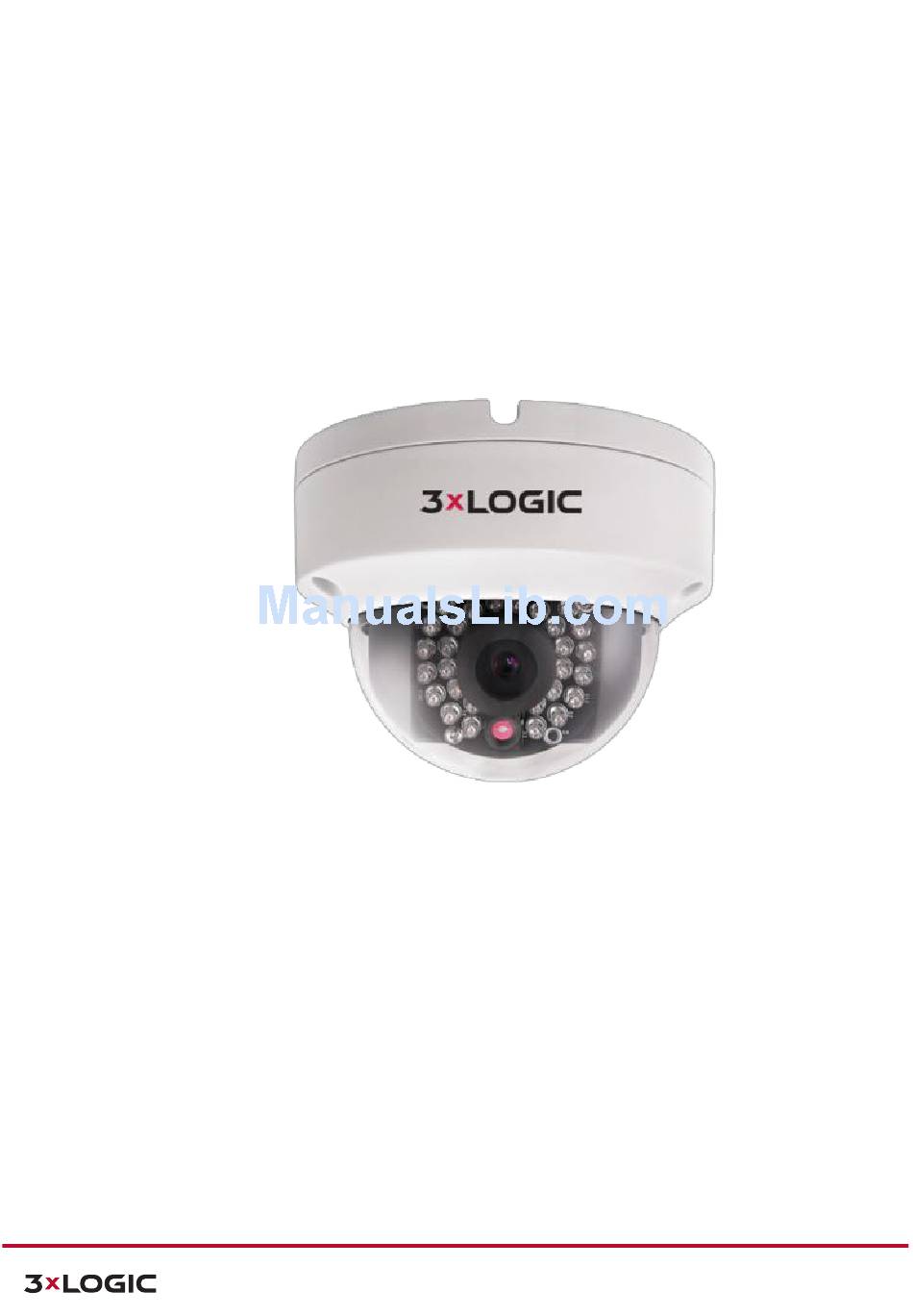

- Page 1 V-Series Camera Quick Start Guide | VX-2V28-OD-I VISIX V-Series All-in-One Camera – Gen II VX-4V28-OD-I Quick Start Guide v01-2017 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 2: Table Of Contents
ONITORING AND IEWING DDING A ERIES AMERA TO LIENT LOGIC V II M EMOTE ONITORING AND IEWING DDING A ERIES AMERA TO OBILE NDROID AND OS) 10 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC... -
Page 3: Camera Overview
Press and hold RESET for 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc. 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC... -
Page 4: Installation
Hole A: for cables routed through the ceiling screw hole 1: for Mounting Base 2. Loosen the set screws with a hex key (supplied) to remove the bubble. Remove the Bubble Figure 1-3 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC... - Page 5 As the lens has already been factory adjusted to the best image, you just need to adjust the panning position and tilting position to get the desired surveillance angle. 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 6: Installation - Micro Sd Card
Bubble Reinstallation Figure 1-7 INSTALLATION — MICRO SD CARD Steps: 7. Loosen the lock screws on the bubble to disassemble the camera. Disassemble the Camera Figure 1-8 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC... - Page 7 (Optional) Push the inserted Micro SD card inside, and the Micro SD card will be sprung out. Insert the Micro SD Card Figure 1-9 Re-install the bubble and tighten the lock screws. Install the Bubble Cover Figure 1-10 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 8: Camera Setup
(requires DHCP) cannot be used to configure the camera. A laptop connected to the same network as the camera will be required to discover the camera and assign a valid IP address using the 3xLOGIC All-in-One PC Setup. -
Page 9: Remote Monitoring And Viewing - Adding A V-Series Camera To Vigil Client
5. Click Test VIGIL Connect to confirm the camera can be communicated with through the Connect system using the provided alias. Skip this step if using traditional network connection criteria (IP/Port). Adding V-Series Camera to VIGIL Client Figure 2-1 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC... -
Page 10: Remote Monitoring And Viewing - Adding A V-Series Camera To
Mobile (Android and iOS) Steps: 1. To interface a V-Series camera with 3xLOGIC’s View Lite II mobile app, launch the View Lite II app on your mobile device (Android OS is pictured in the below screenshot, however, the process is identical in the iOS version). - Page 11 7. Fill in the remaining required fields and tap Save to save the V-Seies camera to View Lite II. A user may now add the camera stream to the View Lite viewer using the same process as adding VIGIL Server, VCM or 3xCLOUD networked cameras. . 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC...
- Page 12 Toll Free: 877.3xLOGIC www.3xlogic.com © 2017 3xLOGIC Inc. All rights reserved. Information in this document is subject to change without notice. 3xLOGIC and the 3xLOGIC logo are trademarks of 3xLOGIC, Inc. all other trademarks are property of their respective owners.
