PGM-FI SYSTEM
PCM/ECM
4-34

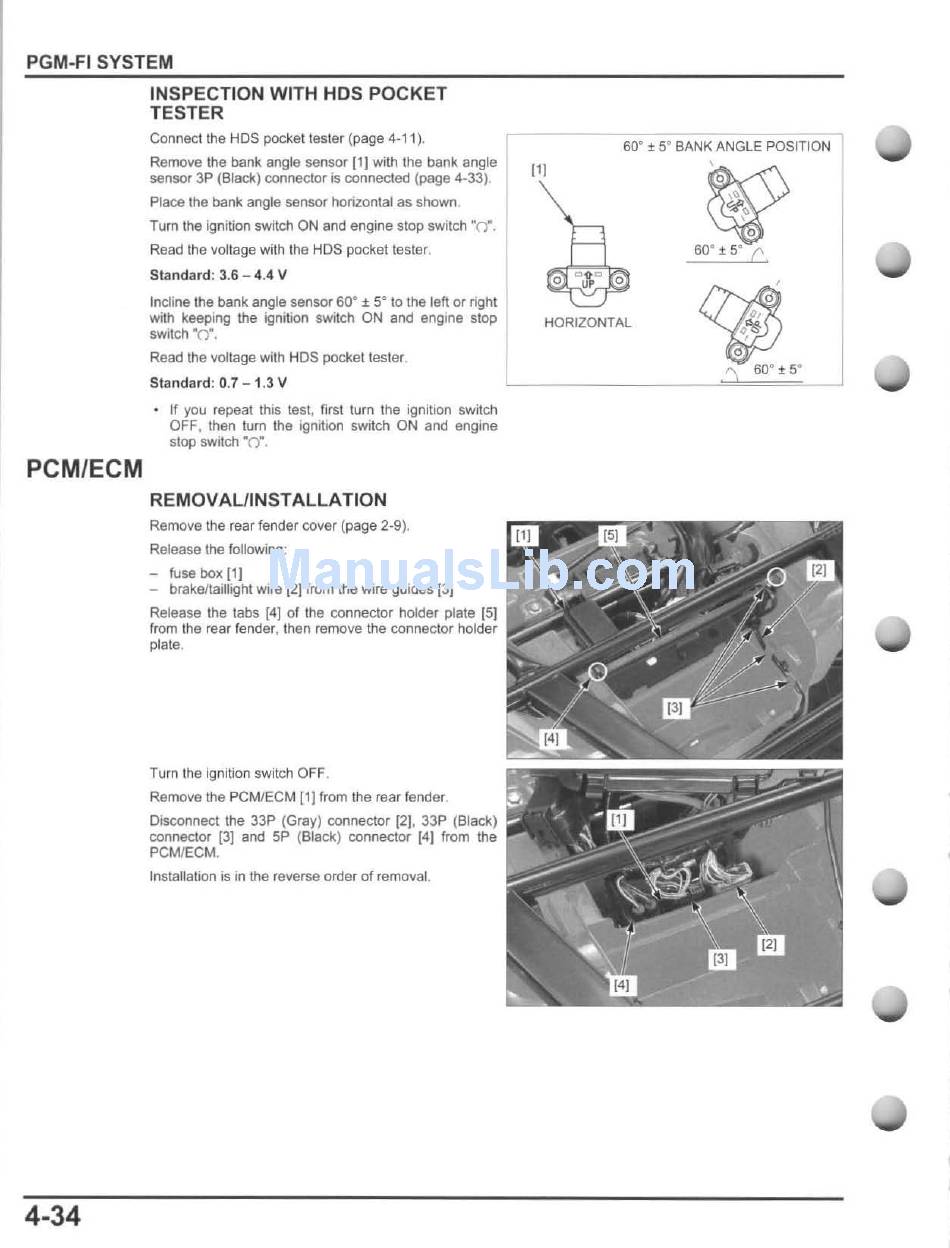

INSPECTION WITH HOS POCKET
TESTER
Connect the HOS pocket tester (page 4.11).
Remove the bank angle sensor [1) with the bank angle
sensor
3P
(Black) connector is connected (page 4-33).
Place the bank angle sensor horizontal as shown .
Turn the ignition switch ON and engine stop switch ·0·,
Read the vollage with the HOS pocket tester.
Standard : 3.6 - 4.4 V
Incline the bank angle sensor 60· ± 5° to the left or right
with keeping the ignilion switch ON and engine slop
switch -0 · ,
Read the voltage with HOS pocket lester.
Standard : 0.7 - 1.3 V
If you repeat this test, first turn the ignition switch
OFF, then tum the ignition switch ON and engine
stop switch ·0·.
REMOVALIINSTALLATION
Remove the rear fender cover (page 2-9),
Release the following :
-
fuse box (I]
-
brake/taillight wire [2) from the wire guides (3]
Release the tabs (4J of the connector holder plate [SJ
from the rear fender, then remove the connector holder
plate.
Turn the ignition switch OFF.
Remove the PCM/ECM
[11
from the rear fender,
Disconnect the 33P (Gray) connector [2J, 33P (Black)
connector (3J and SP (Black) connector (4] from the
PCM/ECM.
Installation is in the reverse order of removal.
60· ± S· BANK ANGLE POSITION
[11
HORIZONTAL
'ii' .
,
60· ±
5°
f'
" \ I
60. ± 50
