FUEL LINE INSPECTION /
_ __________ C_R_A_N_K_C_A_S_E_V_EN_T_I_LA_T_IO __ N_H_O_S_E_IN_S_P_E_C_T_IO_N_/ __
IAINDSJPI~I
EXHAUST SYSTEM INSPECTION. _
~ _
3-29

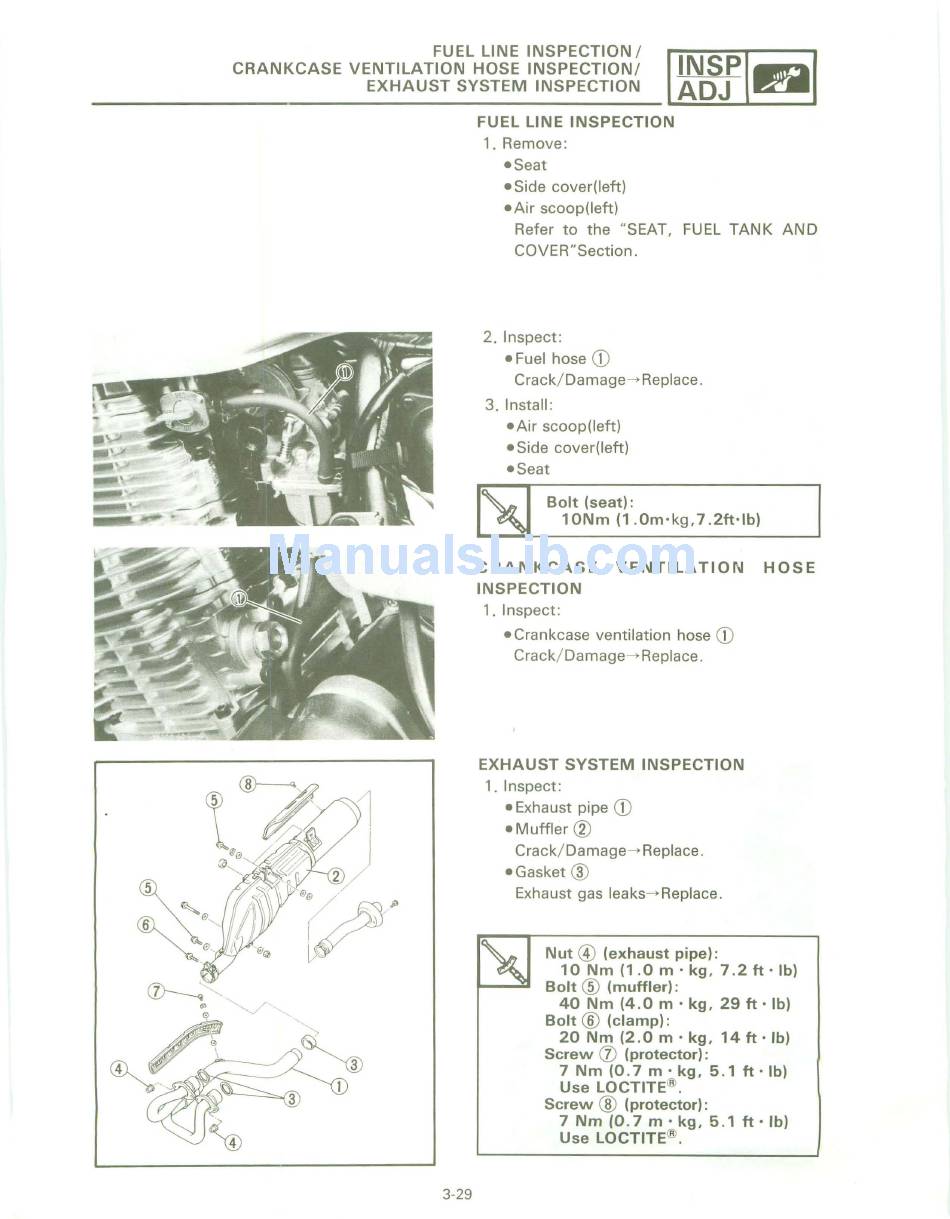

FUEL LINE INSPECTION
1. Remove:
-Seat
- Side cover(left)
-Air scoop(left)
Refer to the "SEAT, FUEL TANK AND
COVER"Section.
2. Inspect:
- Fuel hose
CD
Crack/Damage--> Replace.
3. Install:
-Air scoop(left)
- Side cover(left)
-Seat
Bolt (seat):
10Nm (1 .Om-kg, 7 .2ft-lb)
CRAN KCASE VENTI
LATIOr~
HOSE
INSPECTION
1. Inspect:
-Crankcase ventilation hose
CD
Crack/ Damage--> Replace.
EXHAUST SYSTEM INSPECTION
1. Inspect:
- Exhaust pipe
CD
-Muffler
®
Crack/Damage--> Replace.
-Gasket
@
Exhaust gas leaks-->Replace.
Nut
®
(exhaust pipe):
10 Nm (1.0 m - kg, 7.2 ft - Ib)
Bolt
®
(muffler):
40 Nm (4.0 m - kg, 29 ft - Ib)
Bolt
®
(clamp):
20 Nm (2.0 m - kg, 14 ft - Ib)
Screw
(J)
(protector):
7 Nm (0.7 m - kg, 5.1 ft -Ib)
Use LOCTITE@.
Screw
®
(protector):
7 Nm (0.7 m - kg, 5.1 ft -Ib)
Use LOCTITE@.
