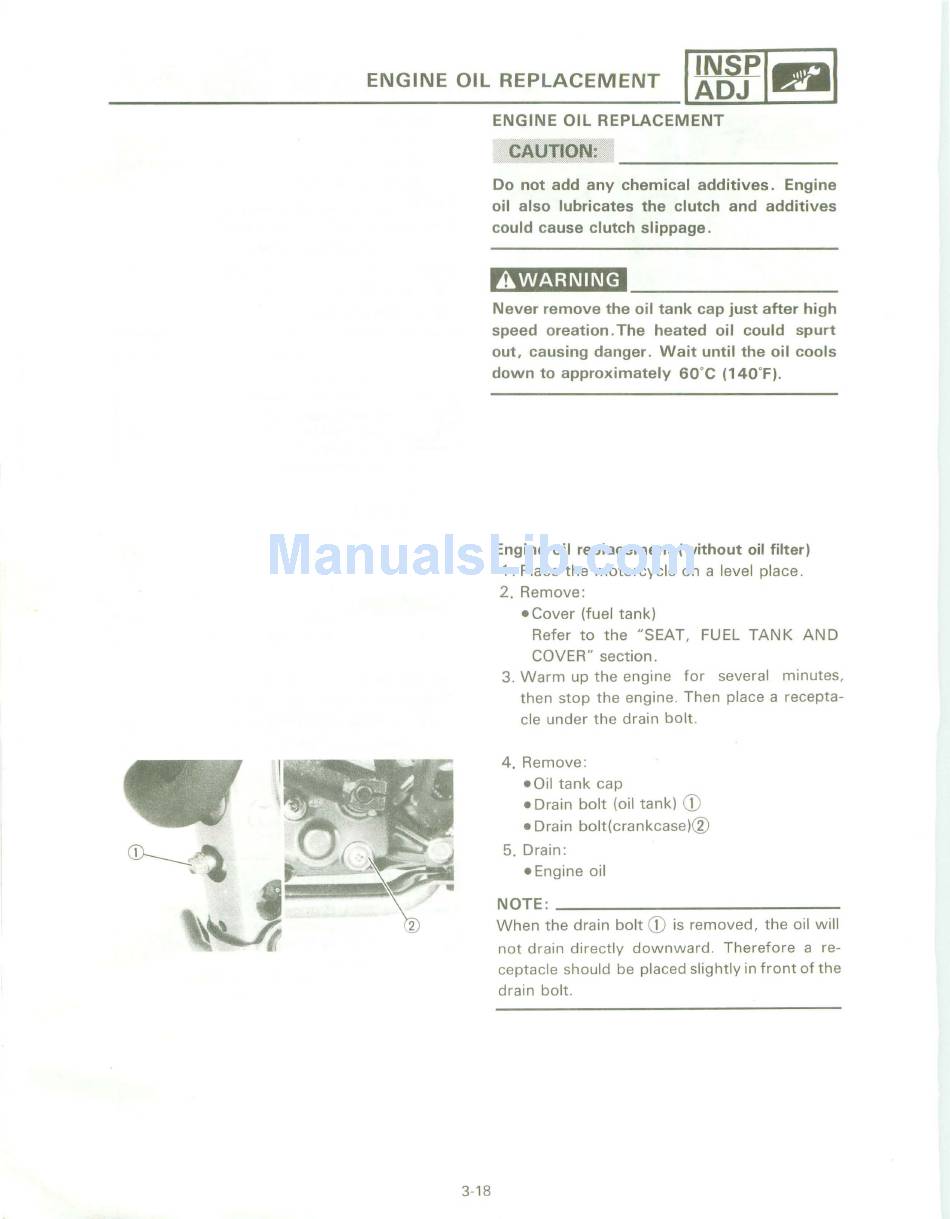

ENGINE OIL REPLACEMENT
1~8JIRI
ENGINE OIL REPLACEMENT
3-18
Do not add any chemical additives. Engine
oil also lubricates the clutch and additives
could cause clutch slippage.
AWARNING
Never remove the oil tank cap just after high
speed oreation. The heated oil could spurt
out, causing danger. Wait until the oil cools
down to approximately 60°C (140°F).
Engine oil replacement (without oil filter)
1 . Place the motorcycle on a level place.
2. Remove:
- Cover (fuel tank)
Refer to the "SEAT, FUEL TANK AND
COVER" section.
3. Warm up the engine for several minutes,
then stop the engine. Then place a recepta-
cle under the drain bolt.
4. Remove:
-Oil tank cap
- Drain bolt (oil tank)
CD
- Drain bolt(crankcase)@
5. Drain :
-Engine oil
NOTE: ________________________ _
When the drain bolt
CD
is removed, the oil will
not drain directly downward. Therefore a re-
ceptacle should be placed slightly in front of the
drain bolt.
