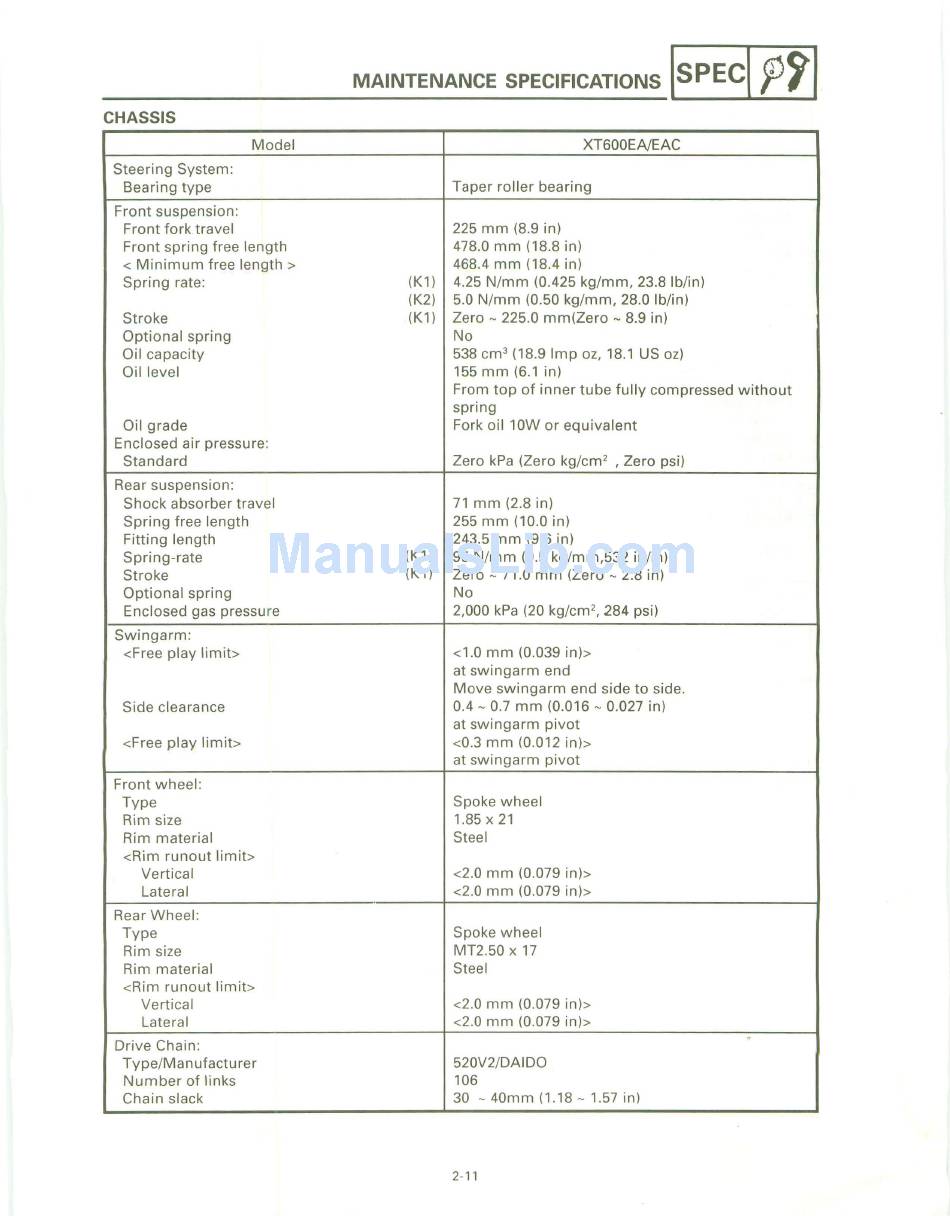

MAINTENANCE SPECIFICATIONS
ISPEC\
P?I
CHASSIS
Model XT600EA/EAC
Steering System :
Bearing type
Taper roller bearing
Front suspension :
Front fork travel
225 mm (8.9 in)
Front spring free length
478.0 mm (18.8 in)
< Minimum free length >
468.4 mm (18.4 in)
Spring rate:
(K1 ) 4.25 N/mm (0.425 kg/mm, 23.8 Ib/in)
(K2) 5.0 N/mm (0.50 kg/mm, 28.0 Ib/in)
Stroke
(K1)
Zero - 225.0 mm(Zero - 8.9 in)
Optional spring No
Oil capacity
538 cm 3 (18.9 Imp oz, 18.1 US oz)
Oil level
155 mm (6.1 in)
From top of inner tube fully compressed without
spring
Oil grade
Fork oil 10W or equivalent
Enclosed air pressure :
Standard
Zero kPa (Zero kg/cm 2 ,Zero psi)
Rear suspension :
Shock absorber travel
71 mm (2 .8 in)
Spring free length
255 mm (10 .0 in)
Fitting length
243.5 mm (9 .6 in)
Spring-rate
(K1)
95 N/mm (9 .5 kg/mm,532 ib/in)
Stroke
(K1)
Zero - 71.0 mm (Zero - 2.8 in)
Optional spring No
Enclosed gas pressu re 2,000 kPa (20 kg/cm
2
,
284 psi)
Swingarm:
<Free play limit> <1.0 mm (0 .039 in»
at swingarm end
Move swingarm end side to side.
Side clearance
0.4 - 0.7 mm (0.016 - 0.027 in)
at swingarm pivot
<Free play limit>
<0.3 mm (0 .012 in»
at swingarm pivot
Front wheel:
Type
Spoke wheel
Rim size
1.85 x 21
Rim material
Steel
<Rim runout limit>
Vertical
<2.0 mm (0.079 in»
Lateral
<2.0 mm (0.079 in»
Rear Wheel :
Type
Spoke wheel
Rim size
MT2.50 x 17
Rim material
Steel
<Rim runout limit>
Vertical <2.0 mm (0.079 in»
Lateral
<2.0 mm (0.079 in»
.
Drive Chain :
Type/Manufacturer
520V2/DAIDO
Number of links 106
Chain slack
30 - 40mm(1 .18 - 1.57in)
2- 11
