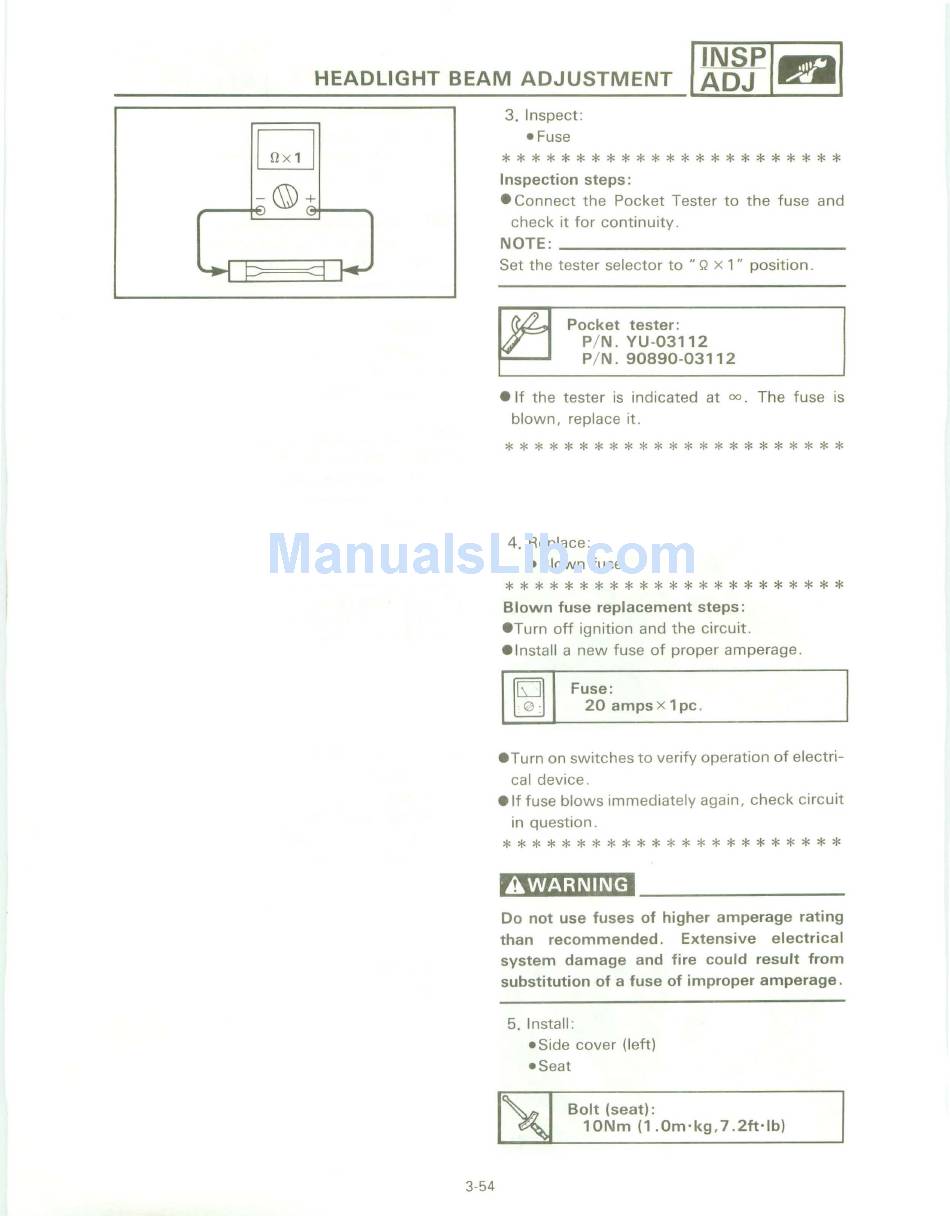

HEADLIGHT BEAM ADJUSTMENT _
_~_
3-54
3. Inspect:
e Fuse
***********************
Inspection steps:
• Connect the Pocket Tester to the fuse and
check it for continuity .
NOTE: ________________________ __
Set the tester selector to
"Q
x 1" position.
Pocket tester:
PI N. YU-03112
PI N. 90890-03112
• If the tester is indicated at
00
The fuse
IS
blown, replace it.
***********************
4. Replace:
eBlown fuse
***********************
Blown fuse replacement steps:
.Turn off ignition and the circuit .
• Install a new fuse of proper amperage.
I
rD
I
Fuse:
~:
20 ampsx1pc.
.Turn on switches to verify operation of electri-
cal device .
• If fuse blows immediately again, check circuit
in question.
***********************
·AWARNING
Do not use fuses of higher amperage rating
than recommended. Extensive electrical
system damage and fire could result from
substitution of a fuse of improper amperage.
5. Install:
e Side cover (left)
eSeat
Bolt (seat):
10Nm (1 .Om·kg, 7 .2ft-lb)
