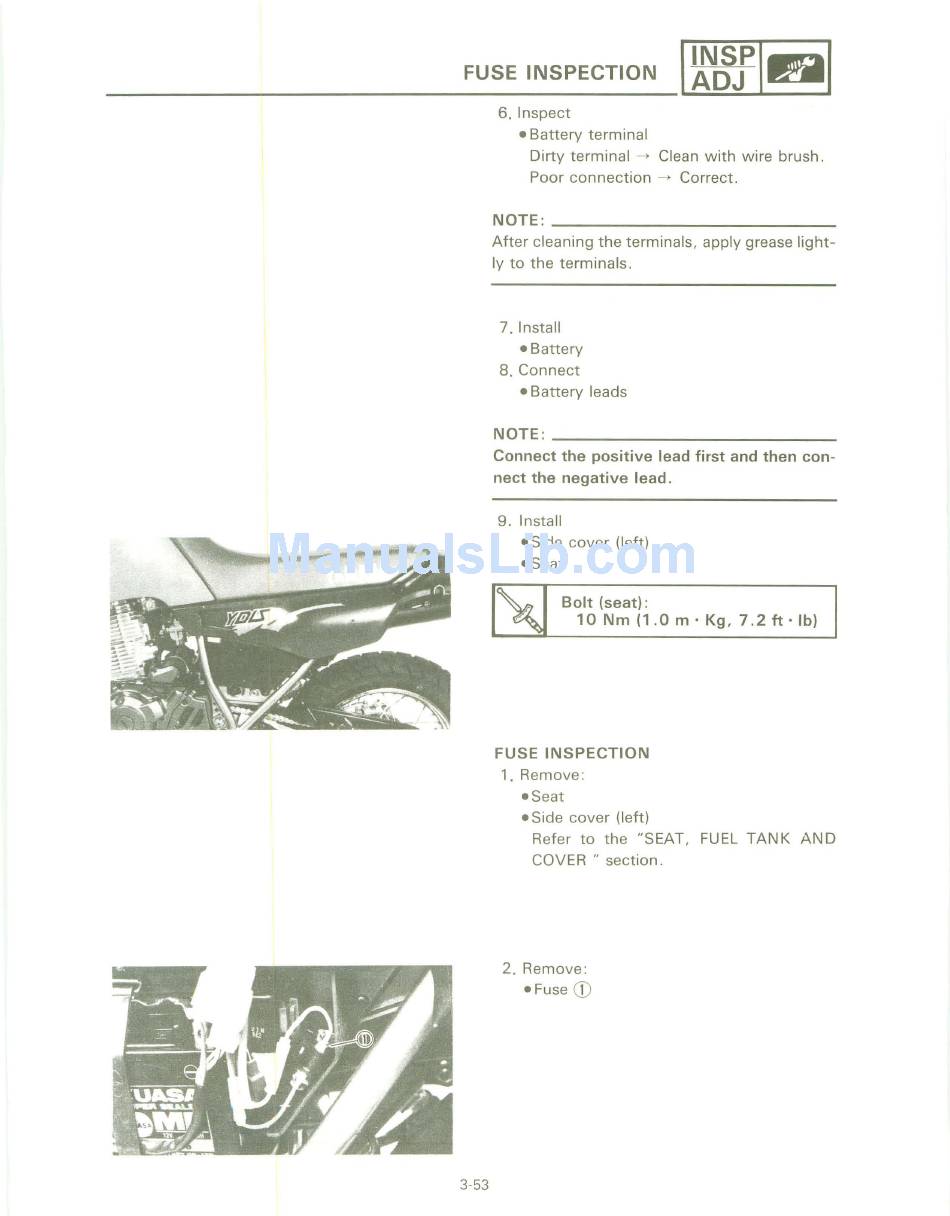

FUSE INSPECTION
~
-------------------------------------------------------
3-53
6. Inspect
- Battery terminal
Dirty terminal
--->
Clean with wire brush.
Poor connection
--->
Correct.
NOTE: ________________________ __
After cleaning the terminals, apply grease light-
ly to the terminals .
7. Install
- Battery
8 . Connect
- Battery leads
NOTE: ________________________ __
Connect the positive lead first and then con-
nect the negative lead.
9. Install
- Side cover (left)
-Seat
Bolt (seat):
10 Nm (1.0 m· Kg, 7.2 ft ·Ib)
FUSE INSPECTION
1. Remove:
-Seat
- Side cover (left)
Refer to the "SEAT, FUEL TANK AND
COVER" section.
2. Remove :
-Fuse
CD
