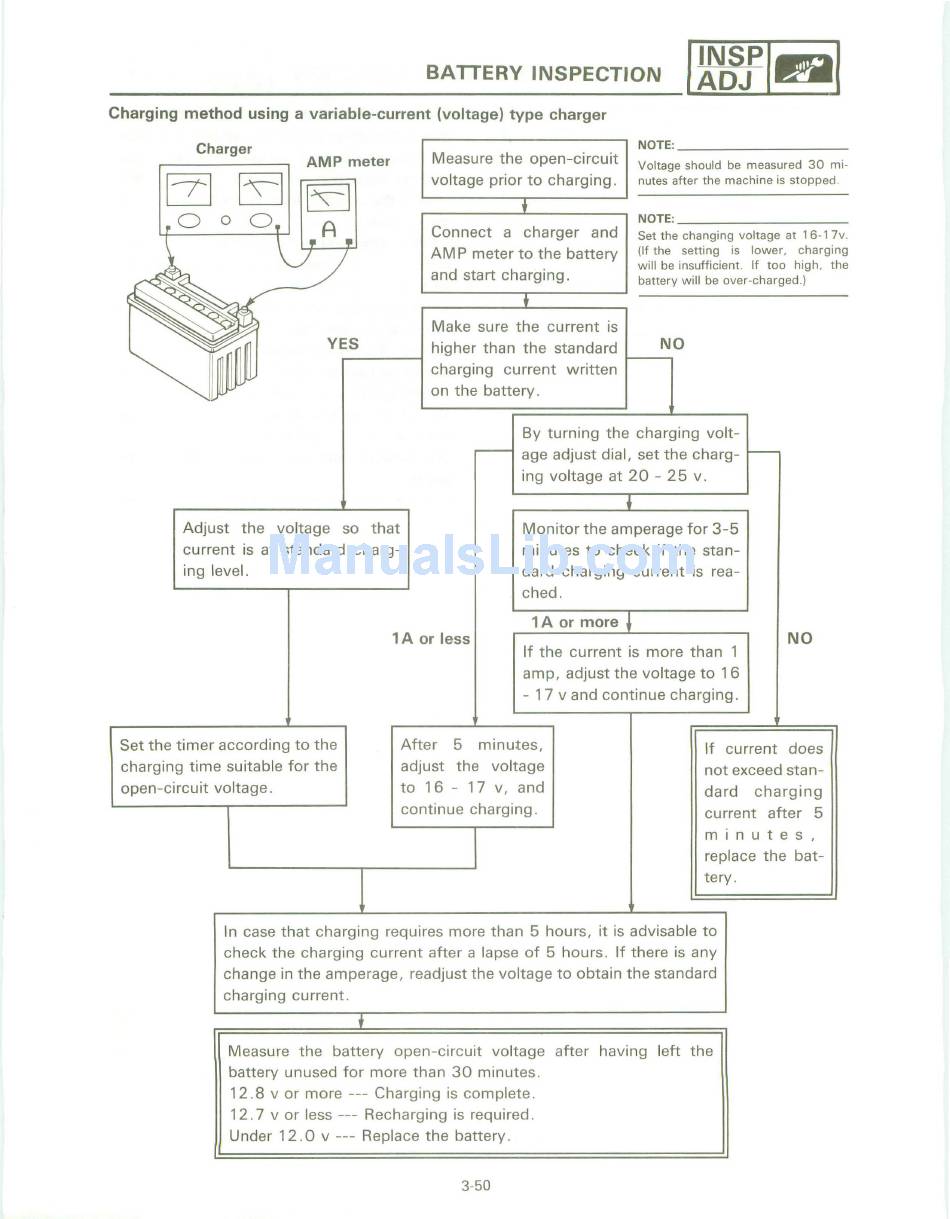

BATTERY INSPECTION
~
----------------------------------------------------------------
Charging method using a variable-current (voltage) type charger
Charger
, 0
0
0,
\
AMP meter
YES
Measure the open-circuit
voltage prior to charging.
t
Connect a charger and
AM P meter to the battery
and start charging.
t
NOTE: _ _ _ _ _ _ _ _ _ _
Voltage should be measured 30 mi·
nutes after the machine is stopped.
NOTE: _ _ _ _ _ _ _ _ _ _
Set the changing voltage at 16-1 7v.
(If the setting is lower, charging
will be insufficient. If too high, the
battery will be over-charged.)
NO
Make sure the current is
higher than the standard
....-----1
1----,
charging current written
on the battery.
Adjust the voltage so that
current is at standard charg-
ing level.
lA or less
By turning the charging volt-
age adjust dial, set the charg-
I - -
ing voltage at 20 - 25 v.
Monitor the amperage for 3-5
minutes to check if the stan-
dard charging current is rea-
ched.
lA
or more
If the current is more than 1
amp, adjust the voltage to 16
- 17 v and continue charging.
NO
Set the timer according to the
charging time suitable for the
open-circuit voltage.
After 5 minutes,
adjust the voltage
to 16 - 17 v, and
continue charging.
If current does
not exceed stan-
dard charging
current after 5
minutes,
replace the bat-
tery .
In case that charging requires more than 5 hours, it is advisable to
check the charging current after a lapse of 5 hours. If there is any
change in the amperage, readjust the voltage to obtain the standard
charging current.
Measure the battery open-circuit voltage after having left the
battery unused for more than 30 minutes.
12.8 v or more --- Charging is complete.
12.7 v or less --- Recharging is required.
Under 12.0 v --- Replace the battery.
