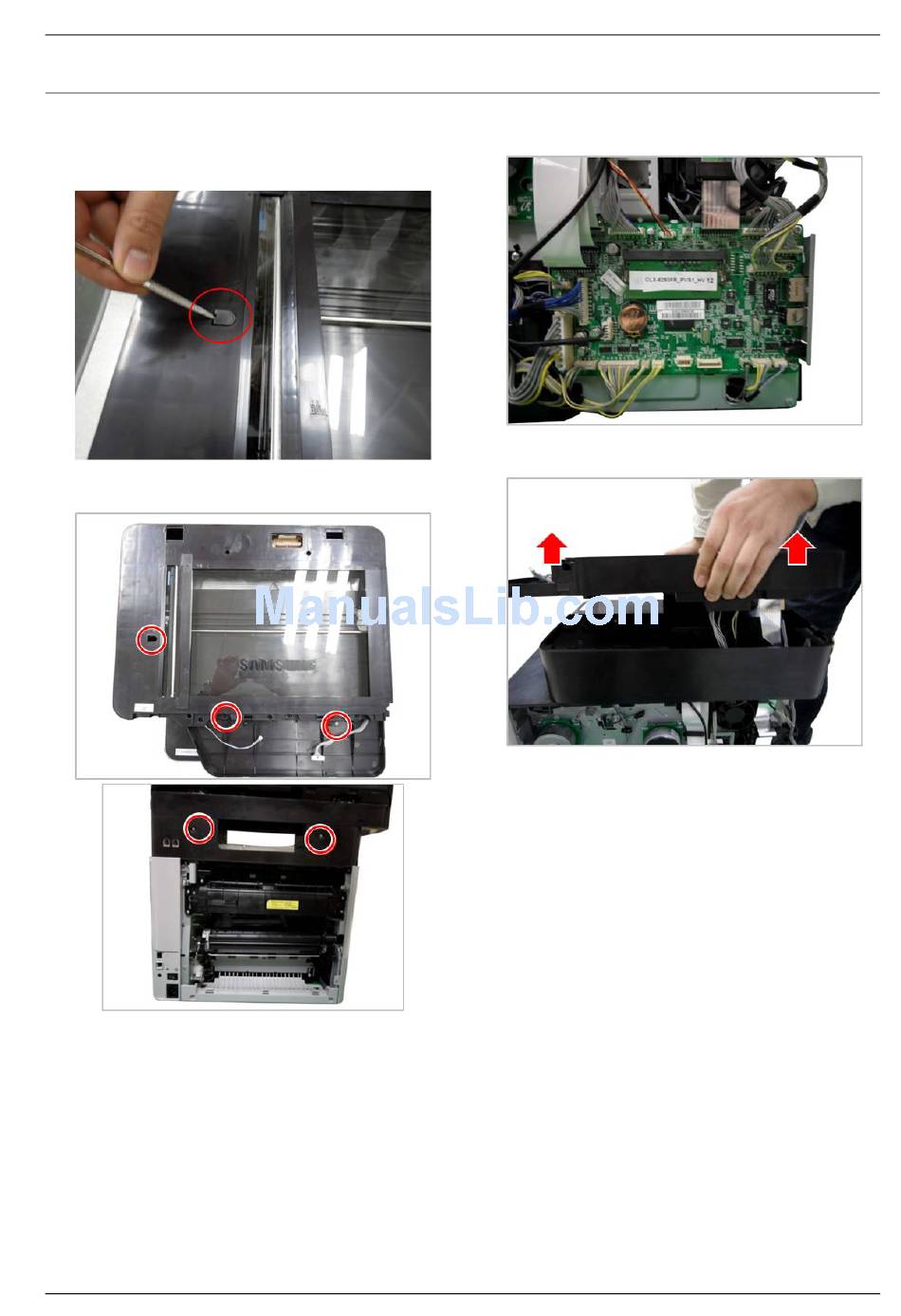

3.4.9. Platen Unit
1. Remove the right cover and ADF(RADF) Unit.
2. Remove the hole cap on the platen unit.
3. Remove 5 screws from the top and rear.
Copyright© 1995-2012 SAMSUNG. All rights reserved.
4. Unplug the relevant connectors on the main board.
5. Lift the platen unit up.
