2. Product specification and description
2.2.5.1. Main board
Chorus3–Next(C3N) chip is adopted as the main processor. Its process speed is 533 MHz. It is integrated engine controller,
video controller, scan controller.
DDR3 512MB is adopted for high speed data processing. Boot adopted the 128MB NAND Flash.
USB is the embedded type and wired network supports 1000M full duplex.

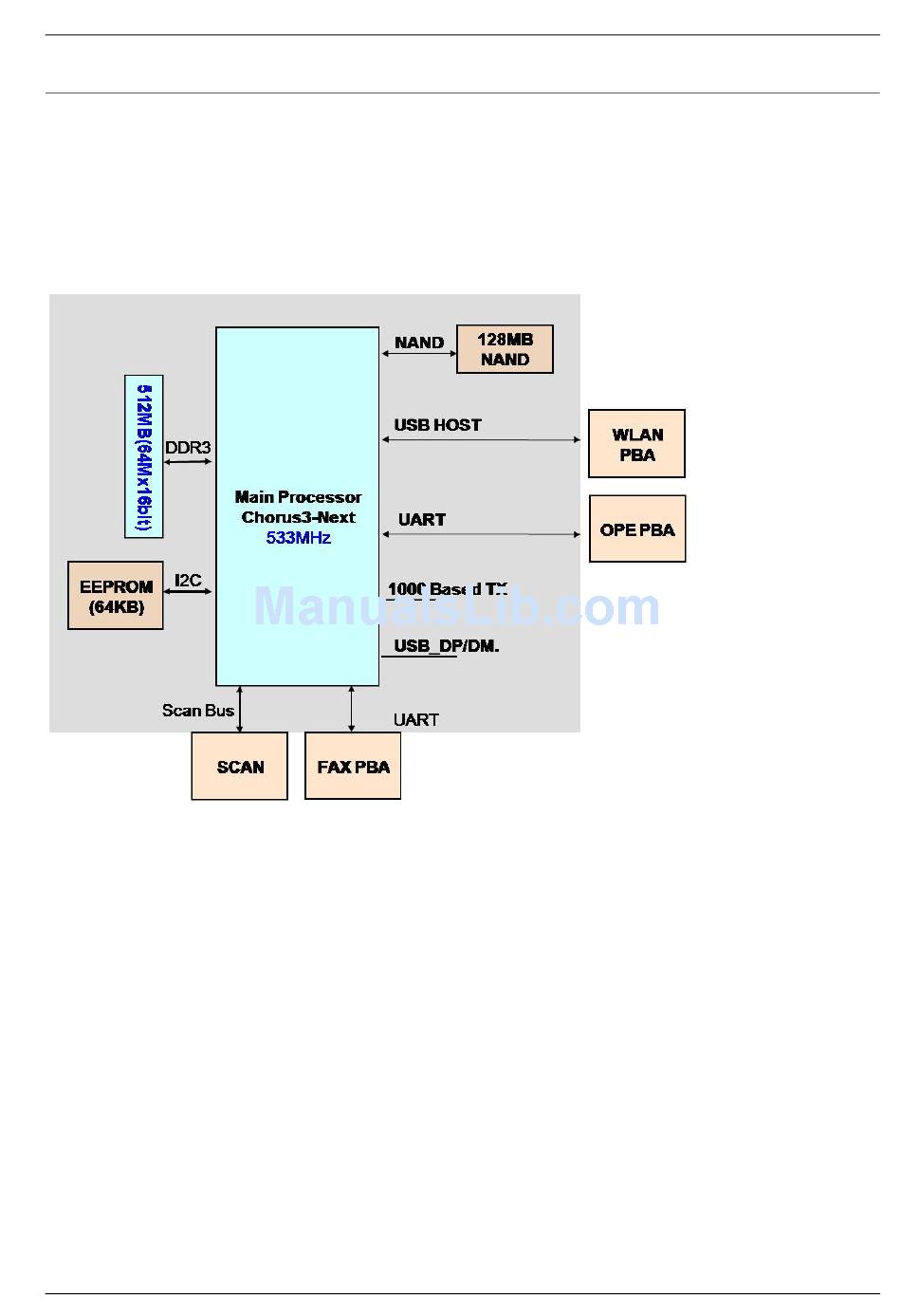

[Main board diagram]
Copyright© 1995-2012 SAMSUNG. All rights reserved.
2-28
