Fuser Unit - Samsung CLX-6260FD Service Manual

Clx-6260 series
Hide thumbs Also See for CLX-6260FD:
Table of Contents

Advertisement

3. Disassembly and Reassembly

3.3.4. Fuser Unit

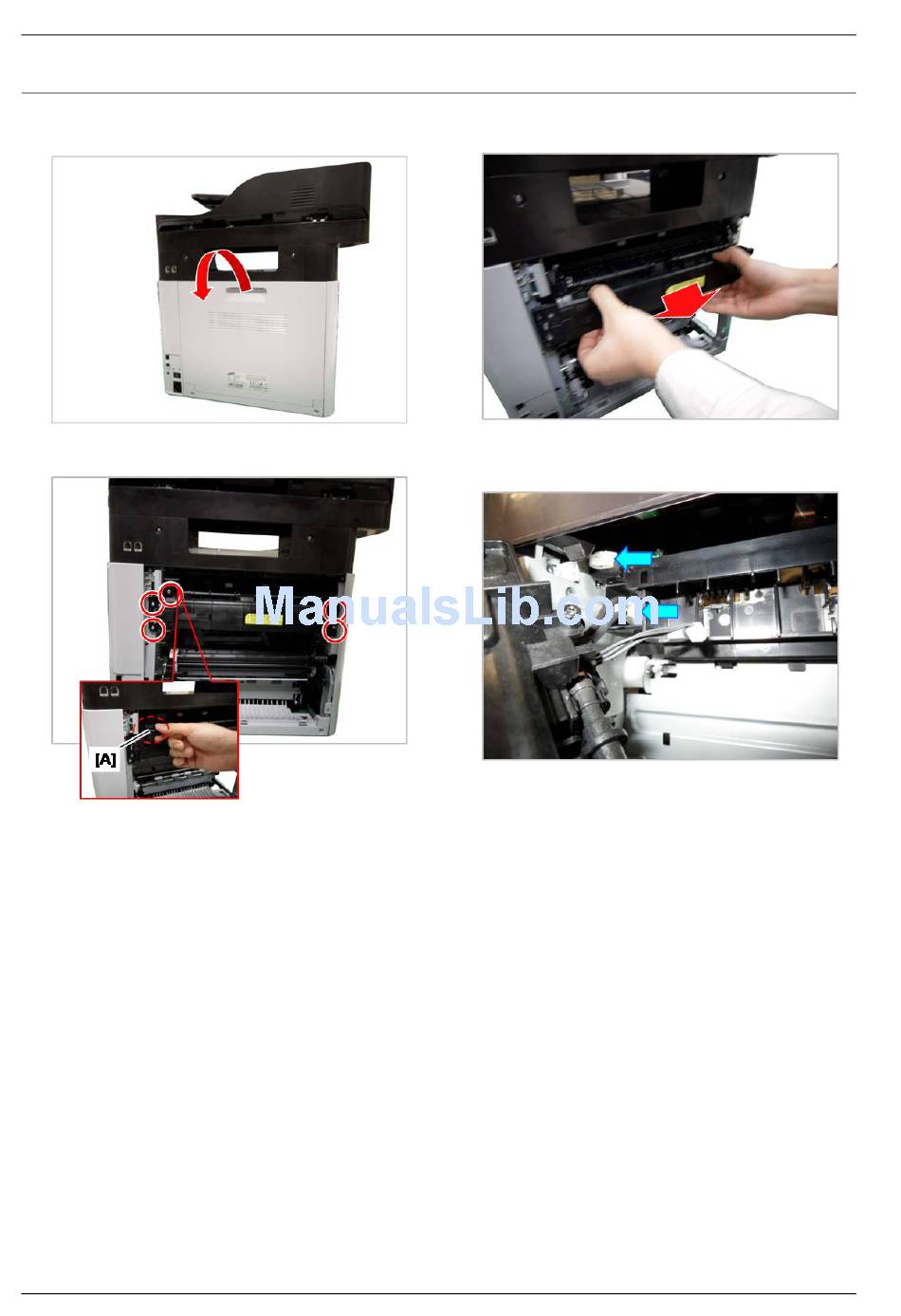

1. Open the rear cover.
2. Remove 5 screws. And remove the holder[A].
3-9
3. Pull the fuser unit to the direction of arrow.
4. Remove the fuser unit perfectly after unplugging the
connectors.
Copyright© 1995-2012 SAMSUNG. All rights reserved.
