2. Product specification and description

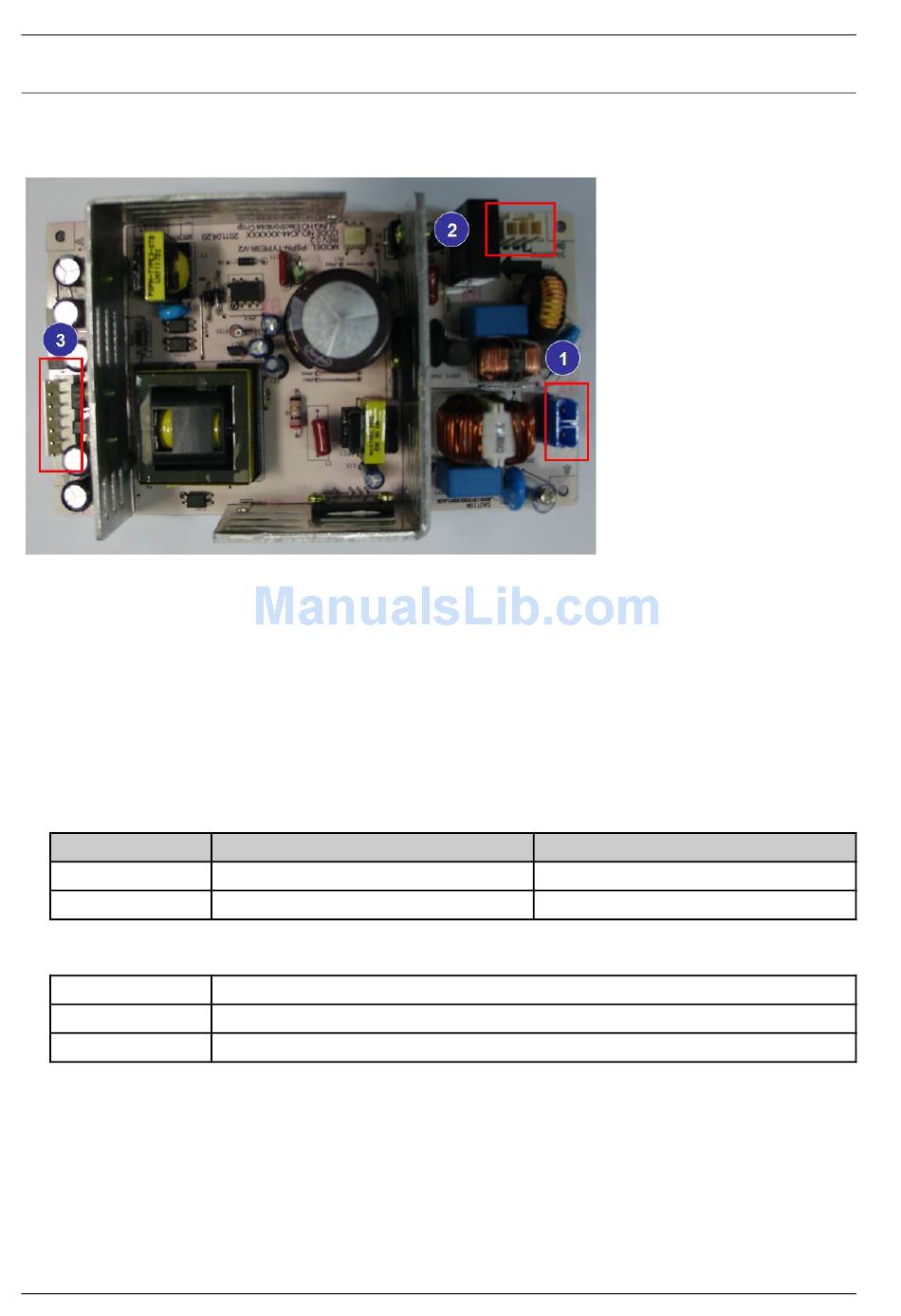

2.2.5.6. SMPS board

The SMPS (Switching Mode Power Supply) Board supplies electric power to the Main Board and other boards through a
Main Controller. The voltage provided includes +24V from a 110V/220V power input.
•
Specification
1) AC 110V (90V ~ 135V)
2) AC 220V (180V ~ 270V)
3) Input Current: 10.0A (110V) / 8.0A (220V)
4) Output Power: 161.5W
- DC 5V : 17.5W
-
DC 24V : 144W
•
Information
Part Code
PBA Name
•
Connection
1
2
3
2-37
110V
JC44-00222A
SMPS V1
AC_Inlet
FUSER_AC Output
OUTPUT_DC
220V
JC44-00223A
SMPS V2
