Hvps Board; Outer Temperature Sensor - Samsung CLX-6260FD Service Manual

3. Disassembly and Reassembly

3.4.2. HVPS board

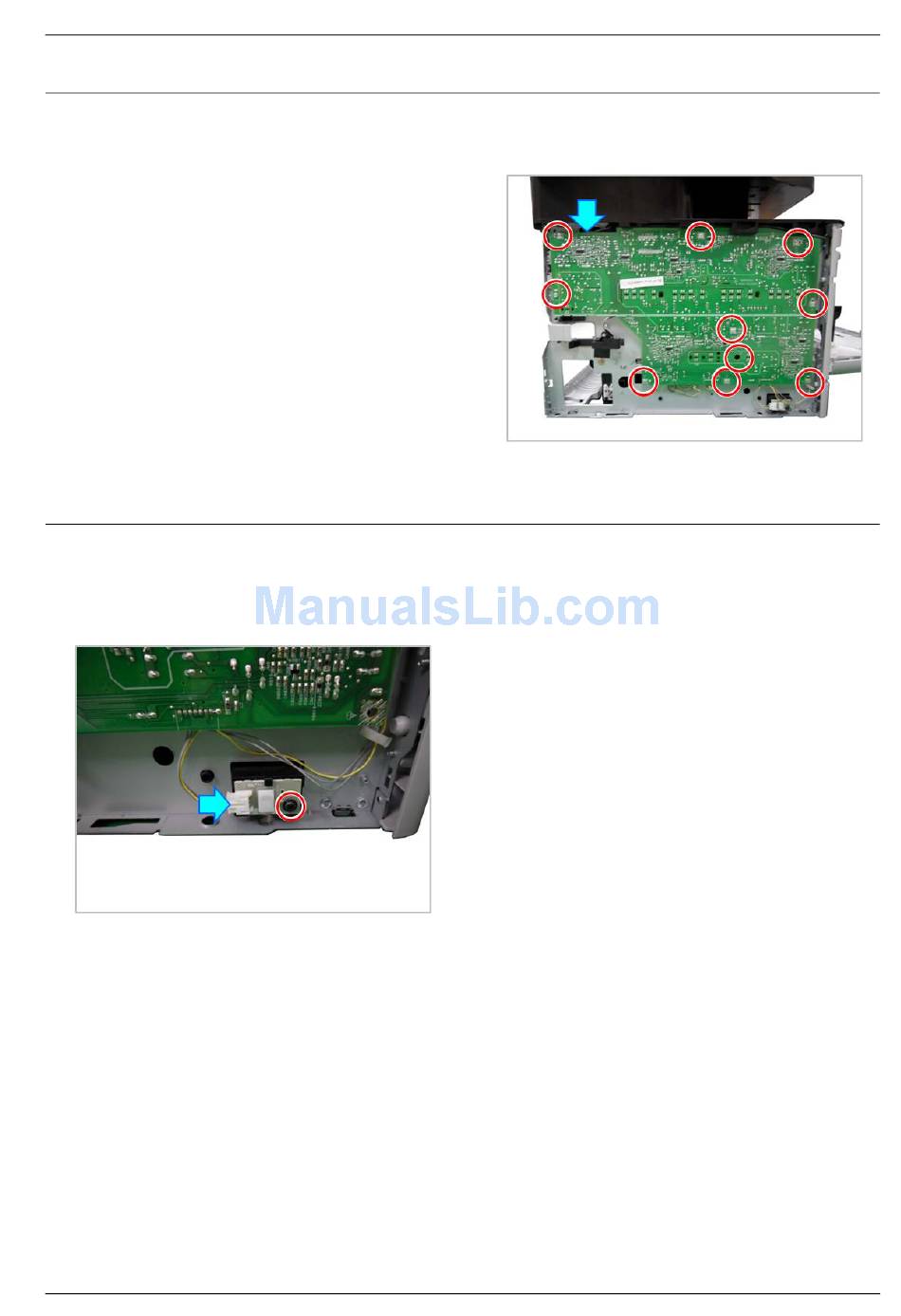

1. Remove the left cover. (Refer to 3.4.1.) 2. Remove 10 screws. Unplug the connector. And release
the HVPS board.

3.4.3. Outer Temperature Sensor

1. Remove the left cover. (Refer to 3.4.1)
2. Remove 1 screw. Unplug the connector. And remove
the sensor.
