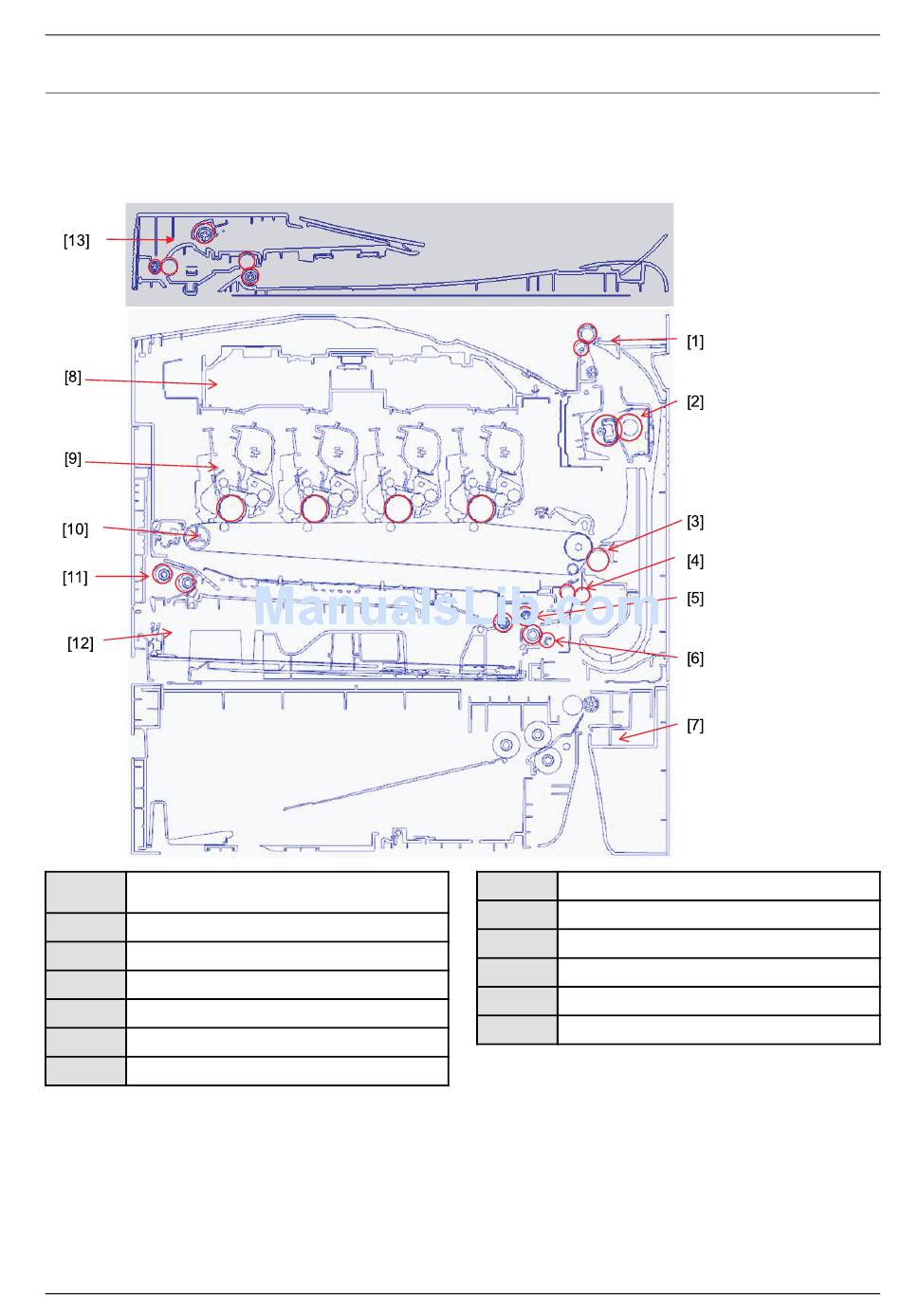

2.2.4. System Layout

This model consists of the scanner parts, engine parts, hardware parts, firmware. The scanner parts consists of ADF/DADF
and platen. The engine parts consists of the mechanical parts comprising Frame, Toner Cartridge, Drive Unit, Transfer roller,
Pick up unit, Fuser, Cassette. The hardware parts consists of the main board, SMPS, HVPS board, OPE board, PC interface.
[13]
[8]
[9]
[10]
[11]
[12]
1 Exit Unit
2 Fuser Unit
3 T2 (Second transfer) roller
4 Registration(Regi.) roller
5 Pick up roller
6 Reverse roller
7 SCF (Second Cassette Feeder)
Copyright© 1995-2012 SAMSUNG. All rights reserved.
2. Product specification and description
8 LSU
9 Toner Cartridge
10 ITB Unit
11 MP Unit
12 Cassette
13 ADF or DADF Unit
[1]
[2]
[3]
[4]
[5]
[6]
[7]
2-20
