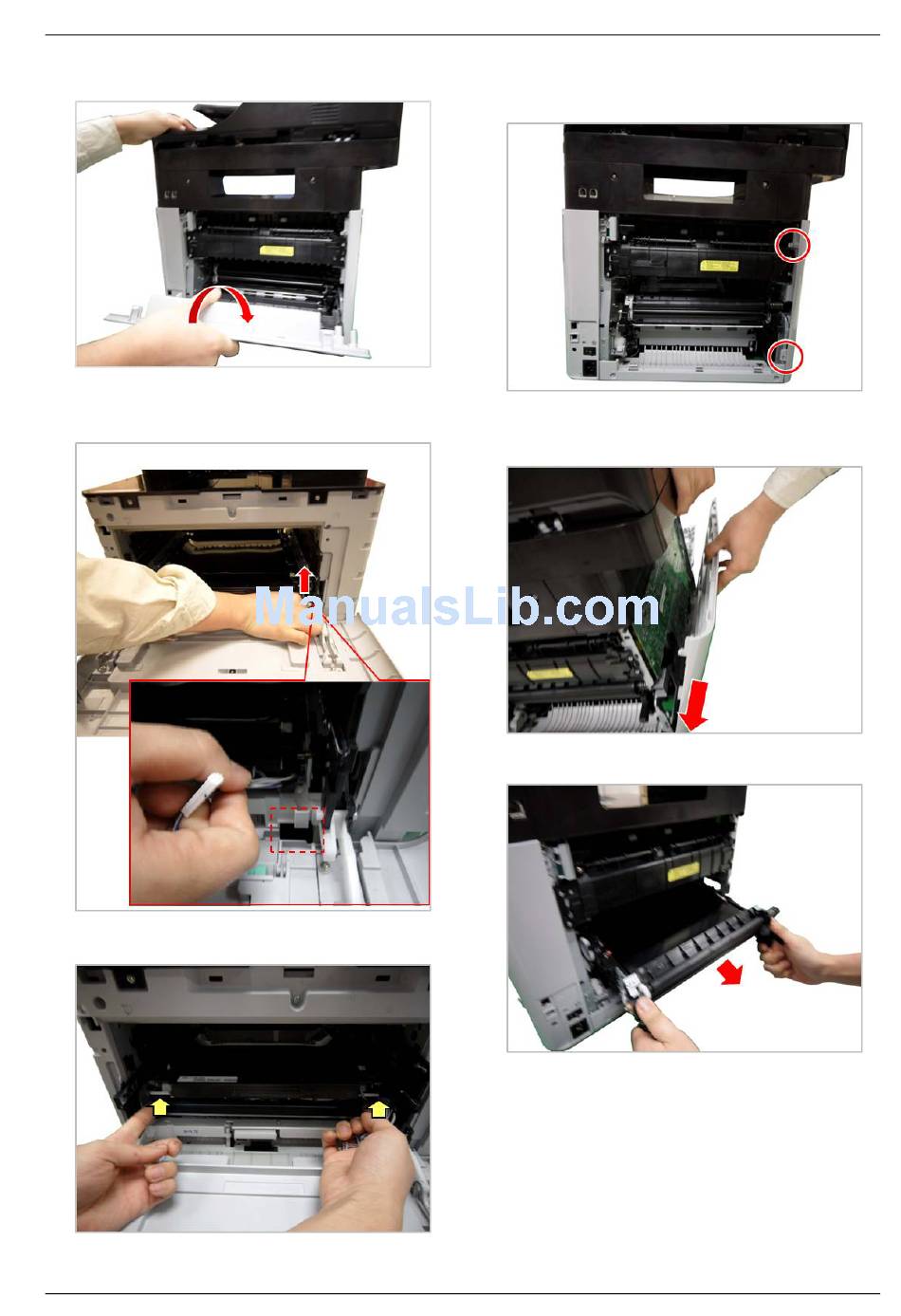

7. Remove the rear cover.
8. Open the front cover. Pick out the connector that is
unplugged in step 5.
9. Lift up the both sides of the ITB Unit slightly.
Copyright© 1995-2012 SAMSUNG. All rights reserved.
10. Remove 4 screws securing the left cover from the front
and rear.
11. Remove the waste toner container. Release the left
cover by pushing it to the direction of arrow.
12. Remove the ITB Unit.
3. Disassembly and Reassembly
3-8
