2. Product specification and description

2.2.4.6. Toner Cartridge

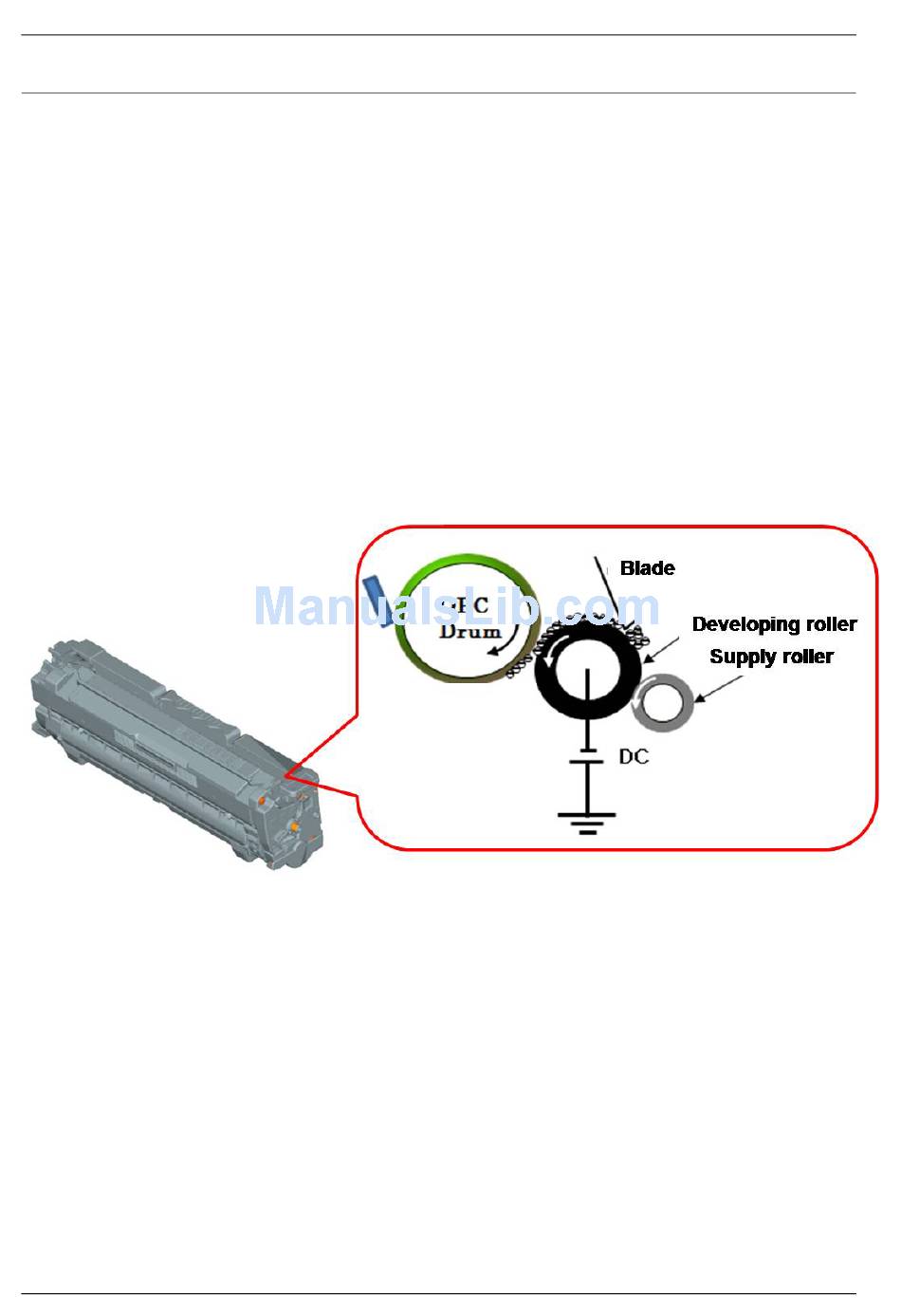

By using the electronic photo process, it creates a visual image. In the toner cartridge, the OPC unit and the developing
unit are in a body. The OPC unit has OPC drum and charging roller, and the developing unit has toner, supply roller,
developing roller, and blade.
•
Developing Method : Non magnetic single component non-contacting method
•
Toner : Non magnetic single component pulverized type toner
•
The life span of toner (ISO 19798 pattern / A4 standard)
-
Initial toner : 2K (K) / 1.5K (CMY)
-
Sales toner :
▪
Standard yield : 2K (K) / 1.5K (CMY)
▪
High yield : 6K (K) / 3.5K (CMY)
•
OPC Cleaning : Collect the toner by using cleaning blade
•
Handling of wasted toner : Collect the wasted toner in the cleaning frame by using cleaning blade
•
Classifying device for toner cartridge: ID is classified by CRUM
