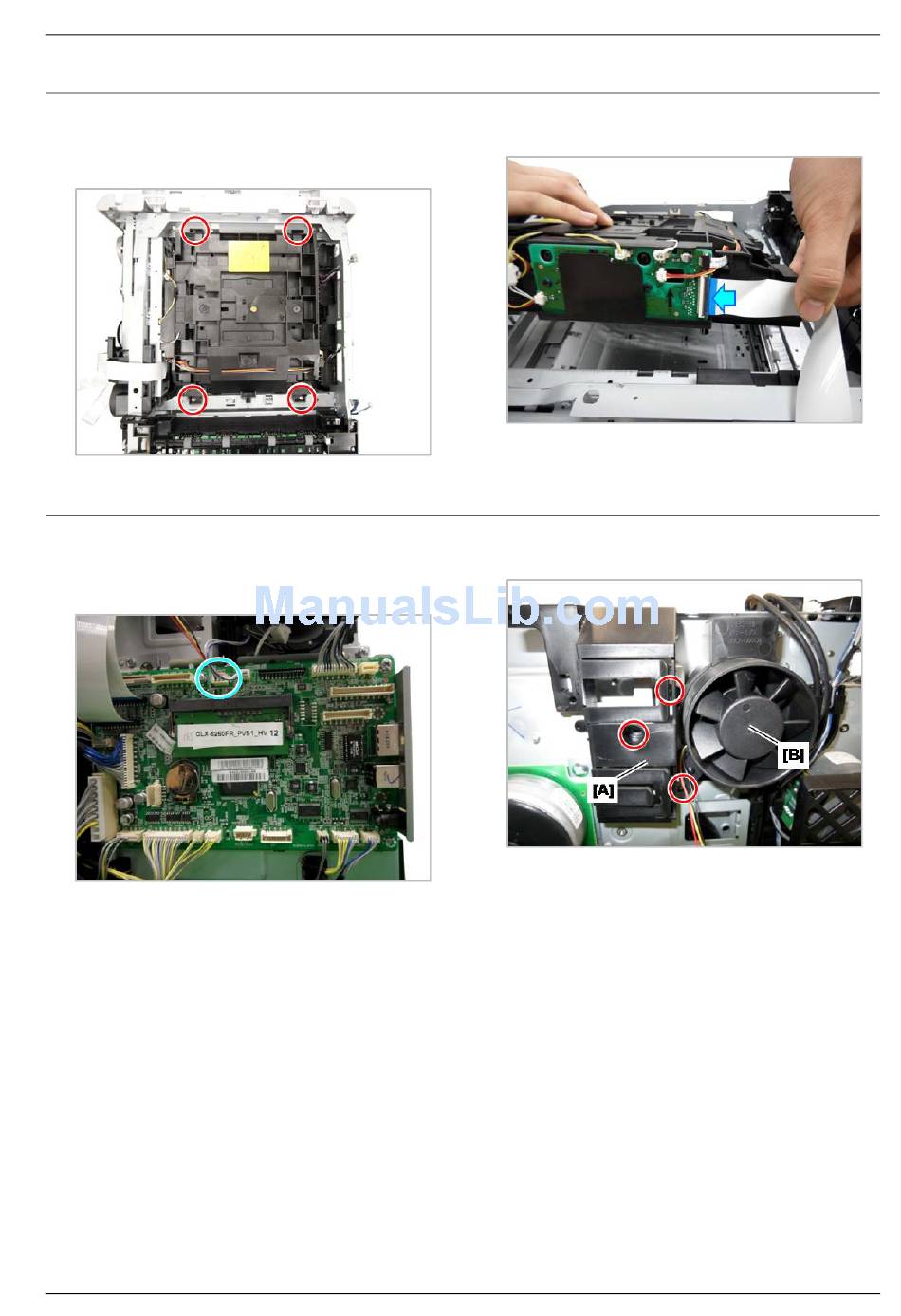

3.4.11. LSU
1. Remove the middle cover. (Refer to 3.4.10)
2. Remove 4 screws.
3.4.12. Fuser Fan
1. Remove the right cover.
2. Unplug the fan connector on the main board.
3. Remove the harness holder[A] after removing 1 screw.
Copyright© 1995-2012 SAMSUNG. All rights reserved.
3. Unplug all connectors. And remove the LSU.
4. Remove the fuser fan[B] after removing 2 screws.
3. Disassembly and Reassembly
3-18
