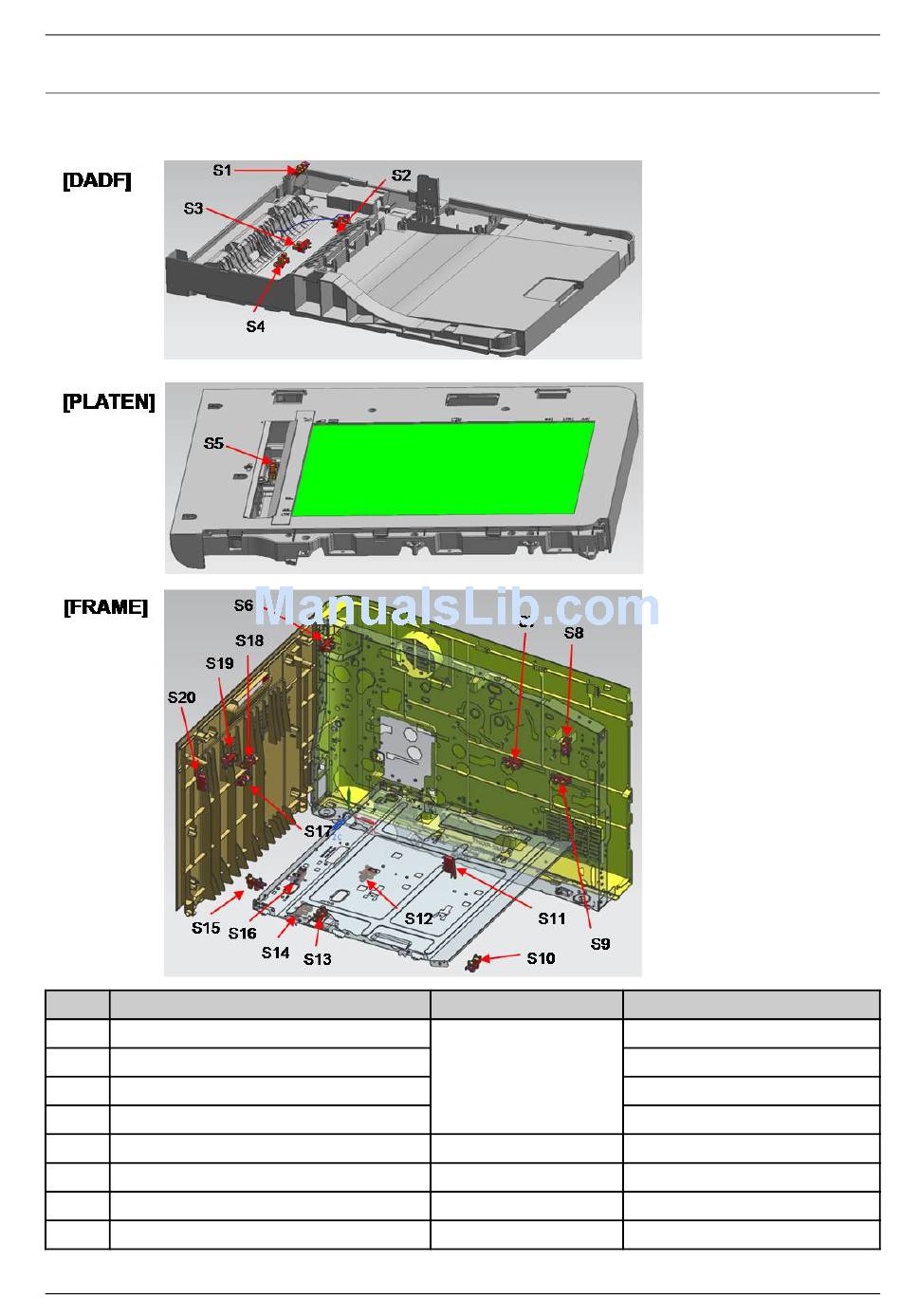

2.2.5.11. Electrical Parts Location
1) Sensors
No.
Description
S1
Photo interrupter (DADF Cover Open sensor)
S2
Photo interrupter (Paper empty sensor)
S3
Photo interrupter (Feed sensor)
S4
Photo interrupter (Regi sensor)
S5
Photo interrupter (Home Position sensor)
S6
Photo interrupter (Exit sensor)
S7
Photo interrupter (Drive OPC sensor)
S8
Photo interrupter (Deve Nip sensor)
Copyright© 1995-2012 SAMSUNG. All rights reserved.
2. Product specification and description
Controller
DADF Board
Main Board
Main Board
Main Board
Main Board
Function
Cover Open detection
Paper detection
Paper detection
Paper detection
CIS detection
Exit detection
Drive OPC detection
Deve Nip detection
2-42
