2.2.5.2. 4 Line OPE Controller (CLX-6260ND_6260FD_6260FR)

There are 2 types for 4 line OPE controller. The CLX-6260ND has the 3 in 1 type and CLX-6260FD and 6260FR has the
4 in 1 type.
The OPE controller is composed of an OPE MICOM(STM8L151M8T6), STATUS LED, ECO LED, POWER LED,
Navigation LED, Scan to LED(3in1 Only), 4 LINE LCD, KEY
The OPE controller communicates with main controller via UART. The power LED is controlled by the main board.

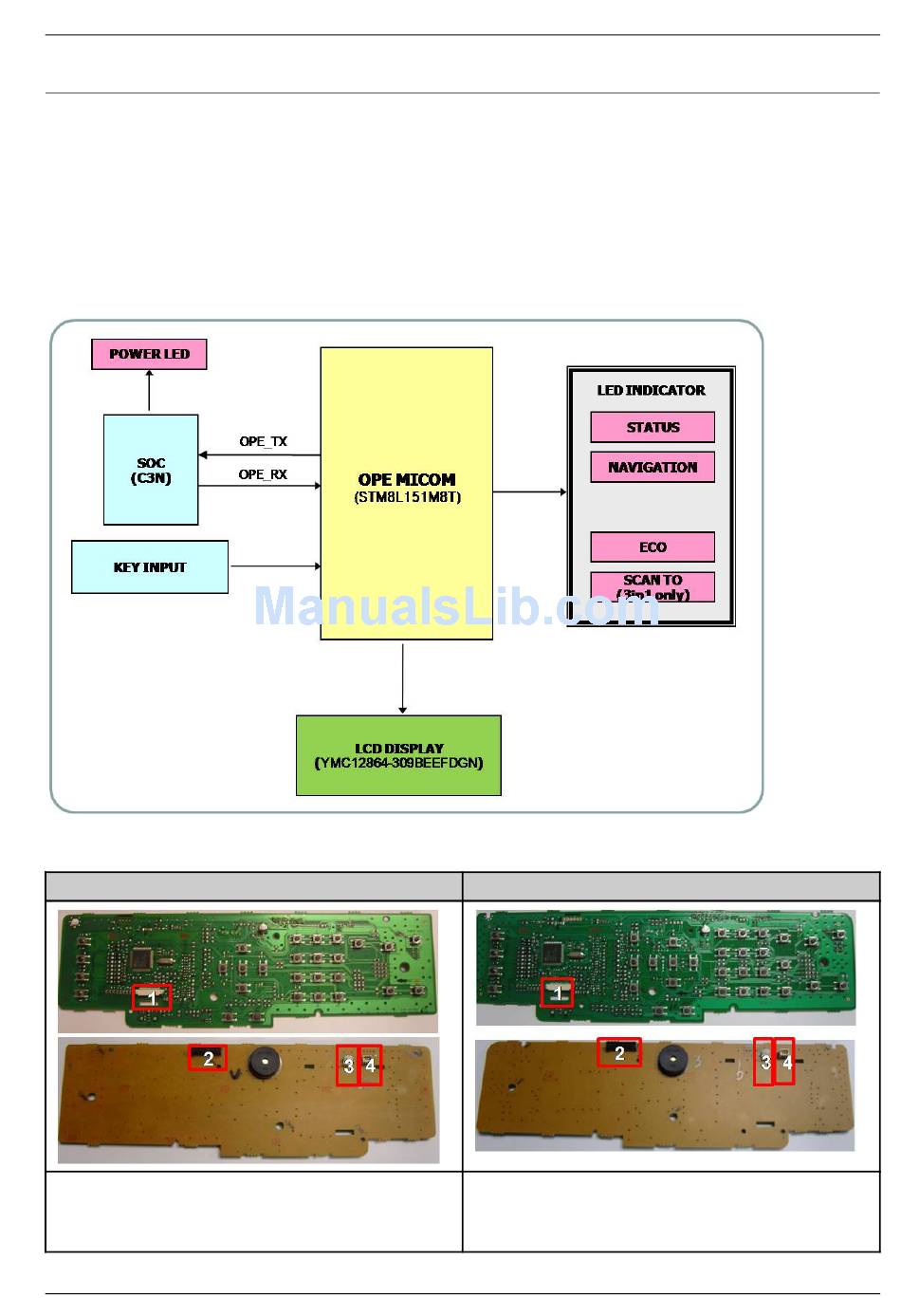

[OPE controller diagram]
[OPE controller image]
CLX–6260ND
• Information
• Part Code : JC92-02521A
• PBA Name : OPE-3in1
Copyright© 1995-2012 SAMSUNG. All rights reserved.
2. Product specification and description
CLX-6260FD / 6260FR
• Information
• Part Code : JC92-02522A
• PBA Name : OPE-4in1
