Samsung CLX-6260FD Service Manual page 38

2. Product specification and description

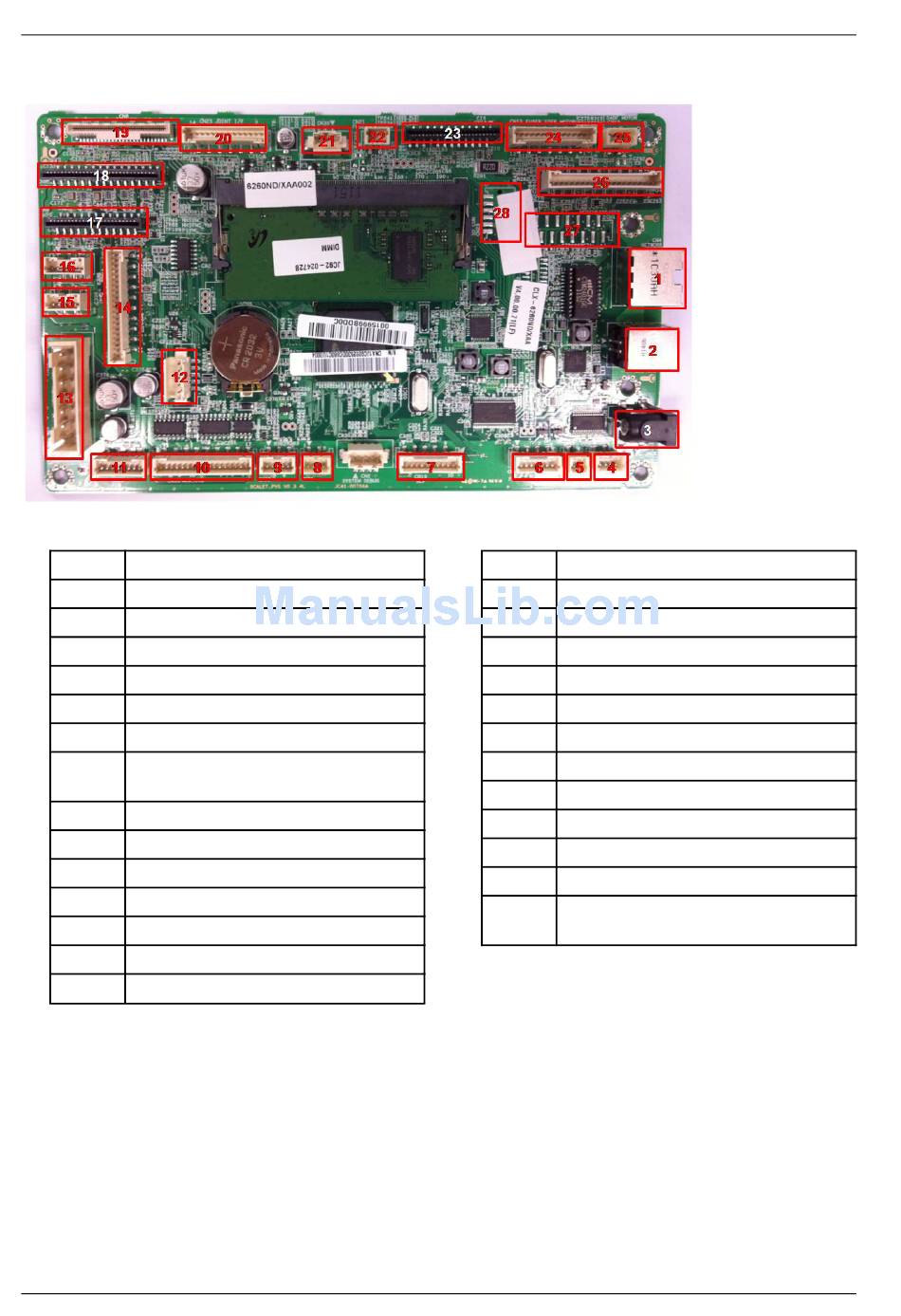

[Main board image]
•
Connection
1 NETWORK connector
2 USB Device connector
3 1284 I/F connector
4 Feed Step Motor connector
5 Regi. Clutch connector
6 Pick Up Clutch connector
7 SCF connector
SMPS Fan T1 DC motor connector
8
(CLX-626xFW only)
9 MP Emtpy, Cassette Open connector
10 ITB Joint connector
11 Fuser CONT. connector
12 HUB I/F connector
13 SMPS connector
14 BLDC Motor connector
15 DEVE Home sensor/solenoid connector
•
Information
-
Part Code
▪
JC92-02530A : CLX-6260FW
▪
JC92-02530B : CLX-6260FR
▪
JC92-02530C : CLX-6260FD
▪
JC92-02530D : CLX-6260ND
2-29
16 OPC Home sensor conector
17 HVPS2 connector
18 HVPS1 connector
19 LSU connector
20 OPE connector
21 Fuser Fan connector
22 Thermistor connector
23 DCIS connector
24 Exit Motor connector
25 Platen Motor connector
26 RADF I/F connector
27 Fax I/F connector
SD Memory I/F connector (CLX-626xFW
28
only)
