2. Product specification and description

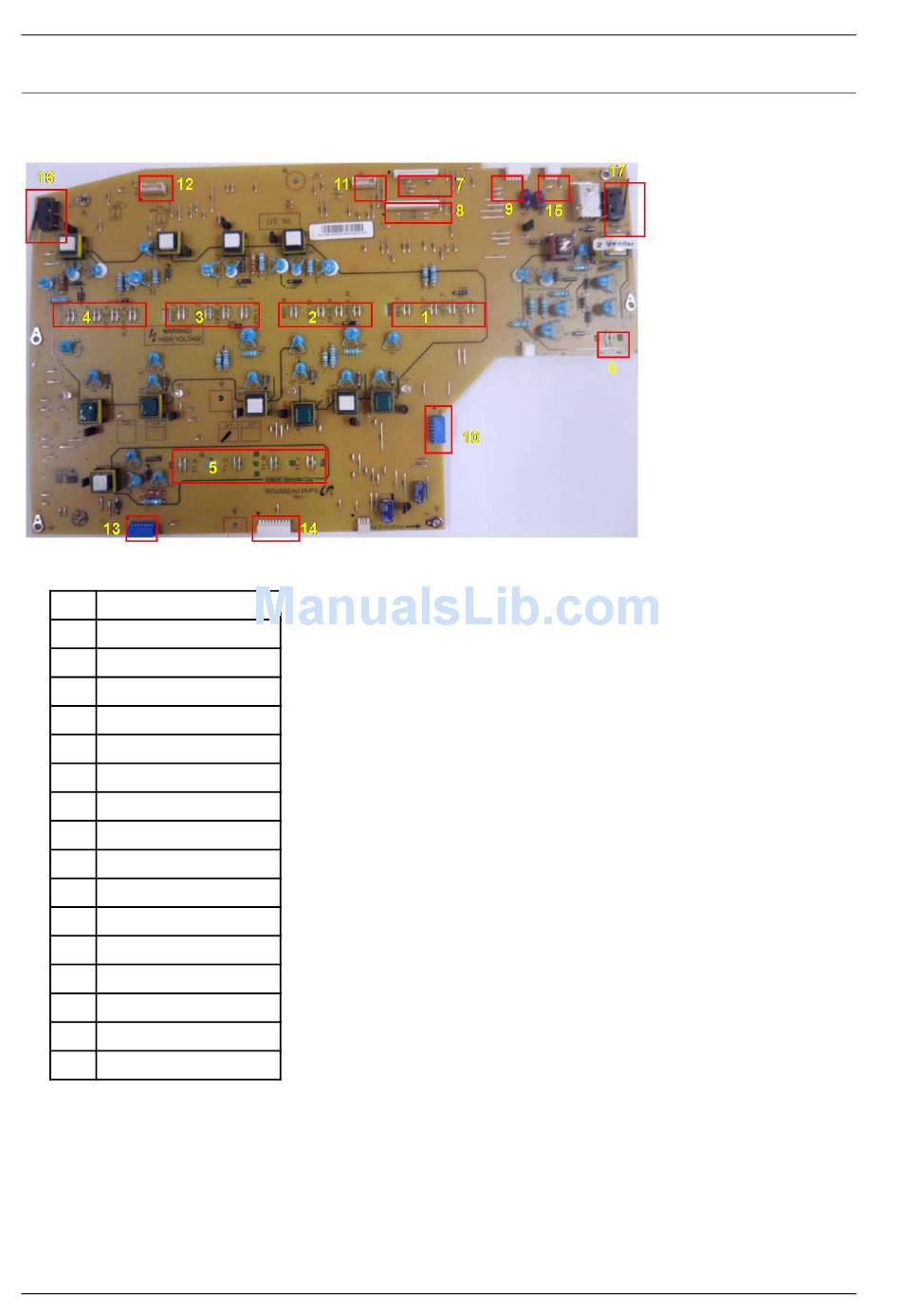

2.2.5.7. HVPS board

The HVPS board generates high-voltage channels which includes MHV, DEV, Blade, SUP, THV1, THV2.
•
Connection
1 MHV/DEV/BLD/SUP Y
2 MHV/DEV/BLD/SUP M
3 MHV/DEV/BLD/SUP C
4 MHV/DEV/BLD/SUP K
5 THV1 YMCK
6 THV2
7 Main-HVPS I/F #1
8 Main-HVPS I/F #2
9 Paper exit, Outbin full
10 WTB interface
11 Crum Y,M
12 Crum C,K
13 Ambient, Humidity
14 Paper Regi
15 Fuser Release
16 Front cover open Switch
17 Rear cover open Switch
•
Information
-
Part Code : JC44–00216A
-
PBA Name : HVPS
