3. Disassembly and Reassembly

3.4.16. PH (Paper Handling) Drive Unit

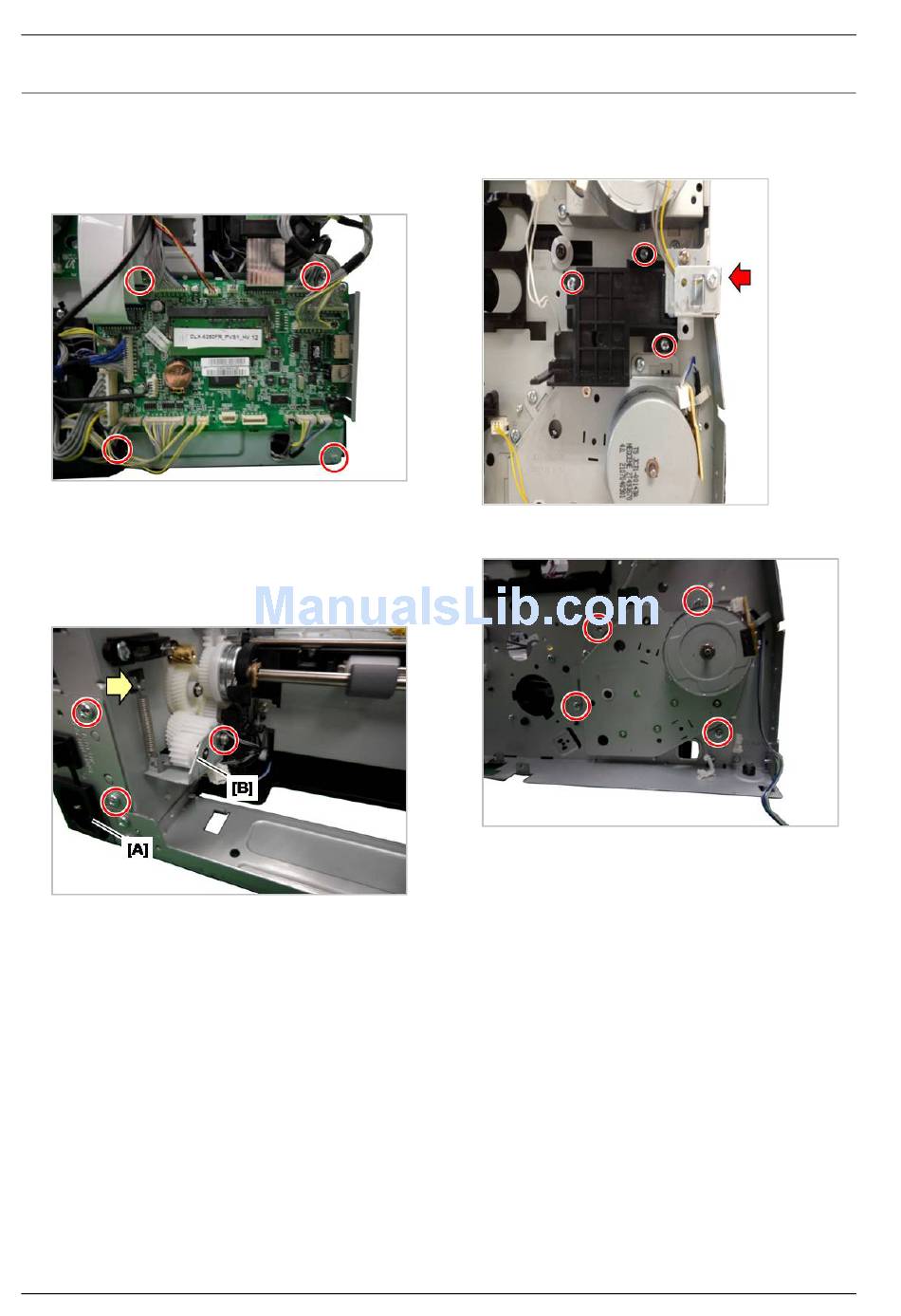

1. Remove the right cover. (Refer to 3.4.1)
2. Remove the main board bracket after removing 4
screws.
3. Remove the rear cover.
4. Release the spring. Remove the poly-washer. And
remove the duplex swing gear Assy[B].
5. Remove the Inlet Assy[A] after removing 2 screws.
3-21
6. Remove the Holder-TR motor DC after removing 4
screws.
7. Remove the PH drive unit after removing 4 screws.
