3. Disassembly and Reassembly

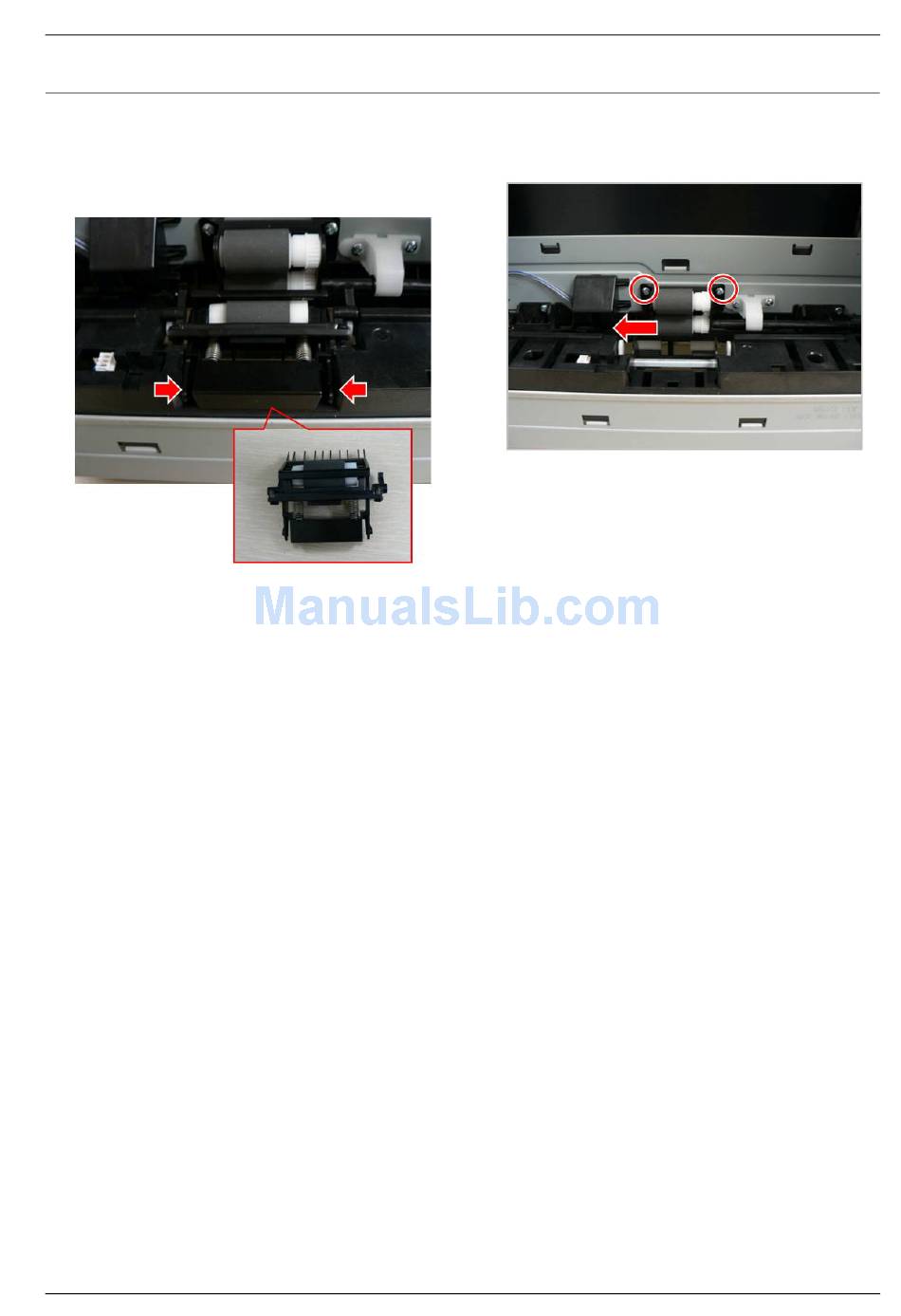

3.3.5. Pick up_Forward_Reverse roller
1. Remove the cassette. Stand the machine to see the
3. Remove 2 screws. Pull and release the Pick-up/Forward
bottom.
roller Assy.
2. Release the Reverse roller Assy by pushing both hooks.
