3. Disassembly and Reassembly
3.4.10. Middle Cover
1. Remove the right cover.
2. Remove the ADF(RADF) Unit and OPE unit. (Refer
to 3.4.7 ~ 3.4.8)
3. Remove the Platen Unit. (Refer to 3.4.9)

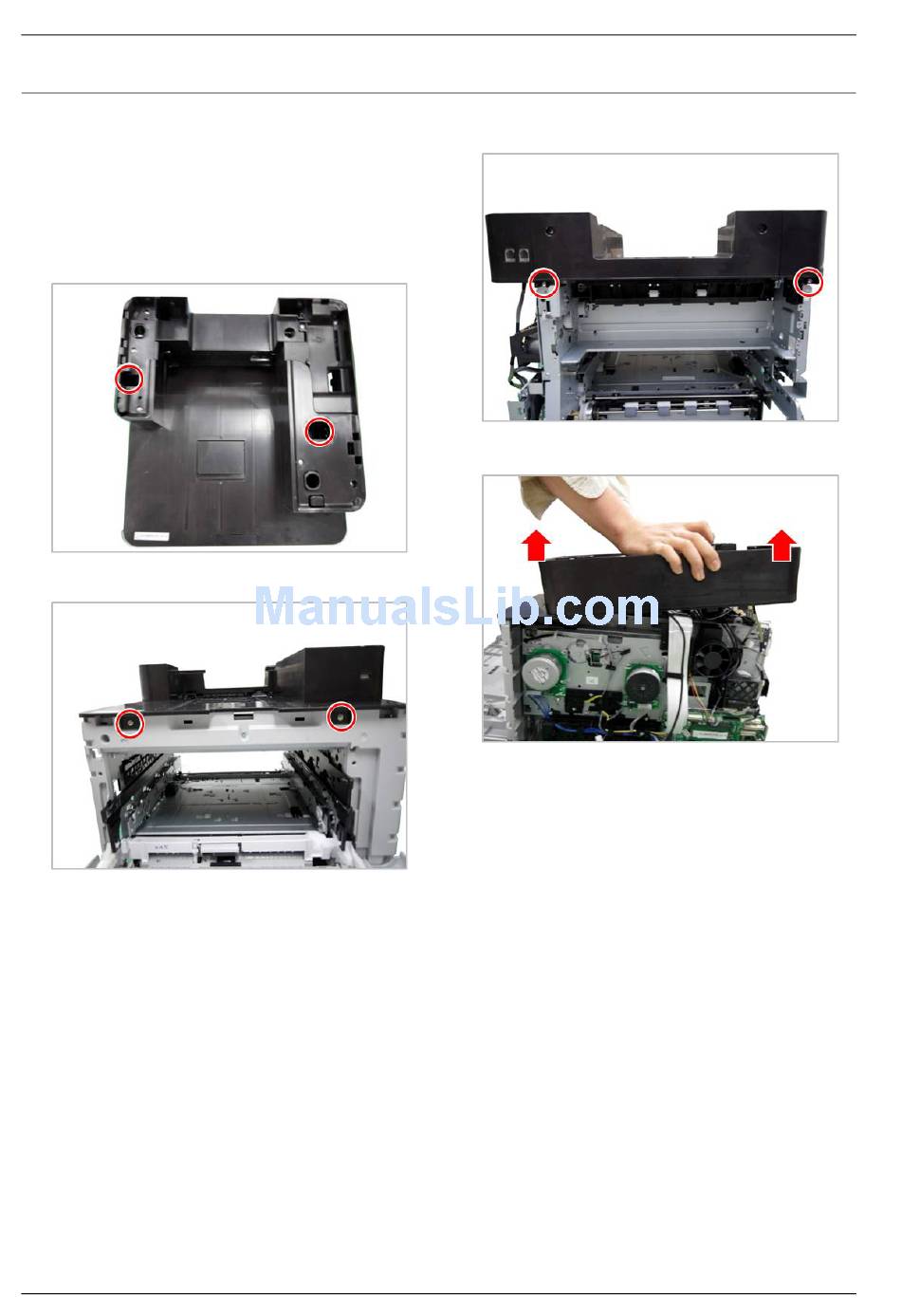

4. Remove 2 screws from the top of the middle cover.
5. Remove 2 screws from the front.
3-17
6. Remove 2 screws from the rear.
7. Lift up and release the middle cover.
