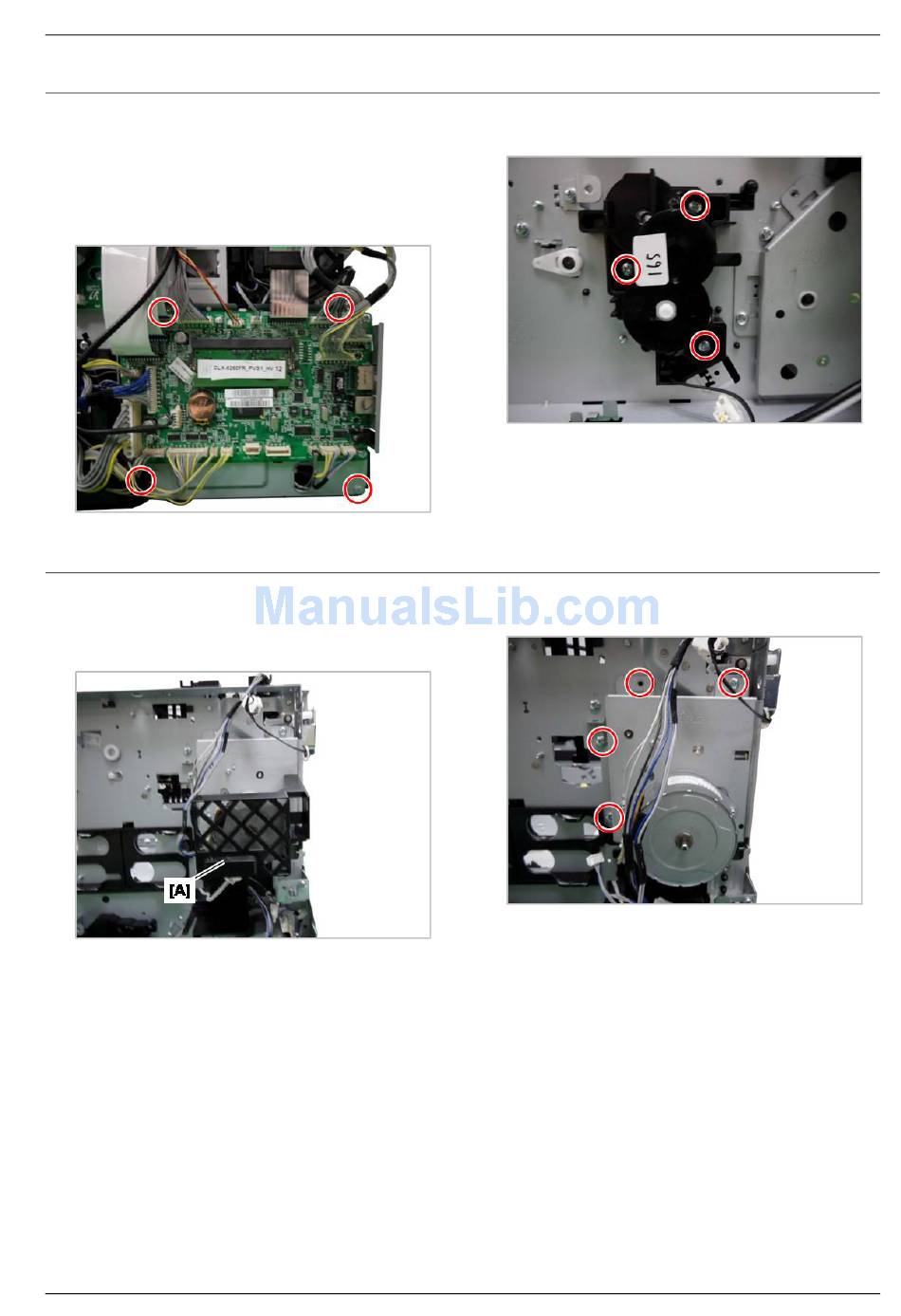

3.4.14. DRIVE-T1
1. Remove the right cover. (Refer to 3.4.1)
2. Remove the SMPS board. (Refer to 3.4.6)
3. Remove the main board bracket after removing 4
screws.
3.4.15. Fuser Drive Unit
1. Remove the right cover.
2. Remove the harness holder[A].
Copyright© 1995-2012 SAMSUNG. All rights reserved.
4. Remove the BRACKET-T1 after removing 3 screws.
3. Remove the Fuser Drive Unit after removing 4 screws.
3. Disassembly and Reassembly
