2.2.7. Software Descriptions

2.2.7.1. Software system overview

The software system of this model is constructed with
•
Host Software part that the application software operated in Window and Web Environment
•
Firmware parts that is a Embedded software controls printing job.

2.2.7.2. Architecture

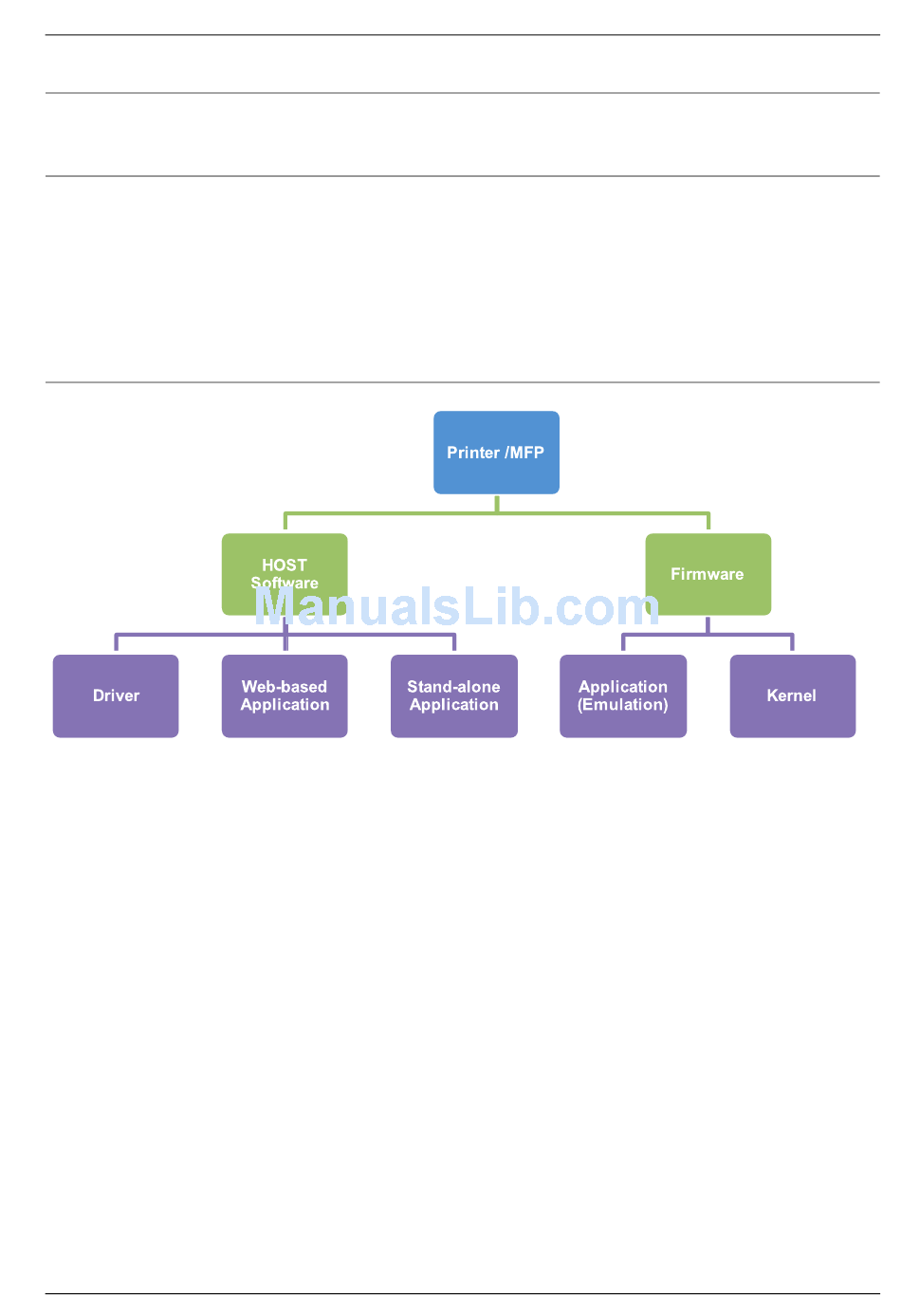

Driver
Host Software is made up of
1) Graphic User Interface offers the various editing functions to user in Host.
2) Driver translates the received document to a Printing Command language which printer can understand and transfers
data to spooler.
3) Stand-alone Application offers the various printing application such as Easy Printer Manager, Printer Status in Window
system.
4) Web-based-Application offers the same functions as Stand-alone Application in Web environment.
Firmware is made up of
1) Application (Emulation) that is a interpreter translates data received from Host to a printing language (PCL, PS, GDI,
etc.) to be able to make the user to take same output as originally one what composed in Host.
2) Kernel controls and manage the whole procedure including Control flow and Printing Job before transferring to Engine
system.
