2. Product specification and description

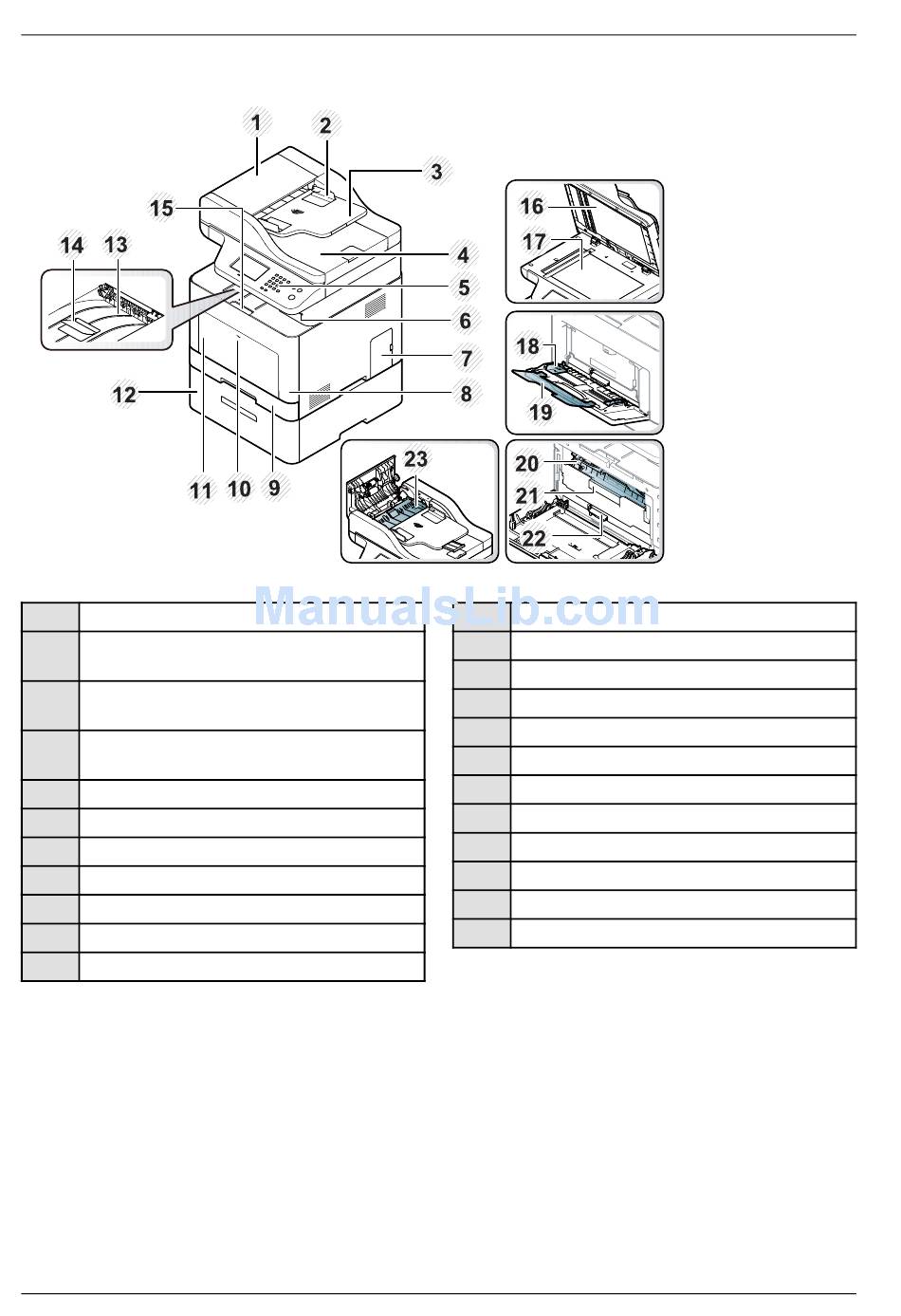

Type B(CLX-626xFR/ CLX-626xFW)
15
13
14
12
11
1 Dual Automatic Document Feeder(DADF) cover
2 Dual Automatic Document Feeder(DADF) width
guide
3 Dual Automatic Document Feeder(DADF) input
tray
4 Dual Automatic Document Feeder(DADF) output
tray
5 Control panel
6 USB memory port
7 Control board cover
8 Front cover
9 Tray 1
10 Push-release of Multi-purpose tray
11 Multi-purpose tray
2-17
1
2
10 9
3
16
17
4
5
6
18
7
8
19
23
20
21
22
12 Optional tray
13 Output tray
14 Document feeder output support
15 Front cover handle
16 Scanner lid
17 Scanner glass
18 Paper width guides on a multipurpose tray
19 Multi-purpose support tray
20 Toner cartridge
21 Toner cartridge handle
22 Intermediate Transfer Belt (ITB)
23 Duplex jam cover
