3. Disassembly and Reassembly
3.4. Replacing the main SVC parts
NOTE
Before service, remove all toner cartridges and guide-cartridge.

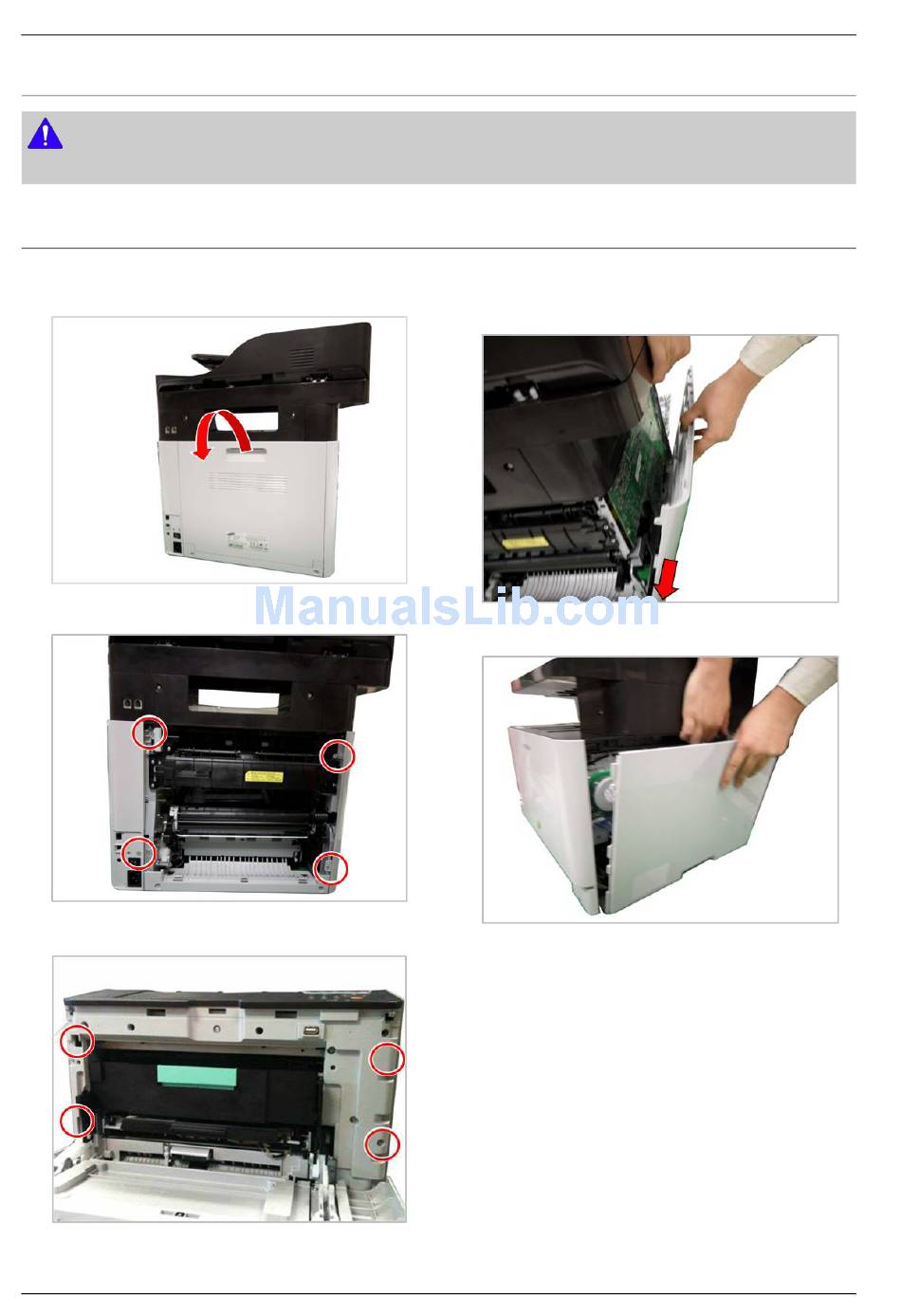

3.4.1. Left and Right cover
1. Open and remove the rear cover.
2. Remove 4 screws from the rear.
3. Open the front cover. Remove 4 screws.
3-11
4. Release the left cover by pushing it to the direction of
arrow.
5. Release the right cover.
