2. Product specification and description
2.2.5.10. SD-CARD PBA (CLX-626xFW only)

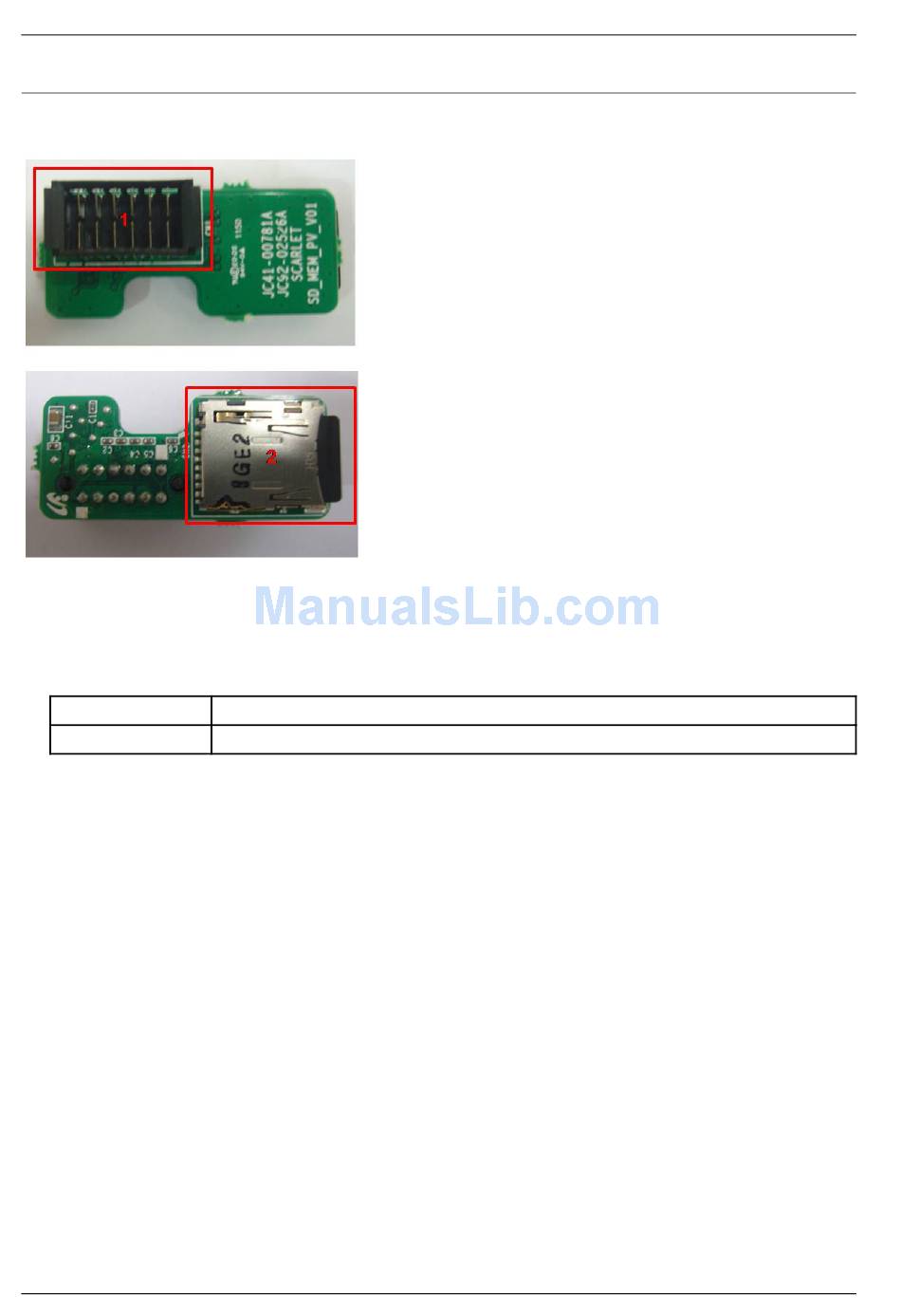

The SD-CARD PBA is the relay board between SD-MEMORY and main board.
•
Information
-
Part Code : JC92-02526A
-
PBA Name : SD-CARD
•
Connection
1
2
2-41
Interface connector to Main board
SD-Memory Connector
