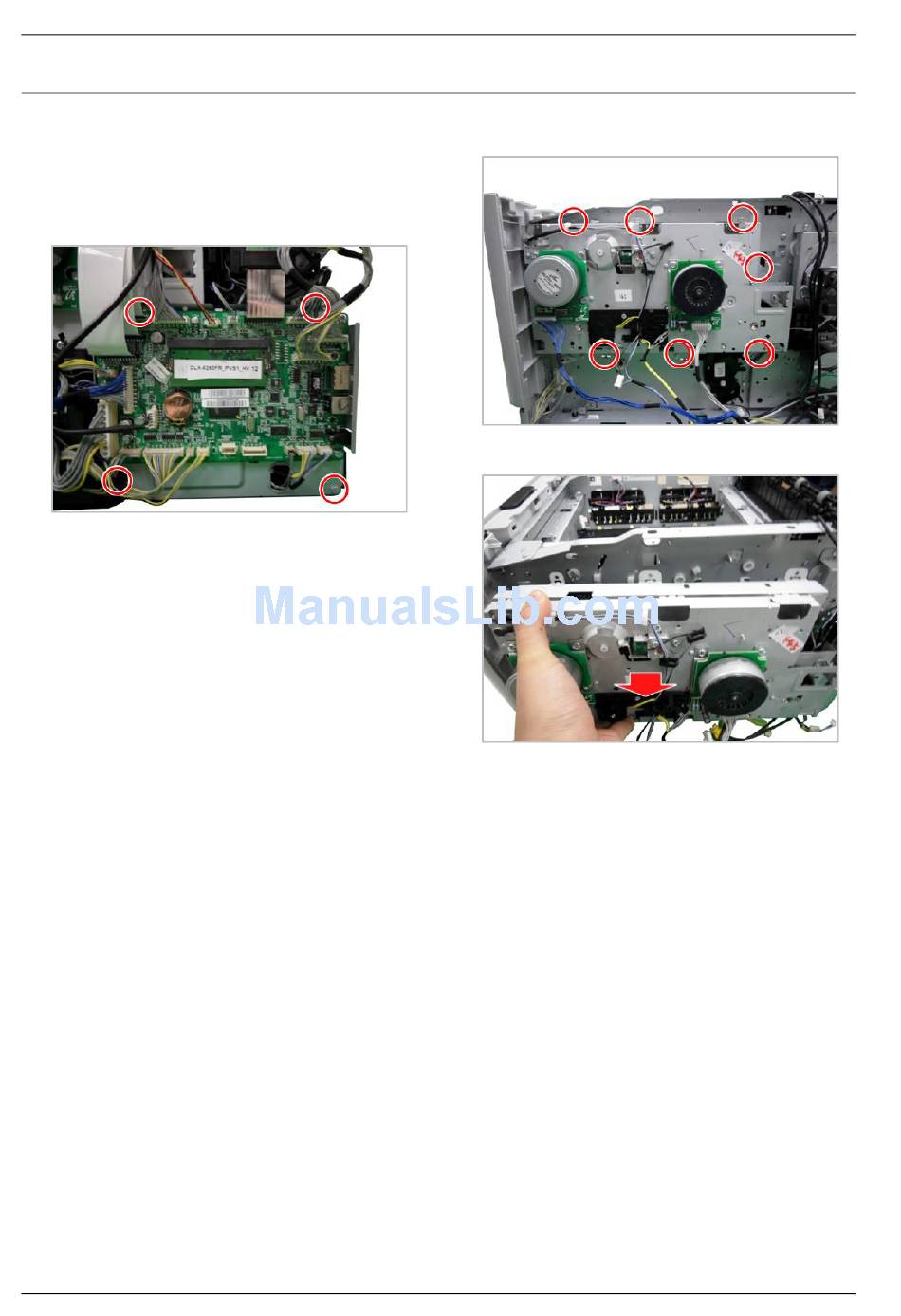

3. Disassembly and Reassembly
3.4.13. Main Drive Unit
1. Remove the right cover. (Refer to 3.4.1)
2. Remove the SMPS board. (Refer to 3.4.6)
3. Remove the main board bracket after removing 4
screws.
3-19
4. Remove 7 screws securing the main drive unit.
5. Release the main drive unit.
