7. ROUTER IP ADDR : This allows for the setup of the Network Router IP Address. If a router is
present on the local network, and it is to be used, this address must be consistent with the IP
Address Mask and the subnet of the modem. If no router is present, then the address should be
set to a foreign address. Broadcast and loop back addresses will not be allowed. Router not used
example: Router IP Address setting: 010.000.001.001.
8. MODEM EADDR : This displays the Modem (Unit) Ethernet Address. The Modem Ethernet
Address is configured at the factory. It is a unique Radyne equipment identifier Address.
Example: 0010650903EB
9. ETHER RATE : This displays the current Ethernet port data rate. If multiple rates are available,
then a selection can be made to specify the Ethernet port data rate (10BaseT). Example Ethernet
port Data Rate: 10 MBPS/HD
F.3

Network Configuration Summary

If the above steps were followed and the information was entered, then the following would be
the TCP / IP configuration summary for a 'no router specified' setup:
1. Boot Mode =
2. Bootp Server Tag =
3. Modem Host=
4. IP Address Mask =
5. Modem IP Address =
6. Server IP Address =
7. Router IP Address =
8. Modem Ethernet Address =
9. Ethernet Rate =
F.4

Ethernet Test

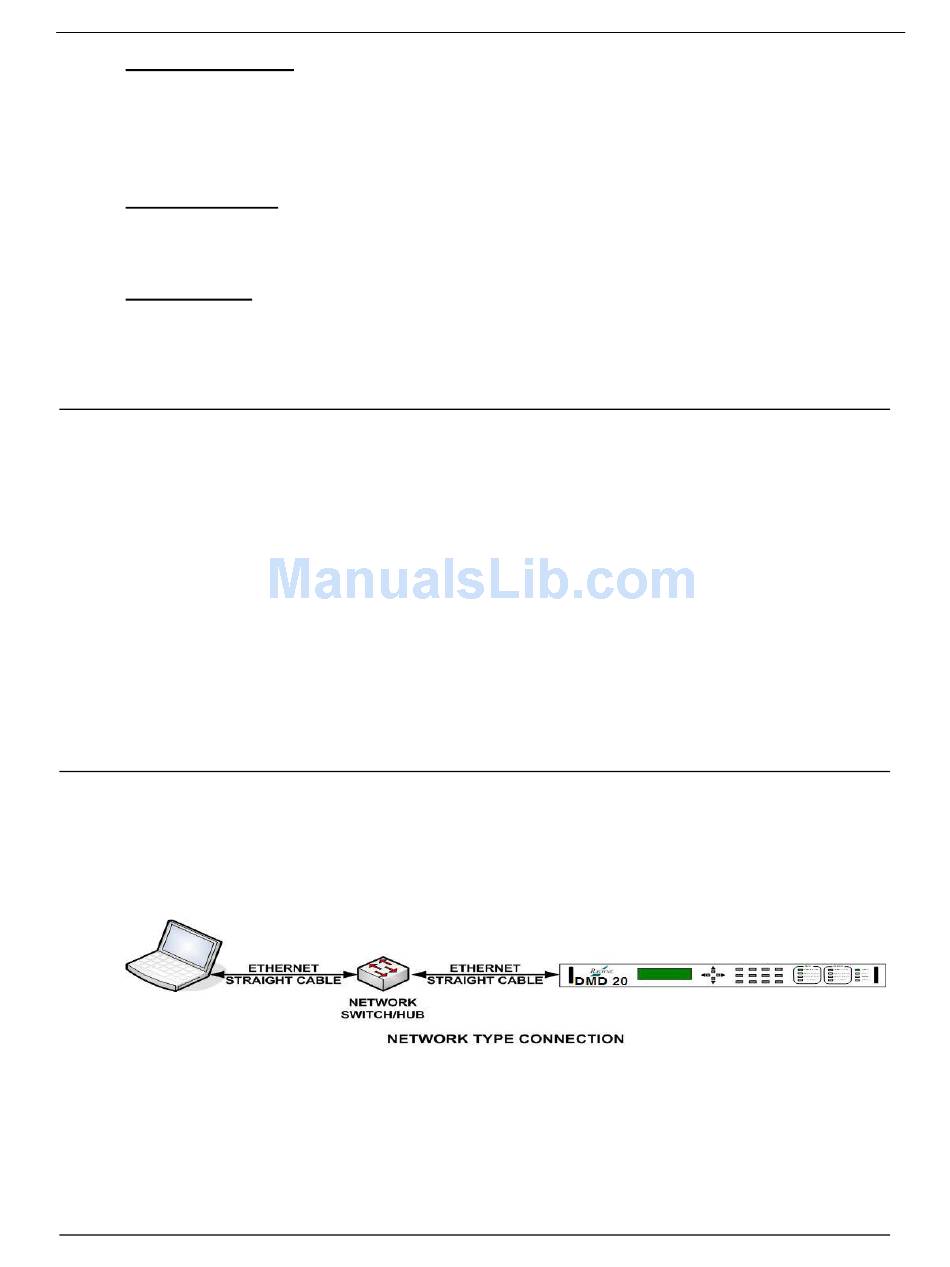

Connecting the Modem Ethernet Cable to a Network Link
1. Connect the Network Switch (Hub) to the Modem Ethernet port (J9) using standard RJ-
45 to RJ-45 10BaseT (CAT-5) Cables as shown below.
MN-DMD50– Revision 3
DMD20 Ethernet Network Connection
NON-VOL
206
DMD20
255.255.0.0
172.18.100.215
172.18.4.250
010.000.001.001
0010650903EB
10 MBPS/HD
TCP/IP Ethernet Setup
