DMD50 Universal Satellite Modem
7.22.16

ACG Output Voltage

The AGC Output Voltage is a function of the Input Power Level in dBm. The AGC Output
Voltage is found on the Alarm connector Pin 14 of J15.
MN-DMD50– Revision 3

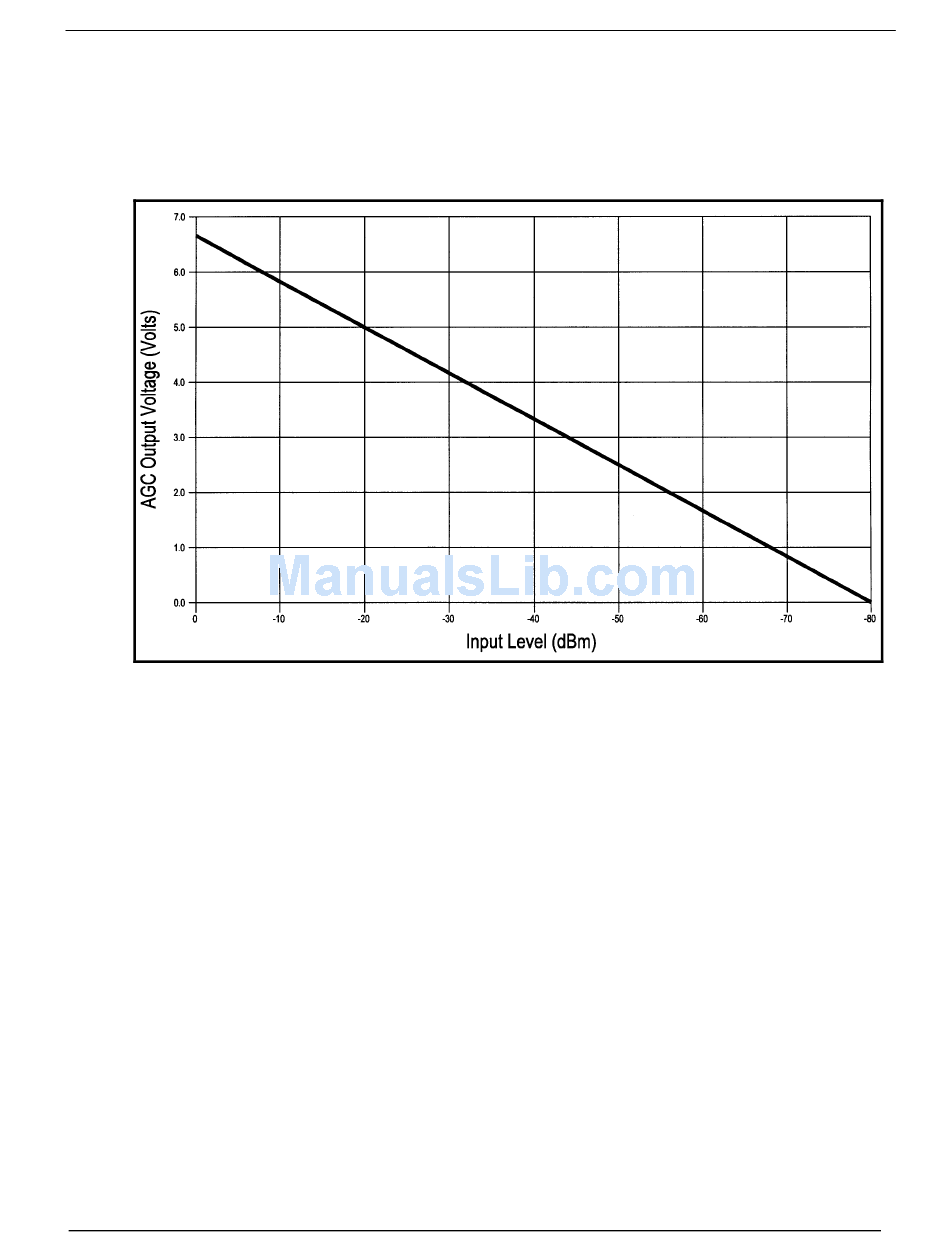

Figure 7-13. AGC Voltage Monitor
Technical Specifications
7–30
