D.7 Web Page Appearance

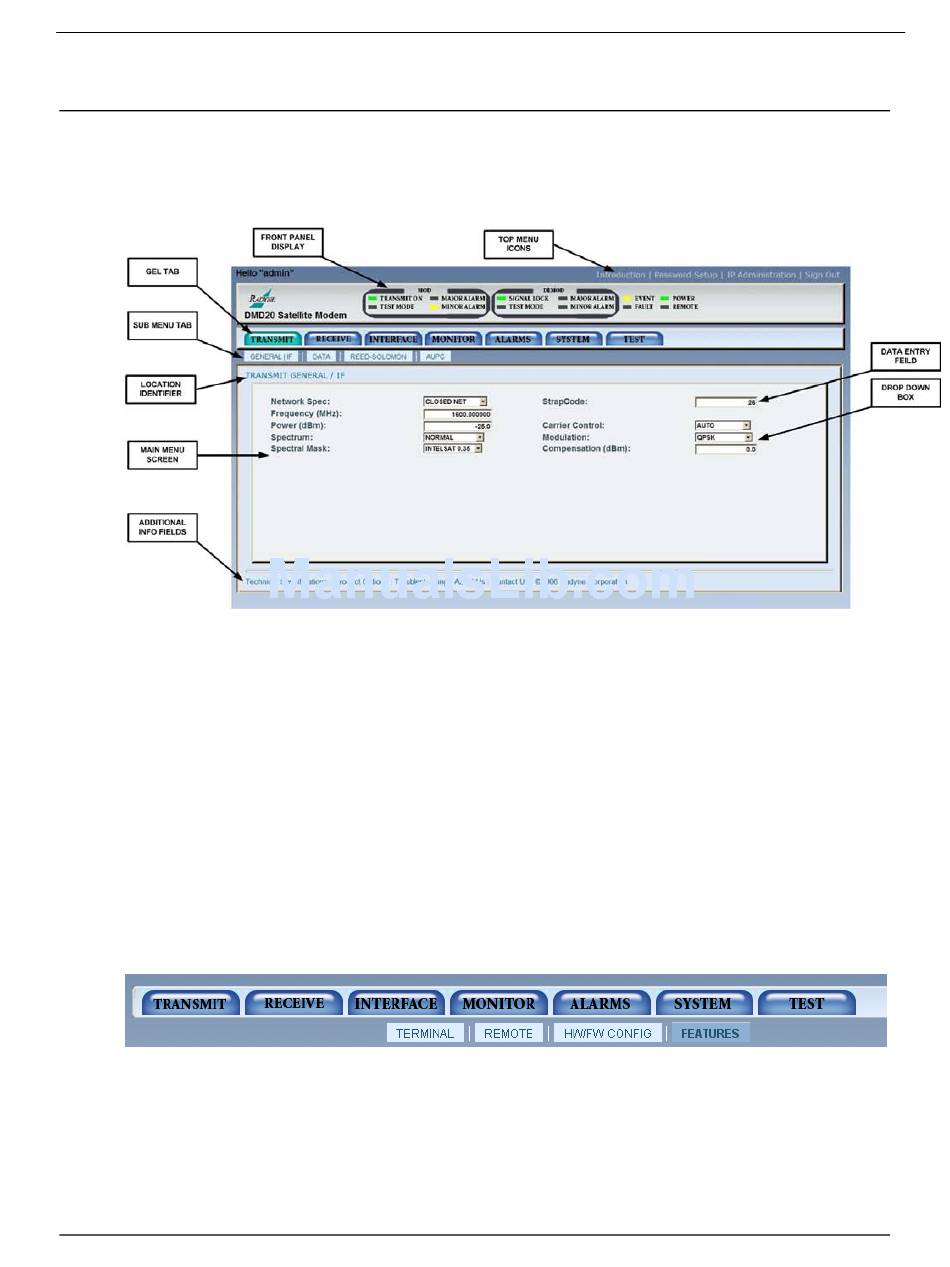

This page displays the Monitor and Control section of the modem web interface. With a front
panel look and feel, and an appearance that resembles the DMD50 layout.
The top of the web page displays an alarm section reflecting the current front panel status of the
modem. This block will be updated immediately whenever status is changed.
The navigation scheme consists of gel tabs that correspond to the front panel top-level menu
selections. When the mouse is dragged over a tab, it gets highlighted with a rollover effect and a
sub-level of selections is revealed. These correspond to the front panel sub-menus.
Below the menu gel tabs, the main menu section will reflect the current programmed control
state. At the top of the page, breadcrumb location identifier reminds the user how the page is
selected (Location Identifier).
There is a simple navigation scheme that consists of gel tabs centralized on the main page.
