CONTAINERIZED KITCHEN (CK)
OPERATION UNDER USUAL CONDITIONS
Roof Arch
"T" vertical (left side)
"T" vertical (right side)
"X" vertical
Arch Spacer
Adjustable spacer (2 sections)
Curved spacer (used over serving wing
doors)
The wing floor must be level with the center core floor to ensure a
correct fit for the roof arches.
3. Assemble a roof arch and an "X" vertical as shown in Figure 6.
4. Position one or more personnel in the middle of the wing to push up the fabric cover and
support it by hand.
5. Move onto the wing while holding the arch frame assembly.
The horizontal stubs on the verticals must face toward the inside.
6. Starting with the center interior arch location, with other personnel supporting the fabric,
rotate the arch frame assembly to insert the upper end of the arch into the arch cup at the
header, as shown in Figure 7.
TM 10-7360-226-13&P
Table 1. Contents of Shelter Frame Bags.
Component
NOTE
ROOF ARCH

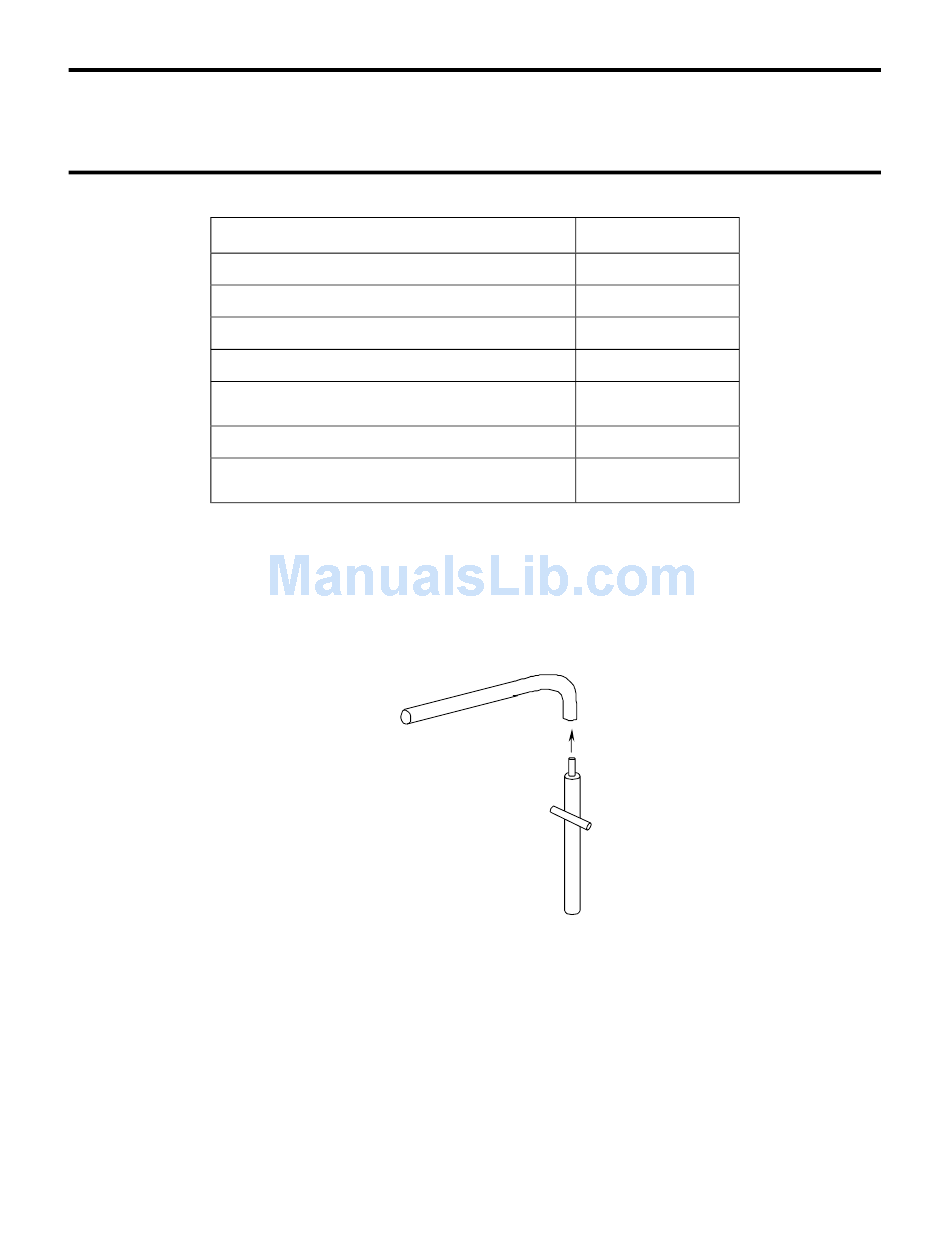

Figure 6. Center Arch Frame.
NOTE
0006 00-8
Qty
3 (prep side)
2 (serving side)
1 (prep side)
" VERTICAL
"X
0006 00
5
1
1
3
2
