TM 10-7360-226-13&P
CONTAINERIZED KITCHEN (CK) 0020 00
UNIT MAINTENANCE PROCEDURES
24 VDC JUNCTION BOX
FUEL LINE
CASTER

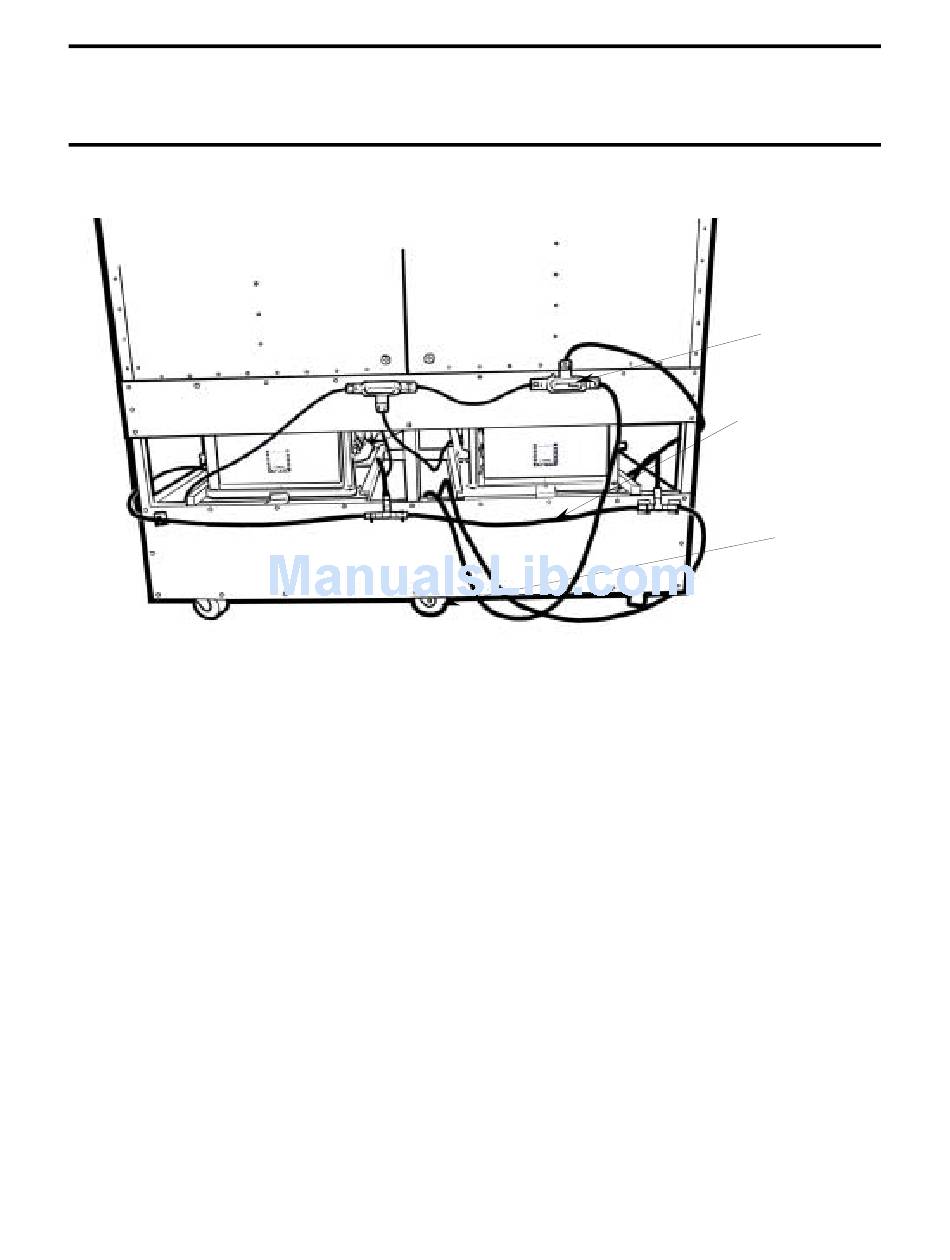

Figure 2. Dual Oven Assembly Fuel Line Maintenance.
REPAIR
MBU Cable Assembly: To replace a 24 VDC cable, remove the cover of the junction box,
label and disconnect the wires and pull the cable through the junction box. Cut a new cable to
the desired length (WP 0045 00 Item 1) and attach a connector to it. Slip the new cable down
through the junction box, connect the wires and replace the junction box cover.
24 VDC Connector: To replace a damaged connector, disassemble the connector shell. Label
and disconnect the two wires. Attach the wires to the new connector and assemble it.
MBU: Refer to TM 10-7310-281-13&P for MBU repair procedures.
END OF WORK PACKAGE
0020 00-3/4 Blank
