CONTAINERIZED KITCHEN (CK)
UNIT MAINTENANCE PROCEDURES
Water Heater: See Figure 2. To replace the water heater, disconnect the power cord at the
bottom of the tank. Allow the water in the tank to cool, open the drain valve and drain the water
into an empty bucket or drain system. Remove the locking nuts from the mounting bracket at
the side of the sink assembly. Remove the supporting bracket under the water heater and lift
the water heater out of the sink assembly.
Remove and discard the curved bracket attached to the side of the replacement water heater.
Remove this same bracket from the side of the bad water heater and install it onto the
replacement water heater.
WATER HEATER
POWER CORD
Install the replacement water heater, reinstall the mounting hardware, hoses, and the electrical
connector.
Pump Assembly: See Figure 2. To replace the pump assembly, label the wires and
disconnect the power cord at the junction box on the pump assembly mounting bracket.
Remove the four screws from the pump assembly mounting plate. Retain the rubber mounting
spacers.
Install the replacement pump, the four mounting spacers and screws on to the mounting plate.
Reconnect the power cord to the junction box.
TM 10-7360-226-13&P

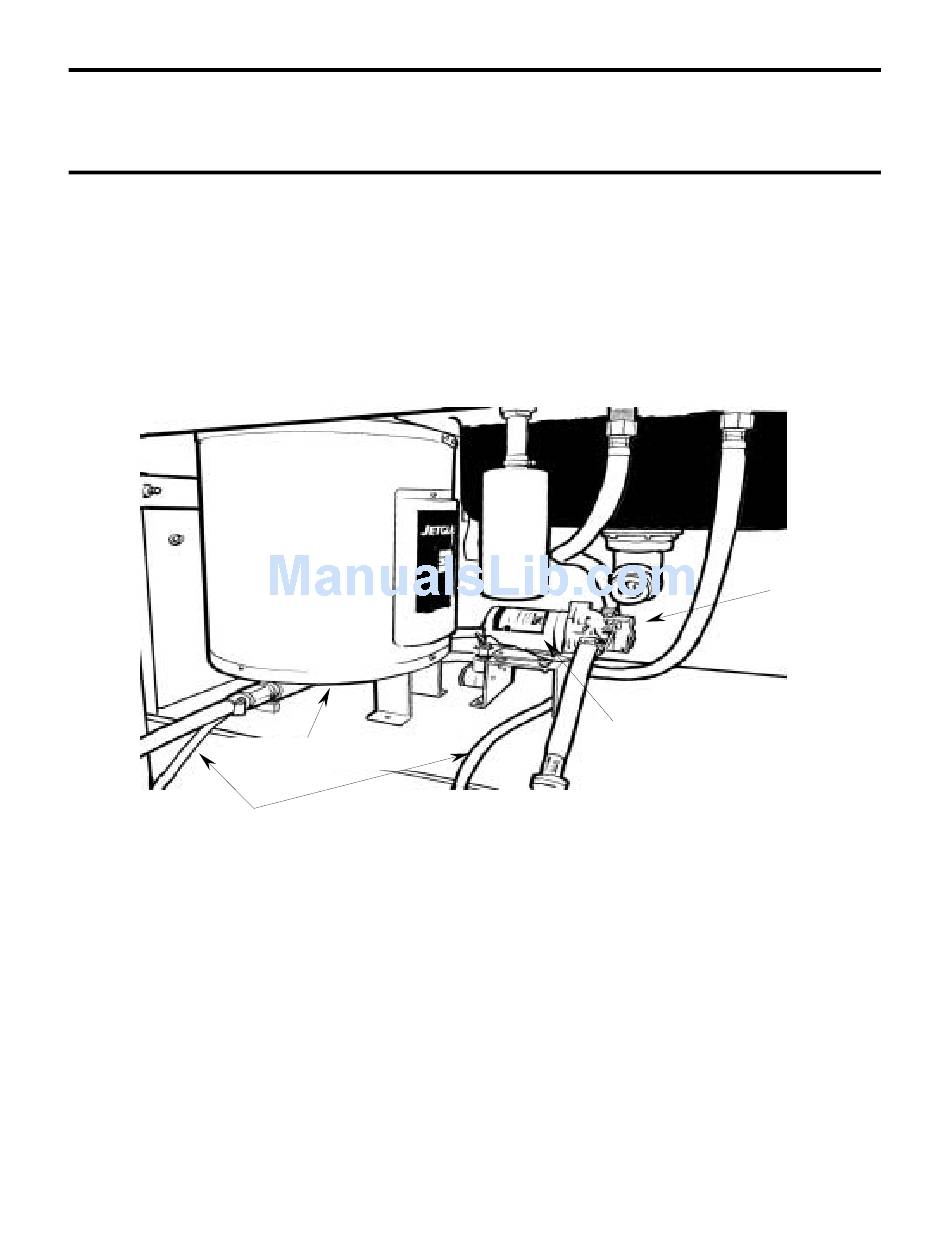

Figure 2. Sink Assembly Maintenance.
0024 00-3
PRESSURE SWITCH
PUMP ASSEMBLY
0024 00
